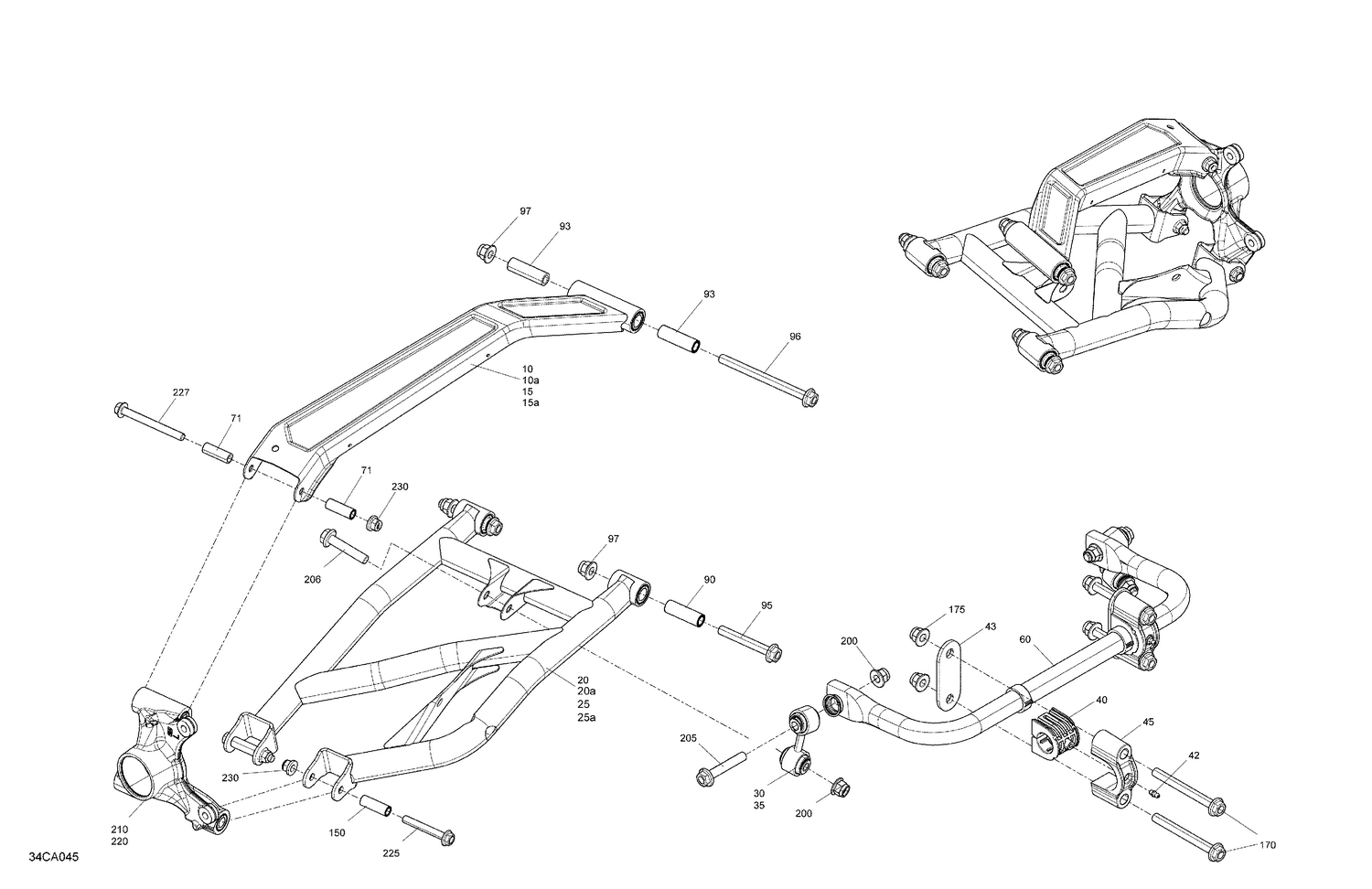

05- Suspension - Rear - Built After January 18th 2021 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Manta Green, LH Upper Suspension Arm
706003719
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a
LH Upper Suspension Arm Ass'y With Bushing
706003715
Superseded by 715010684
|
$249.99 | ||
|
Unavailable |
|||
|
#15
Manta Green, RH Upper Suspension Arm
706003720
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#15a
RH Upper Suspension Arm Ass'y With Bushing
706003716
Superseded by 715010695
|
$249.99 | ||
|
Unavailable |
|||
|
#20
Manta Green, LH Lower Suspension Arm
706003729
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#20a
LH Lower Suspension Arm Ass'y With Bushing
706003727
Superseded by 715010704
|
$249.99 | ||
|
Unavailable |
|||
|
#25
Manta Green, RH Lower Suspension Arm
706003730
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#25a
RH Lower Suspension Arm Ass'y With Bushing
706003728
Superseded by 715010711
|
$249.99 | ||
|
Unavailable |
|||
|
#30
Sway Bar Double Link
706003004
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Sway Bar Double Link
706003003
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706004266
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#42
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Plate Support
706002977
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
Clamp
706002970
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
Sway Bar Ass'y
706003475
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Not Available As Spare Part - Suspension Arm Bushing
|
|||
|
Unavailable |
|||
|
#90
Suspension Arm Bushing
706003528
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#93
Suspension Arm Bushing
706003709
Superseded by 706004829
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#95
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#96
Flange Screw M12 X 145
250000861
|
$6.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#97
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
Not Available As Spare Part - Suspension Arm Bushing
|
|||
|
Unavailable |
|||
|
#170
Screw Flange M12 X 115
250000860
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#175
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#200
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#205
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#206
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
LH Rear Knuckle Anchorage Ass'y
715008057
Superseded by 715010560
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
RH Rear Knuckle Anchorage Ass'y
715008058
Superseded by 715010561
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#225
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#227
Hex Flange Screw DIN.6921 - Call your local BRP dealership
230600046
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#230
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
