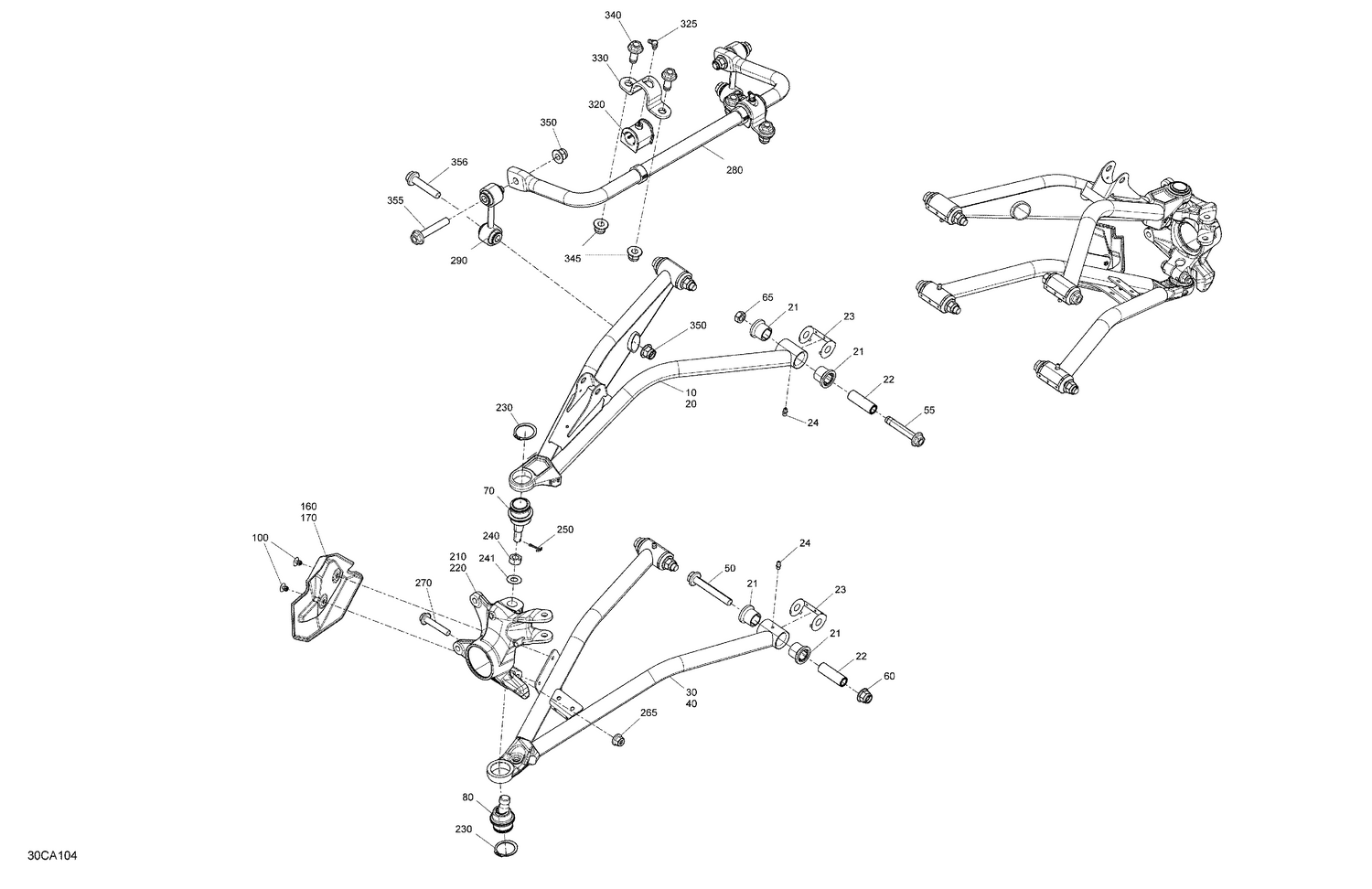

05- Suspension - Front - Built Before January 17th 2021 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Manta Green, LH Upper Suspension Arm
706204059
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Manta Green, RH Upper Suspension Arm
706204060
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Suspension Arm Bushing
706204409
|
$9.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Interior Bushing
706202257
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Wear Plate
706202300
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Manta Green, LH Lower Suspension Arm
706204028
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Manta Green, RH Lower Suspension Arm
706204029
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#55
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
Unavailable |
|||
|
#60
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#65
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#70
Ball Joint
706203084
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#160
RH CV joint Guard
706202135
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#170
LH CV joint Guard
706202134
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#210
LH Front Knuckle
706202842
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
RH Front Knuckle
706202844
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#230
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#265
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Hex. Flange Screw M10 X 55
207605546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#280
Sway Bar Ass'y
706203649
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
Sway Bar Double Link
706202937
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#320
Stabilizer Bar Bushing
706204414
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#325
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#330
Clamp
706203437
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#340
Hex. Flange Screw DIN.6921
250000951
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#345
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#350
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#355
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#356
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
