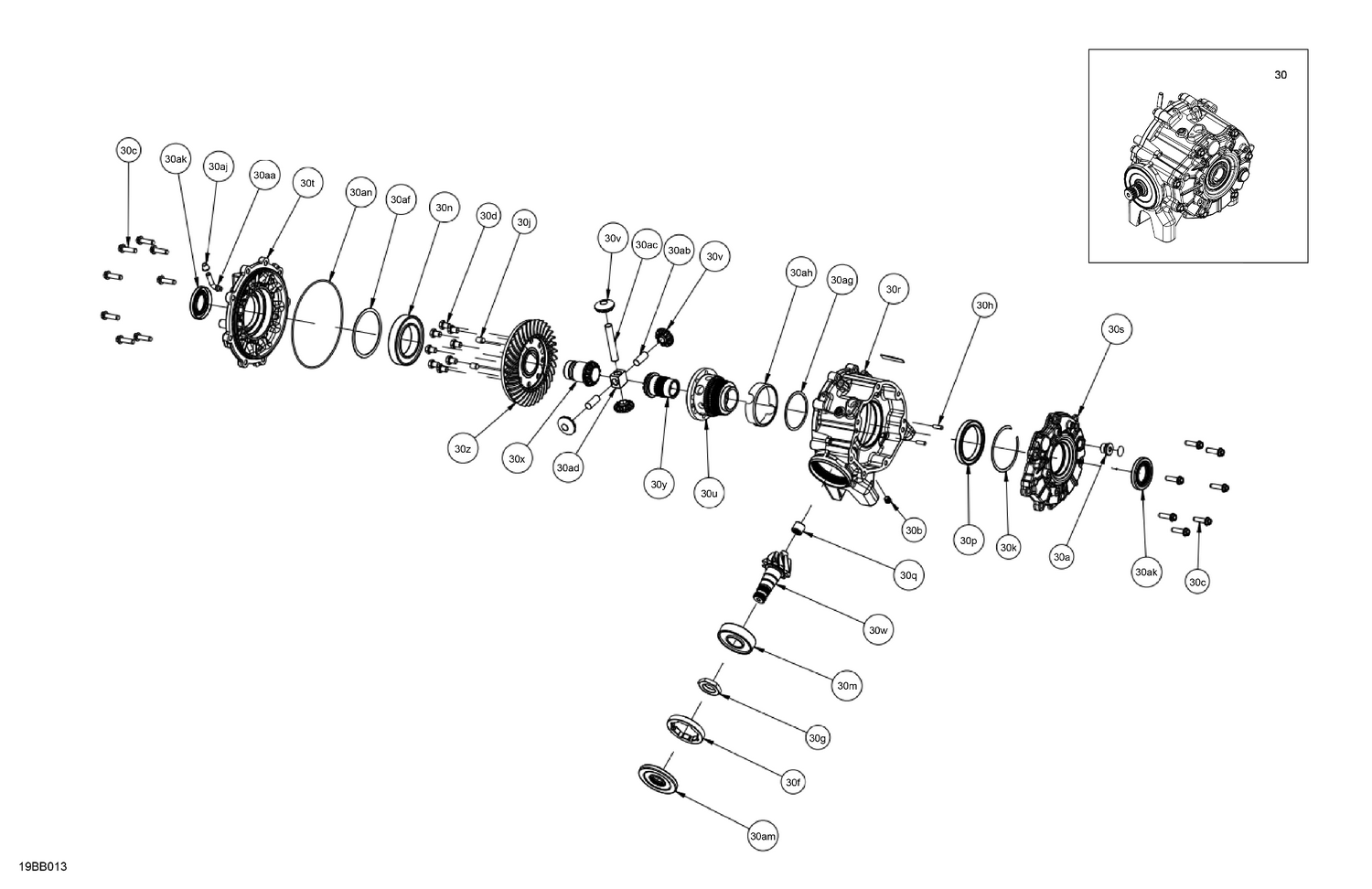

04- Drive - Front - Differential Parts - Model With Abs Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Front Differential Ass'y
705402817
Superseded by 705403424
|
$1,339.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Fill Level Plug
705501889
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Fill Level Plug M10
715900563
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Bolt
705501886
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#30d
Hex Screw 3/8 X 0.500
715900561
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#30f
Nut M75 X 1.5
705401819
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30g
Nut M27 X 1.5
705401820
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30h
Dowel Pin
715900559
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#30j
Dowell Pin
715900618
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30k
Retainin Ring
715900558
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30m
Ball Bearing
705401821
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30n
Ball Bearing 60 X 95 X 18
715900556
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#30p
Ball Bearing 65 X 85 X 10
715900554
|
$94.49 | ||
|
Available to order. Add to View Price |
|||
|
#30q
Needle Bearing
715900634
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30r
Mid Case
715900675
|
$312.49 | ||
|
Available to order. Add to View Price |
|||
|
#30s
RH Cover
715900685
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#30t
LH Cover
715900686
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#30u
Housing
715900617
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#30v
Pinion 10T
715900548
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#30w
Pinion 10 T
715900635
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#30x
Gear 14T
715900546
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#30y
Gear 14T
715900545
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#30z
Gear 36T
715900676
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#30aa
Vent Valve
705401935
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30ab
Pinion Pin 0.5 X 1.250
715900543
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ac
Pinion Pin 0.5 X 3.000
715900542
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ad
Coupler, Pin
715900541
|
$65.49 | ||
|
Available to order. Add to View Price |
|||
|
#30af
Shim 74.50 X 66.00
715900539
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ag
Shim 3.735 X 3.300
715900538
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ah
Cross Pin Retainer
715900535
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#30aj
Vent Cap 5/16
715900533
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#30ak
Oil Seal
715900531
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#30am
Oil Seal, Triple Lip 25 X 79 X 8
705401827
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30an
O-Ring
715900530
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
