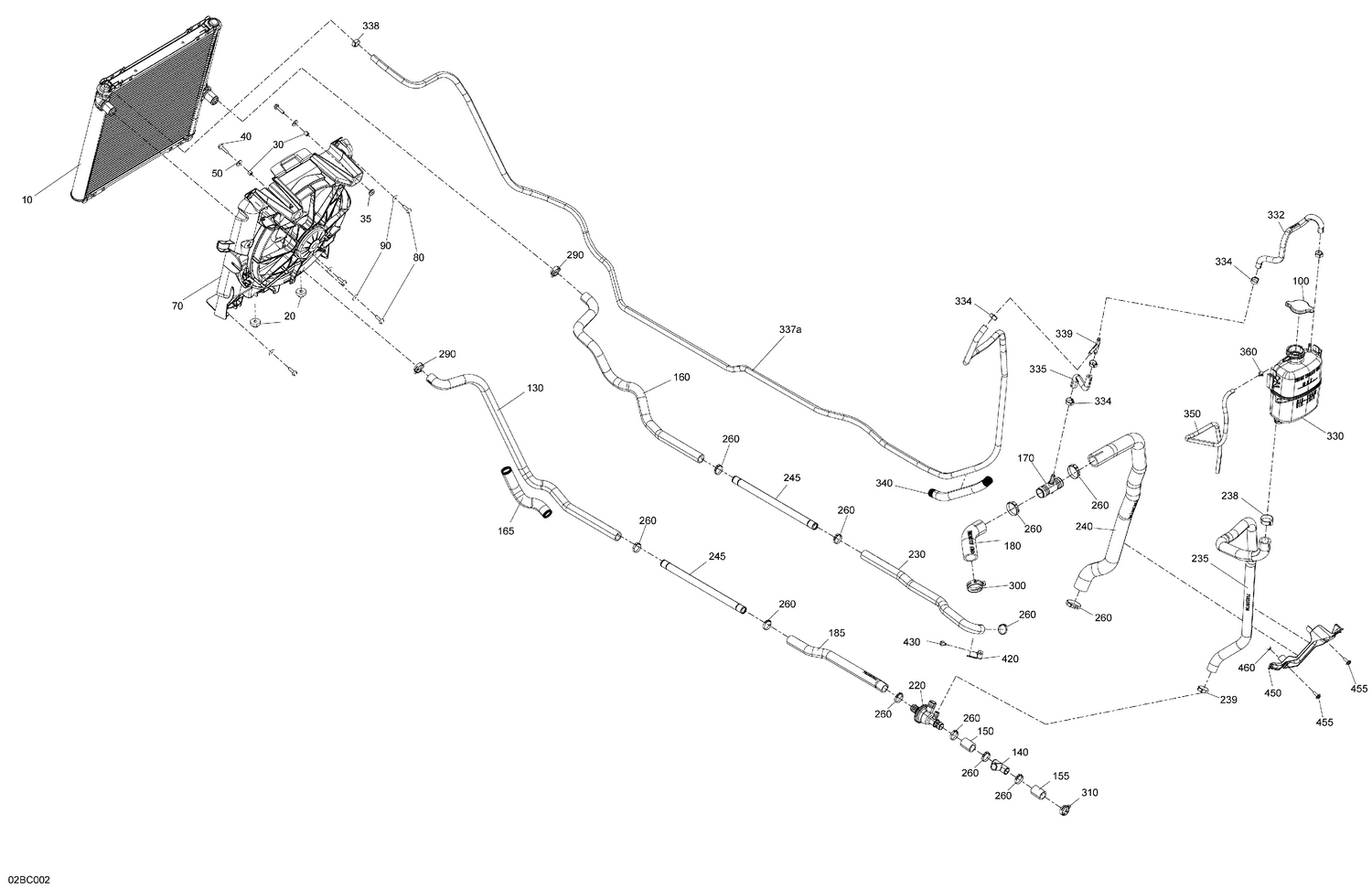

02- Engine - Cooling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Radiator
709200703
|
$360.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Grommet
709200948
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bushing
293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#70
Fan Ass'y
709200665
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Unavailable |
|||
|
#100
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Radiator Inlet hose
709200793
|
$63.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
T-Fitting
509001313
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Pump Hose
709200672
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#155
Pump Hose
709200672
|
$9.79 | ||
|
Unavailable |
|||
|
#160
Radiator Outlet Hose
709200797
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#165
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#170
T-Fitting
509000510
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#180
Intermediate Outlet Hose
709200729
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#185
Intermediate Inlet Hose
709200794
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
Thermostat Housing
709200967
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#230
Radiator Hose
709200795
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#235
Coolant Tank Hose
709200736
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#238
Oetiker Gear Clamp
293650165
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#239
Oeticker Gear Clamp, 25.6-706R
509000442
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#240
Thermostat Inlet Hose
709200796
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#245
Heater Tubing
709200664
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#260
Gear Clamp
509000162
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#290
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#300
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Unavailable |
|||
|
#310
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Unavailable |
|||
|
#330
Coolant Tank
709200998
Superseded by 709201323
|
$80.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#332
Bleeding Hose
709200799
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#334
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#335
Bleeding Hose
709200798
Superseded by 709200717
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#337a
Was 415129508 Bleeder Hose
219704416
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#338
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#339
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#340
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#350
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#360
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#420
Support
709200721
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#430
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#450
Support
709200746
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#455
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#460
Bushing
709200761
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
