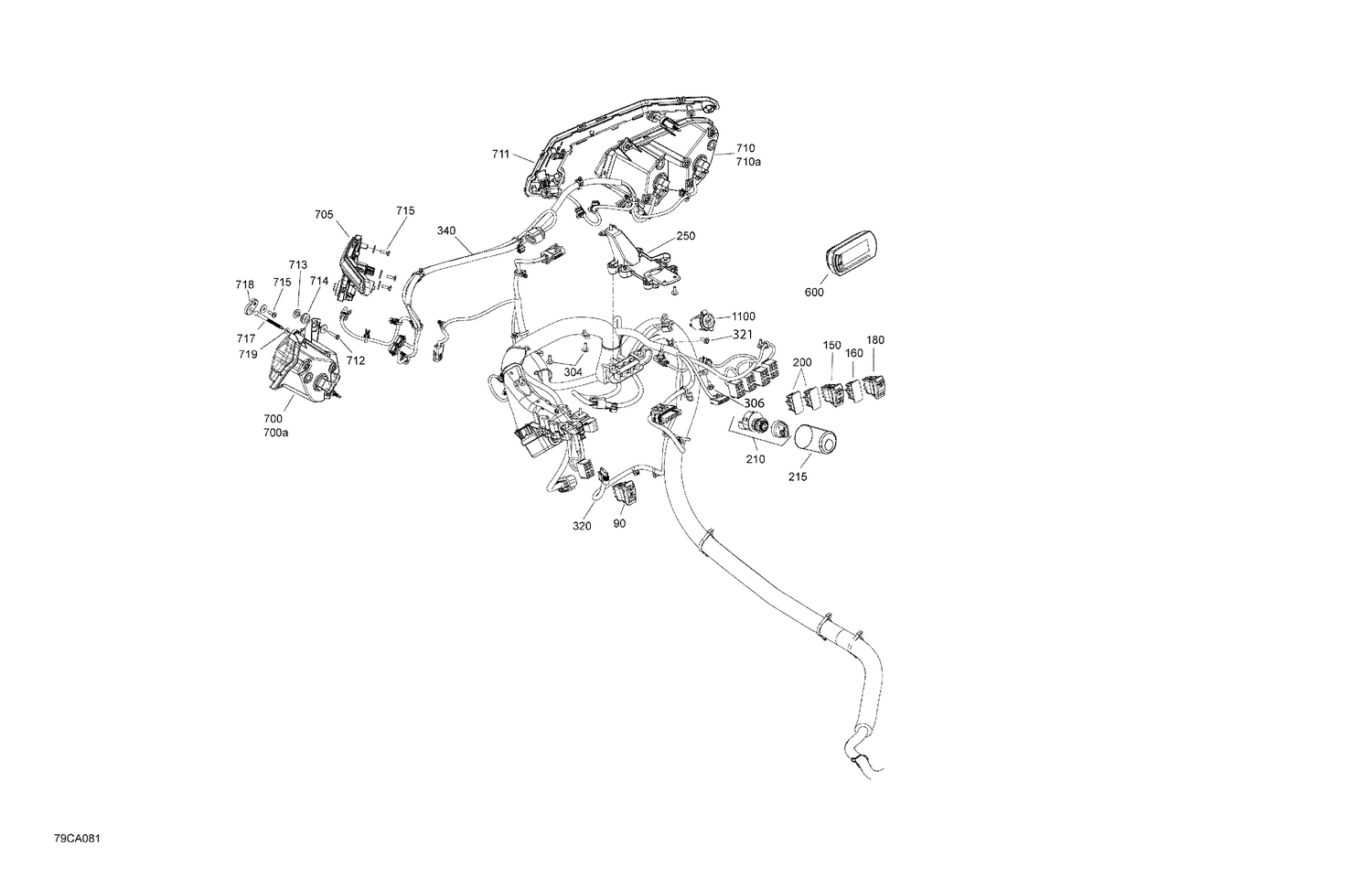

08- Electric - Front System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#90
Light Switch
710004492
|
$47.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Switch 2X4
710005489
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Plug Carling
710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#180
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#200
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#210
Inter Allumage *Ignition
710004198
Superseded by 710007870
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#215
Key Switch Protector
710005739
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#250
Housing Support
710005672
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#304
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#306
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#321
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#320
Trottle Pedal Harness
710005929
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Front Wiring Harness
710007441
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#600
Multifunction Compact Gauge
710007407
|
$379.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
LH Headlamp
710006912
Superseded by 710008230
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#705
LH Fascia Trim
705011485
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
RH Headlamp
710006913
Superseded by 710008231
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#710a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Unavailable |
|||
|
#711
RH Fascia Trim
705011486
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#712
Hex. Flange Screw K50 X 2.24 X 25
241152540
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#713
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#714
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#715
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#717
Ajustment Screw
710005837
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#718
Adjustment Guide
710005097
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#719
O-Ring
293300192
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#1100
12V Power Outlet
710005374
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
