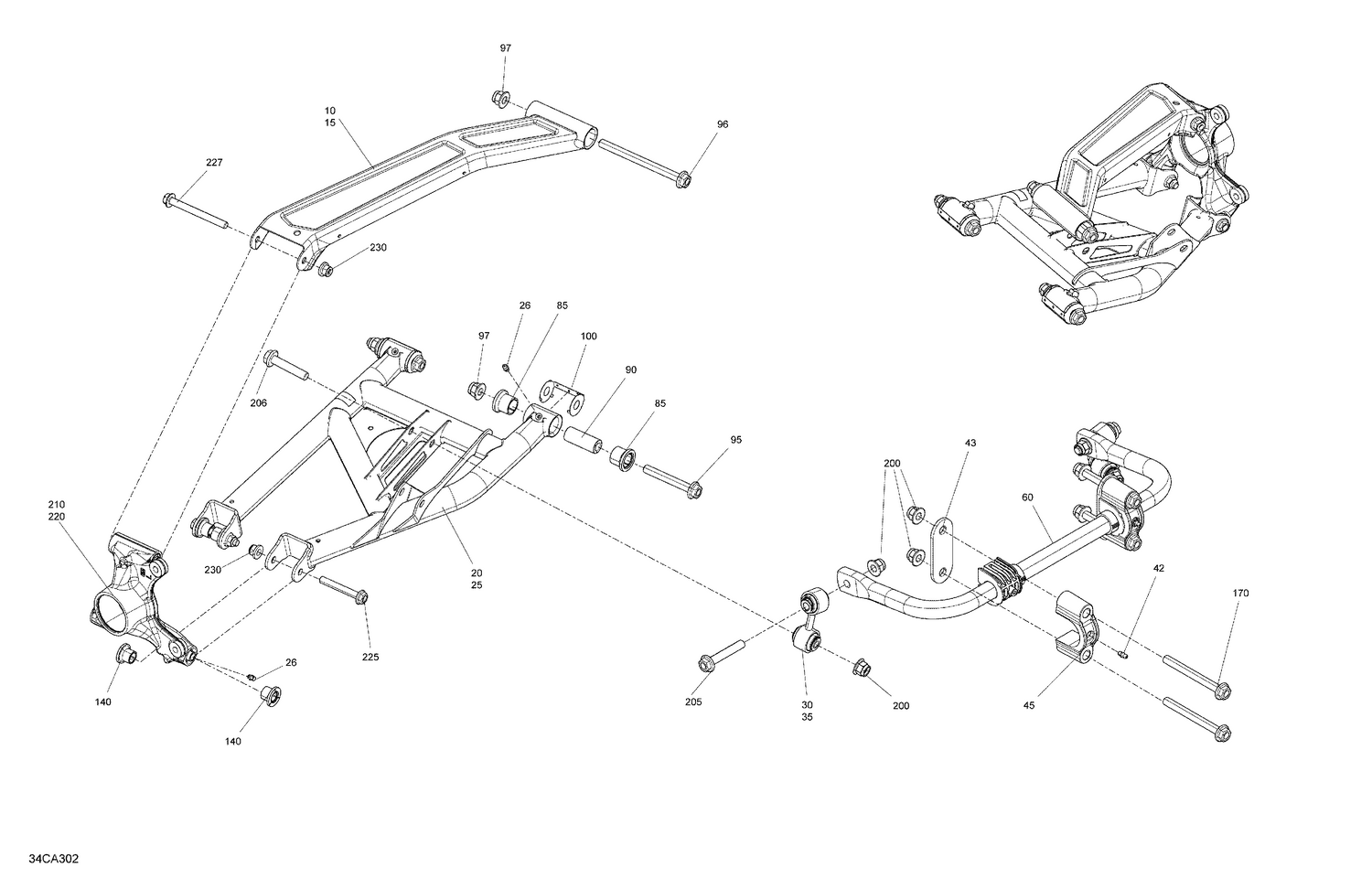

05- Suspension - Rear - Built Before January 17th 2021 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Black LH Rear Upper Susp Arm Ass'y
715006131
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Black RH Rear Upper Susp Arm Ass'y
715006132
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LH Lower Suspension Arm
706003767
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RH Lower Suspension Arm
706003768
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Sway Bar Double Link
706003004
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Sway Bar Double Link
706003003
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Grease Fitting
408200700
|
$3.59 | ||
|
Unavailable |
|||
|
#43
Plate Support
706002977
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
Clamp
706002970
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
Sway Bar Ass'y
706002972
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Suspension Arm Bushing
706204409
|
$9.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
Interior Bushing
706202257
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#95
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#96
Flange Screw M12 X 145
250000861
|
$6.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#97
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Wear Plate
706202300
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#140
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#170
Screw Flange M12 X 115
250000860
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#200
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#205
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#206
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
LH Rear Knuckle Ass'y
715006137
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
RH Rear Knuckle Ass'y
715006138
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#225
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#227
Hex Flange Screw DIN.6921 - Call your local BRP dealership
230600046
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#230
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
