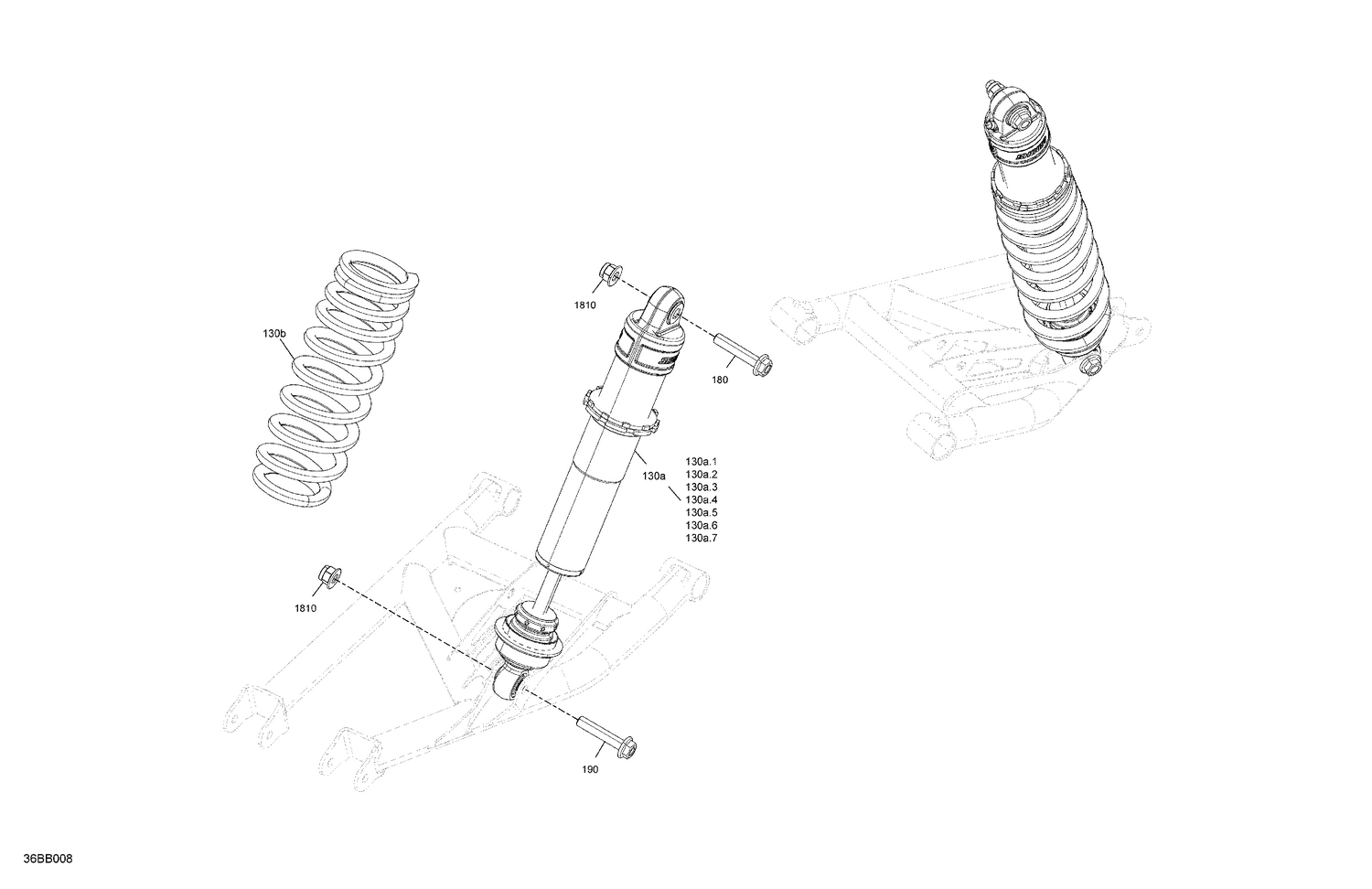

05- Suspension - Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130a
Rear Shock Absorber
706004336
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a.1
Spherical Bearing
715900790
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a.2
Collar
715900791
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#130a.3
O'Ring
715900792
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#130a.4
Stopper Ring
715900793
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#130a.5
Spring Seat
715900794
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a.6
Stopper Ring
715900795
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#130a.7
Ball Joint
706004078
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#130b
Can-Am Red, Rear Compression Spring
706004462
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#180
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
Unavailable |
|||
|
#1810
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
