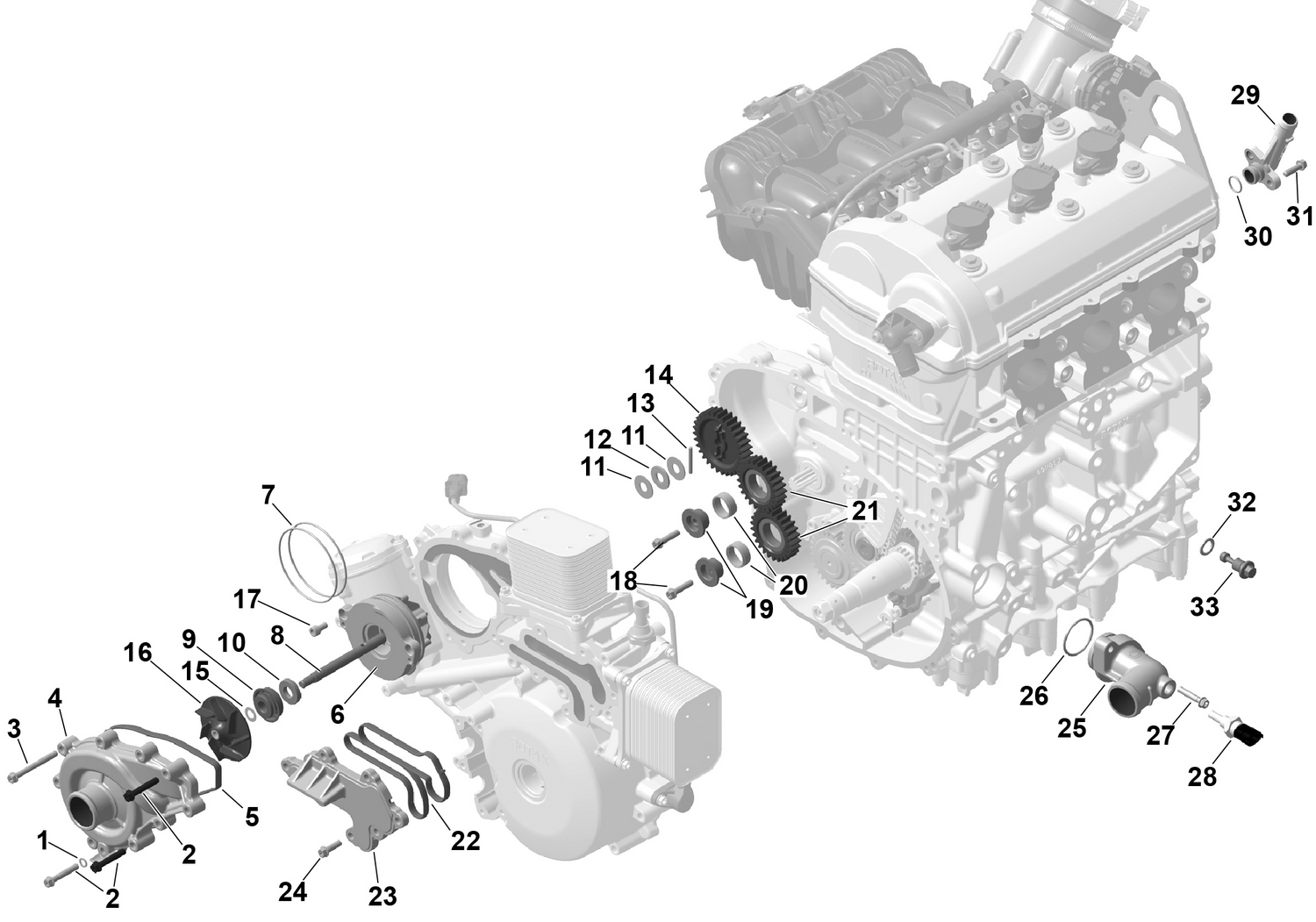

01- Rotax - Engine Cooling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Seal Washer
420230415
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M6 X 55
420440702
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
Water Pump Cover
420222071
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket
420230015
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Water Pump Ass'y
420281502
Superseded by 420281502
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-Ring
420931380
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#9
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#10
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#11
Thrust Washer
420626790
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
Needle Bearing
420632305
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Needle Pin
420232432
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
Waterpump Gear 31 Teeth
420234283
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Thrust Washer
420227945
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
Impeller
420922804
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
Allen Screw M6 X 12
420840032
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M6 X 25
420440234
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
Graduated Spacer
420947398
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Needle Bearing
420232664
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Intermediate Gear 25 Teeth
420234058
|
$99.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Gasket
420430675
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Water Duct Cover
420810475
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
Bent Outlet Socket
420822085
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-Ring
420230911
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
Torx Flange Screw M6 X 30
420440647
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Temperature Sensor
420222426
Superseded by 278002895
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Bent Outlet Socket
420822082
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-Ring
420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Unavailable |
|||
|
#32
Copper Washer
420250640
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Plug Screw M12X1.5
420641320
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
