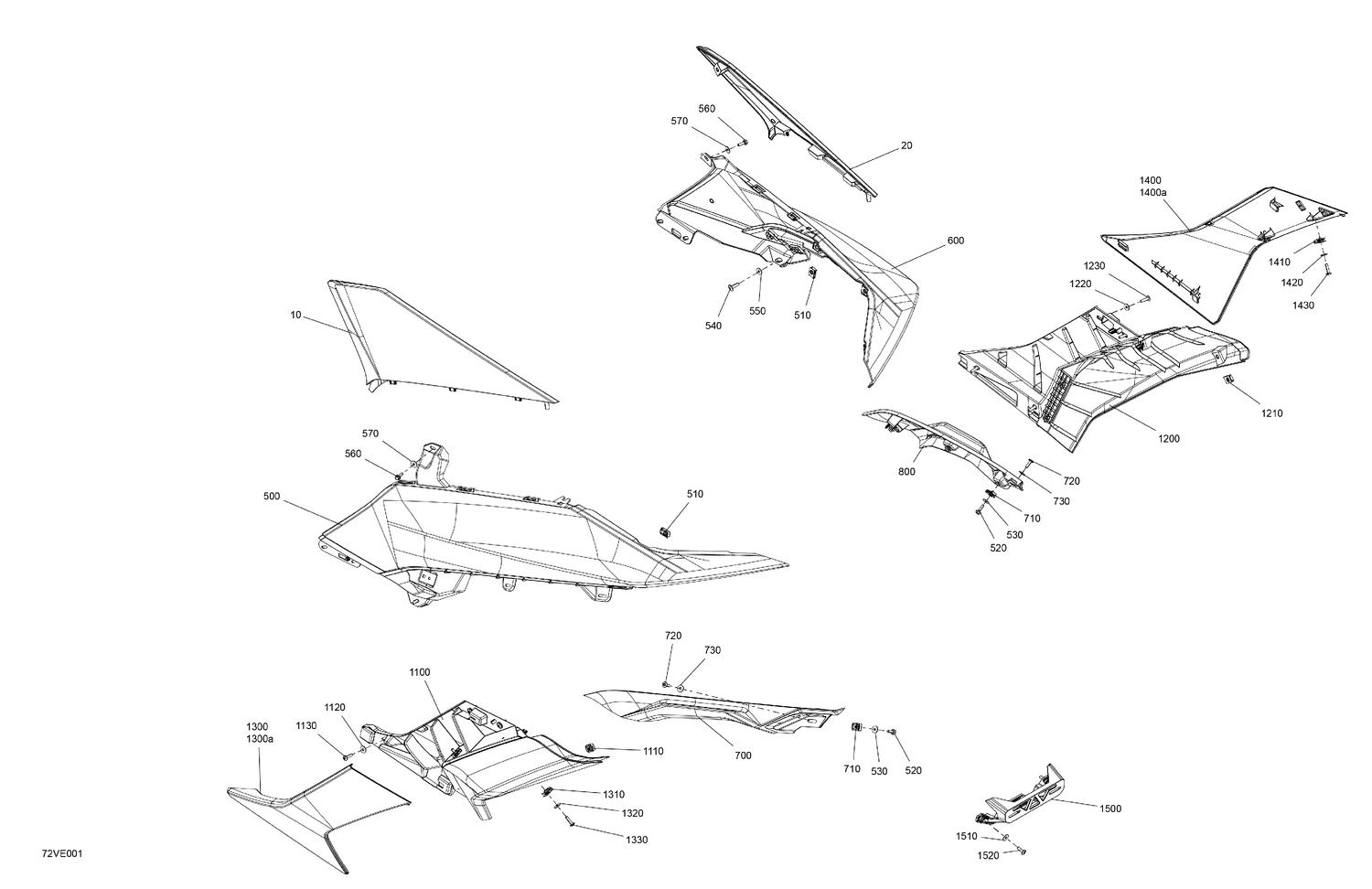

07- Body - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Deep Black, LH Exterior Body Panel
708303784
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Deep Black, RH Exterior Body Panel
708303785
|
$109.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Carbon Black, LH Rear Fender
708304310
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#520
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#530
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#550
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#560
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Unavailable |
|||
|
#570
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#600
Carbon Black, RH Rear Fender
708304311
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#700
LH Rear Mud Guard
705015534
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#720
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#730
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#800
RH Rear Mud Guard
705015535
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#1100
LH Rear Mud Guard
705016469
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#1110
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#1120
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1130
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#1200
RH Rear Mud Guard
705016470
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#1210
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#1220
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1230
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#1300
Carbon Black, LH Lower Body Panel
705015966
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#1300a
LH Lower Molded Body Panel
705015540
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#1310
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#1320
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1330
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#1400
Carbon Black, RH Lower Body Panel
705015967
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#1400a
RH Lower Molded Body Panel
705015541
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#1410
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#1420
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1430
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#1500
License Plate Support
705017197
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1520
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
