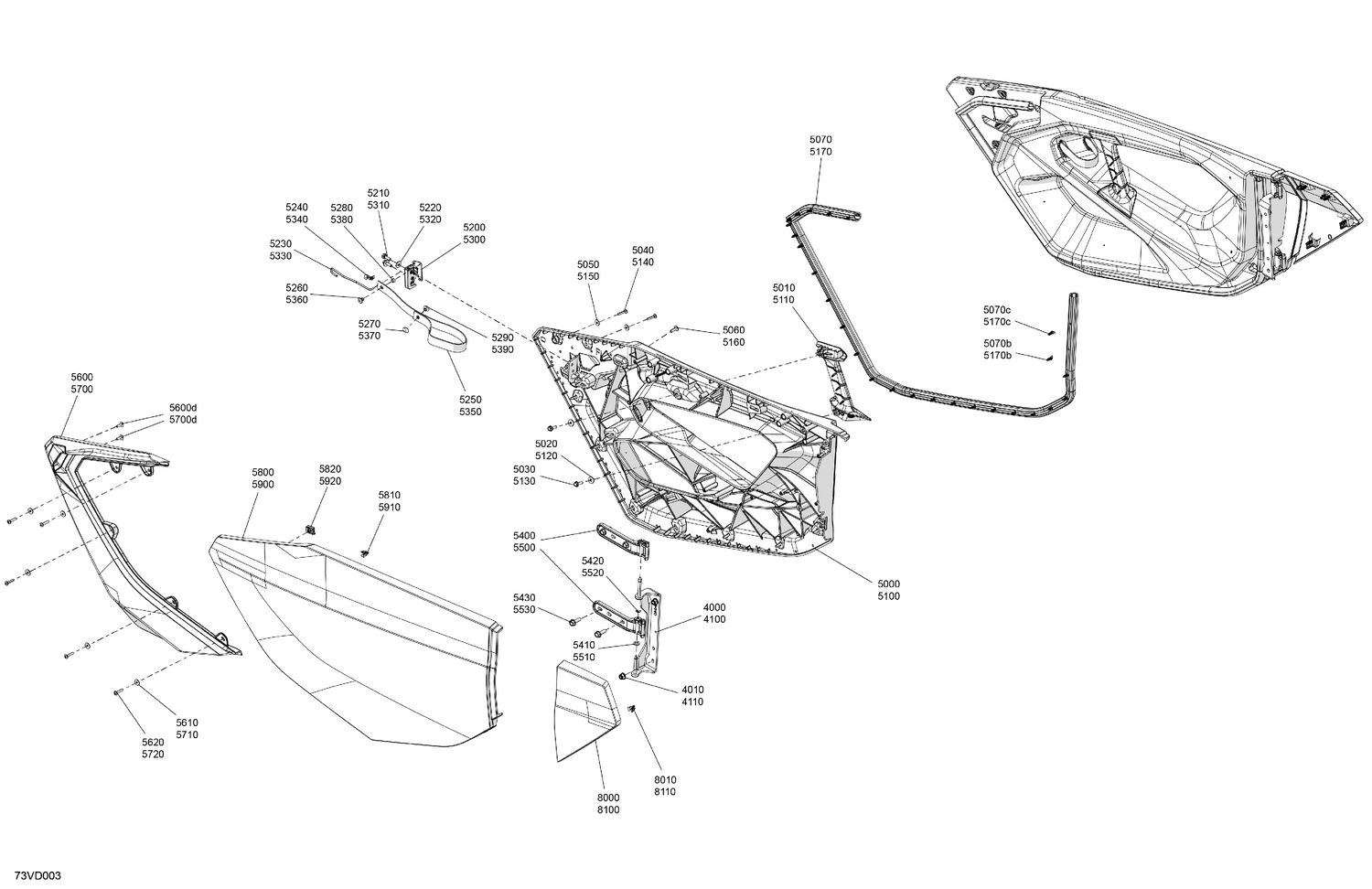

07- Body - Doors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#4000
LH Support Pivot
705212590
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4010
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4100
RH Support Pivot
705212591
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4110
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#5000
LH Front Door Ass'y
715009654
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#5010
LH Interior Door Handle
705016582
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5020
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5030
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5040
Torx Screw K50 X 25
250001110
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#5050
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5060
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5070
LH Gasket Ass'y
293250582
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5070b
Natural Color, Dart
293730081
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#5070c
Red, Dart
293730082
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#5100
RH Front Door Ass'y
715009655
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#5110
RH Interior Door Handle
705016583
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5120
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#5130
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Unavailable |
|||
|
#5140
Torx Screw K50 X 25
250001110
|
$2.09 | ||
|
Unavailable |
|||
|
#5150
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#5160
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5170
RH Gasket Ass'y
293250616
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5170b
Natural Color, Dart
293730081
|
$2.68 | ||
|
Unavailable |
|||
|
#5170c
Red, Dart
293730082
|
$2.68 | ||
|
Unavailable |
|||
|
#5200
RH Latch
705013759
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5210
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Unavailable |
|||
|
#5220
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#5230
LH Latch Rod
705017012
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#5240
LH Tie Rod Clip
708300182
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#5250
Belt
293850144
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5260
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5270
Belt Stopper
293730070
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5280
Bushing
293900104
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#5290
Belt Stopper
293730072
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5300
LH Latch
705013758
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5310
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Unavailable |
|||
|
#5320
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#5330
RH Latch Rod
705017013
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#5340
RH Tie Rod Clip
708300202
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#5350
Belt
293850144
|
$12.99 | ||
|
Unavailable |
|||
|
#5360
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
Unavailable |
|||
|
#5370
Belt Stopper
293730070
|
$2.29 | ||
|
Unavailable |
|||
|
#5380
Bushing
293900104
|
$5.50 | ||
|
Unavailable |
|||
|
#5390
Belt Stopper
293730072
|
$2.29 | ||
|
Unavailable |
|||
|
#5400
Female Door Hinge
705017757
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5410
Flat Washer 8 mm, Nylon
234081100
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5420
Circlip
705601030
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#5430
Hex Flange Screw M8 X 25 S.Grip
250001016
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5500
Female Door Hinge
705017757
|
$26.99 | ||
|
Unavailable |
|||
|
#5510
Flat Washer 8 mm, Nylon
234081100
|
$1.49 | ||
|
Unavailable |
|||
|
#5520
Circlip
705601030
|
$4.49 | ||
|
Unavailable |
|||
|
#5530
Hex Flange Screw M8 X 25 S.Grip
250001016
|
$1.49 | ||
|
Unavailable |
|||
|
#5600
LH Front Handle Support Ass'y
705017036
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#5600d
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5610
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#5620
Torx Screw K50 X 25
250001110
|
$2.09 | ||
|
Unavailable |
|||
|
#5700
RH Front Handle Support Ass'y
705017037
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#5700d
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#5710
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#5720
Torx Screw K50 X 25
250001110
|
$2.09 | ||
|
Unavailable |
|||
|
#5800
Carbon Black, LH Front Door Panel
705015514
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#5810
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5820
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5900
Carbon Black, RH Front Door Panel
705015515
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#5910
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#5920
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#8000
Carbon Black, LH Central Body Panel
705015544
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8010
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#8100
Carbon Black, RH Central Body Panel
705015545
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8110
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
