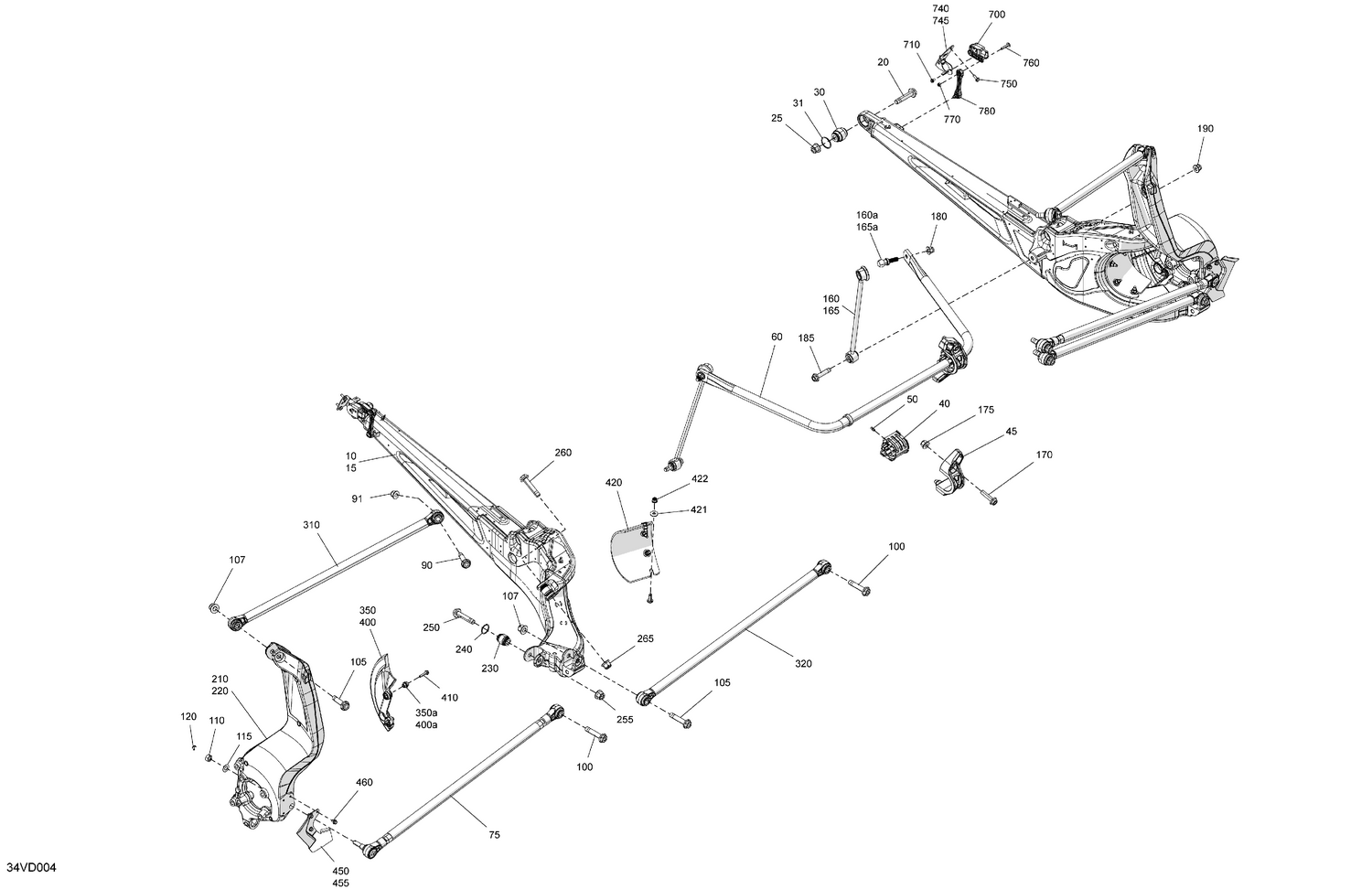

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
NEEDS DESCRIPTION
706005498
Superseded by 706006129
|
$900.99 | ||
|
Unavailable |
|||
|
#15
ARM_SUSPENSION REAR R PAINTED B-450
706005499
Superseded by 706006130
|
$900.99 | ||
|
Unavailable |
|||
|
#20
Hex. Flange Screw Din.6921 M14X2X70
250001175
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Hex. Flange Elastic Nut M14
250001166
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Ball Joint
706005389
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Retaining Ring
293370166
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706005418
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#45
Clamp
706004846
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Stabilizer Bar Ass'y
706005757
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#75
Central Suspension Arm Ass'y
706005030
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Flange Screw Din.6921 M14X2X70
250001175
|
$7.59 | ||
|
Unavailable |
|||
|
#91
Hex. Flange Elastic Nut M14
250001166
|
$12.49 | ||
|
Unavailable |
|||
|
#100
Hex. Flange Screw Din.6921 M14X2X70
250001175
|
$7.59 | ||
|
Unavailable |
|||
|
#105
Hex. Flange Screw Din.6921 M14X2X70
250001175
|
$7.59 | ||
|
Unavailable |
|||
|
#107
Hex. Flange Elastic Nut M14
250001166
|
$12.49 | ||
|
Unavailable |
|||
|
#110
Hex Nut M12
250100239
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#115
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
LH Stabilizer Link Bar
706005360
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#160a
Radial Joint
706002135
|
$43.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#165
RH Stabilizer Link Bar
706005361
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#165a
Radial Joint
706002135
|
$43.49 | ||
|
Unavailable |
|||
|
#170
Screw Hex Flange M12 X 50
250001233
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#175
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#180
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#185
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#210
LH Rear Knuckle Ass'y
715010038
|
$497.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
RH Rear Knuckle Ass'y
715010039
|
$497.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Ball Joint
706004401
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Retaining Ring
293370165
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#250
Hex. Flange Screw Din.6921 M14X2X70
250001175
|
$7.59 | ||
|
Unavailable |
|||
|
#255
Hex. Flange Elastic Nut M14
250001166
|
$12.49 | ||
|
Unavailable |
|||
|
#260
Hex. Flange Screw Din.6921 M14X2X70
250001175
|
$7.59 | ||
|
Unavailable |
|||
|
#265
Hex. Flange Elastic Nut M14
250001166
|
$12.49 | ||
|
Unavailable |
|||
|
#310
Upper Suspension Arm Ass'y
706005031
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Lower Suspension Arm Ass'y
706005032
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
LH Rear Guard
706004631
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#350a
Spacer
706004805
|
|||
|
Unavailable |
|||
|
#400
RH Rear Guard
706004632
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#400a
Spacer
706004805
|
|||
|
Unavailable |
|||
|
#410
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#420
CV Joint Guard
706005486
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#421
Stainless Steel Flat Washer
234082670
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#422
Elastic Flange Nut M8
233281464
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#450
LH Deflector
706004703
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#455
RH Deflector
706004704
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#460
Flange Screw M6 X 10, Scotch Grip
207561044
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#700
Suspension Position Sensor
710005235
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
Hex. Flange Screw M5x10
207551056
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#740
LH Rear Sensor Support
706004723
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#745
RH Rear Sensor Support
706004724
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#750
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#760
Stainless, Torx Screw M6 X 30
250000842
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#770
Elastic Stop Nut M6
232561494
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#780
Link
706203429
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
