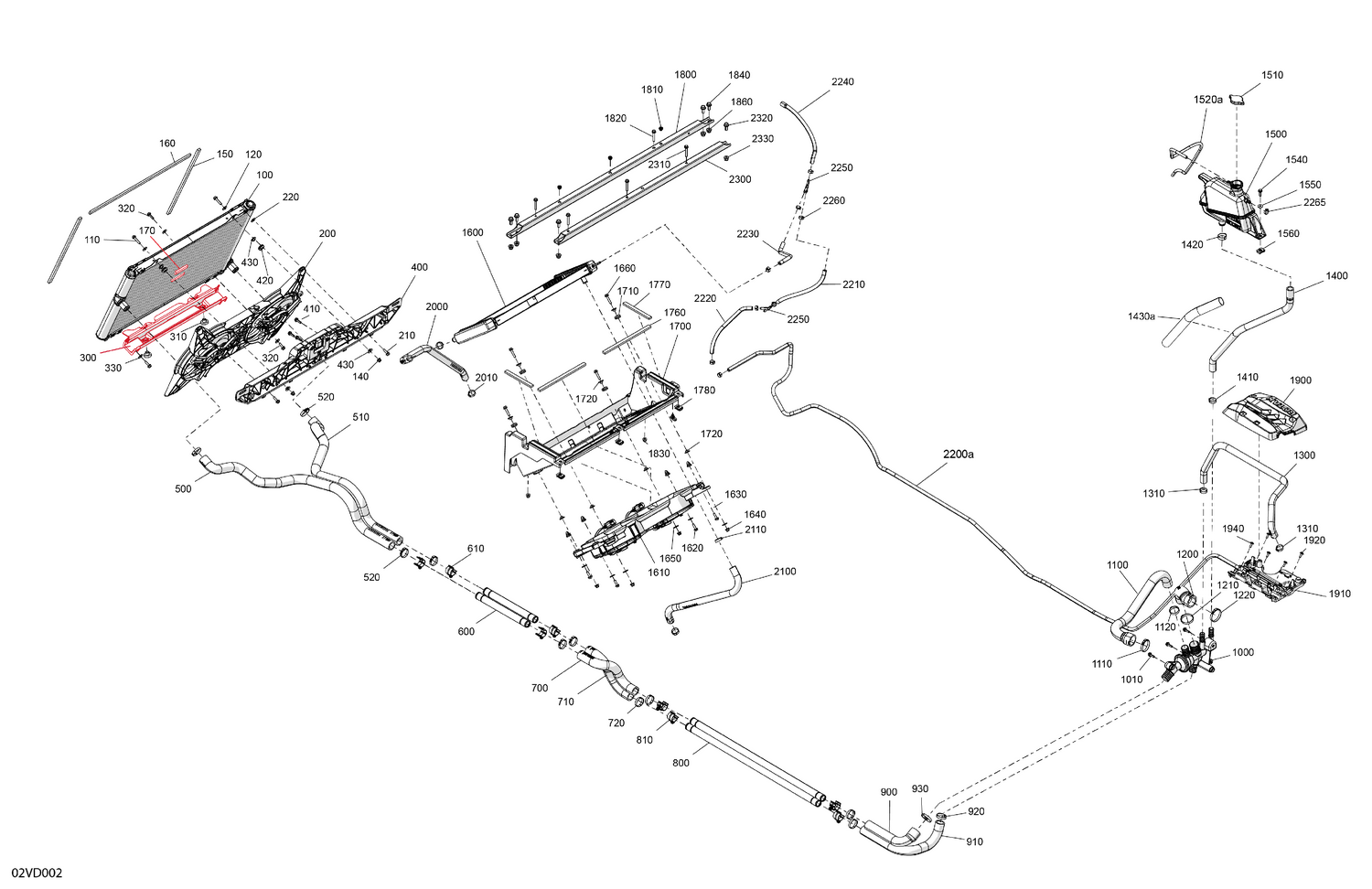

02- Engine - Cooling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#100
Front Radiator
709201058
|
$466.49 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Screw M6 X 30
207663054
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#120
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#140
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Seal 3000MM Long
219704386
|
$28.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Seal 3000MM Long
219704386
|
$28.49 | ||
|
Unavailable |
|||
|
#170
Seal 3000MM Long
219704386
|
$28.49 | ||
|
Unavailable |
|||
|
#200
Cooling Fan Ass'y
709201072
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#220
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#300
Front Lower Radiator Support
709201117
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#310
Grommet
709200948
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#320
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Unavailable |
|||
|
#330
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#400
Upper Front Radiator Support
709201109
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#420
Overmolded Grommet
293720130
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#430
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#500
Radiator Hose IN
709201501
|
$65.49 | ||
|
Available to order. Add to View Price |
|||
|
#510
Radiator Hose OUT
709201502
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#520
Gear Clamp
509000162
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#600
Tube
709201138
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#610
Retainer
275500963
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#700
Radiator Hose
709201503
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#710
Radiator Hose
709201504
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#720
Gear Clamp
509000162
|
$7.49 | ||
|
Unavailable |
|||
|
#800
Heater Tubing
709200657
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#810
Retainer
275500963
|
$4.14 | ||
|
Unavailable |
|||
|
#900
Thermostat Hose OUT
709201505
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#910
Thermostat Hose IN
709201506
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#920
Gear Clamp
509000162
|
$7.49 | ||
|
Unavailable |
|||
|
#930
Oetiker Gear Clamp
293650254
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#1000
Thermostat Housing
709201105
Superseded by 709201612
|
$109.99 | ||
|
Unavailable |
|||
|
#1010
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Unavailable |
|||
|
#1100
Engine Hose OUT
709201508
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#1110
Oetiker Gear Clamp 44.0MM
293650138
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#1120
Gear Clamp
509000162
|
$7.49 | ||
|
Unavailable |
|||
|
#1200
Engine Hose IN
709201090
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#1210
Oetiker Gear Clamp 44.0MM
293650138
|
$8.89 | ||
|
Unavailable |
|||
|
#1220
Crimp Clamp
293650322
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#1300
Hose
709201083
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#1310
Oeticker Gear Clamp, 25.6-706R
509000442
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#1400
Coolant Tank Hose
709201082
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#1410
Oeticker Gear Clamp, 25.6-706R
509000442
|
$5.29 | ||
|
Unavailable |
|||
|
#1420
Oetiker Gear Clamp
293650165
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1430a
Tubing 25 MM 1000MM Long
219704402
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#1500
Coolant Tank
709201003
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1520a
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#1540
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Unavailable |
|||
|
#1550
Flat washer M6
250200164
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#1560
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1600
Rear Radiator
709201075
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#1610
Cooling Fan Ass'y
709201074
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#1620
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Unavailable |
|||
|
#1630
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1640
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#1650
Flat Washer
250200082
|
$0.44 | ||
|
Unavailable |
|||
|
#1660
Hex. Flange Screw M6 X 1.0 X 30
207663056
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#1700
RH Rear Radiator Support
709201110
|
$121.49 | ||
|
Available to order. Add to View Price |
|||
|
#1710
Overmolded Grommet
293720130
|
$4.79 | ||
|
Unavailable |
|||
|
#1720
Shoulder Bushing
710004749
|
$2.69 | ||
|
Unavailable |
|||
|
#1760
Seal 3000MM Long
219704386
|
$28.49 | ||
|
Unavailable |
|||
|
#1770
Seal 3000MM Long
219704386
|
$28.49 | ||
|
Unavailable |
|||
|
#1780
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#1800
Square Tube
709201218
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#1810
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1820
Hex. Flange Screw M6 X 40
207664044
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1830
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#1840
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1860
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1900
Cover
705016102
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#1910
Hose Support
705016032
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#1920
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1940
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#2000
Hose
709201084
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#2010
Oeticker Gear Clamp, 25.6-706R
509000442
|
$5.29 | ||
|
Unavailable |
|||
|
#2100
Hose
709201086
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#2110
Oeticker Gear Clamp, 25.6-706R
509000442
|
$5.29 | ||
|
Unavailable |
|||
|
#2200a
Hose 6,35 Mm Id 4000Mm Long
219704547
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#2210
Hose 6,35 Mm Id 4000Mm Long
219704547
|
$12.49 | ||
|
Unavailable |
|||
|
#2220
Hose 6,35 Mm Id 4000Mm Long
219704547
|
$12.49 | ||
|
Unavailable |
|||
|
#2230
Hose 6,35 Mm Id 4000Mm Long
219704547
|
$12.49 | ||
|
Unavailable |
|||
|
#2240
Coolant Tank Hose
709201234
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2250
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#2260
Oetiker Gear Clamp
293650025
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#2265
Oetiker Clamp
293650140
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#2300
Square Tube
709201220
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#2310
Hex. Flange Screw M6 X 40
207664044
|
$2.19 | ||
|
Unavailable |
|||
|
#2320
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#2330
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
