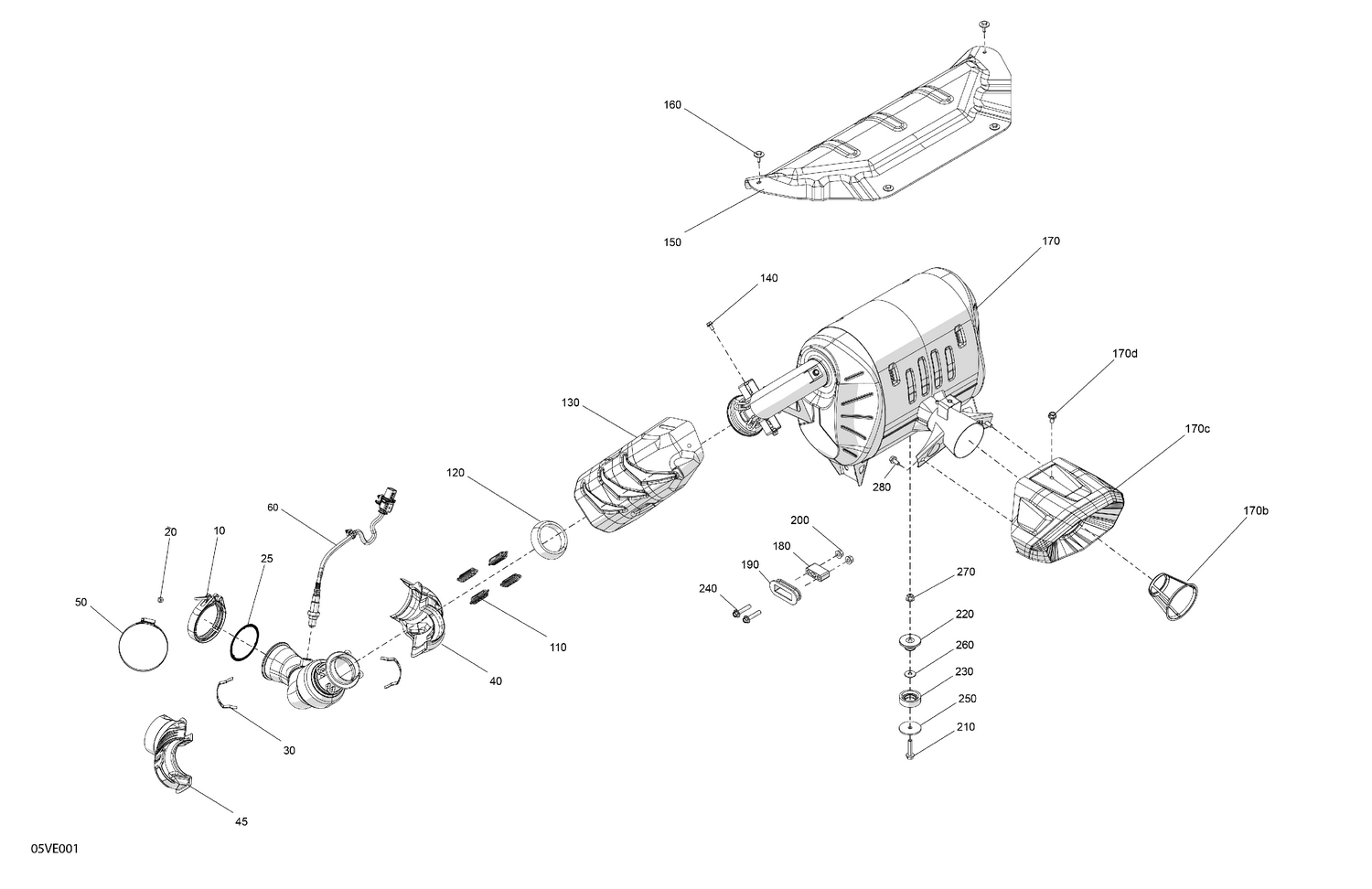

02- Engine - Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Exhaust Clamp
707603708
|
$60.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Nut
707602143
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
Seal
707601835
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Exhaust Pipe
707602877
|
$900.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Lower Heat Shield
707603578
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Upper Heat Shield
707603579
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Clamp
293650259
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#60
Oxygen Sensor
707602926
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Spring
707601834
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#120
Joint
707603140
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#130
Lateral Heat Shield
707602881
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
Heat Shield
707603450
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex Sems Screw M6X20
250001165
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#170
Exhaust Muffler Ass'y
707603601
|
$847.49 | ||
|
Available to order. Add to View Price |
|||
|
#170b
Spark Arrester
707603567
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#170c
Muffler End Piece
707603272
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#170d
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#180
Muffler Stopper
707603214
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#190
Vibration Damper
707603488
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#200
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#210
Hex. Flange Screw M8 X 40
207684044
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
Anti Vibration Mount
707003062
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Rubber Mount
707603383
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#240
Hex. Flange Screw M8 X 40
207684044
|
$1.49 | ||
|
Unavailable |
|||
|
#250
Flat Washer M8
250200180
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#260
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#280
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
|
$1.19 | ||
|
Unavailable |
|||
