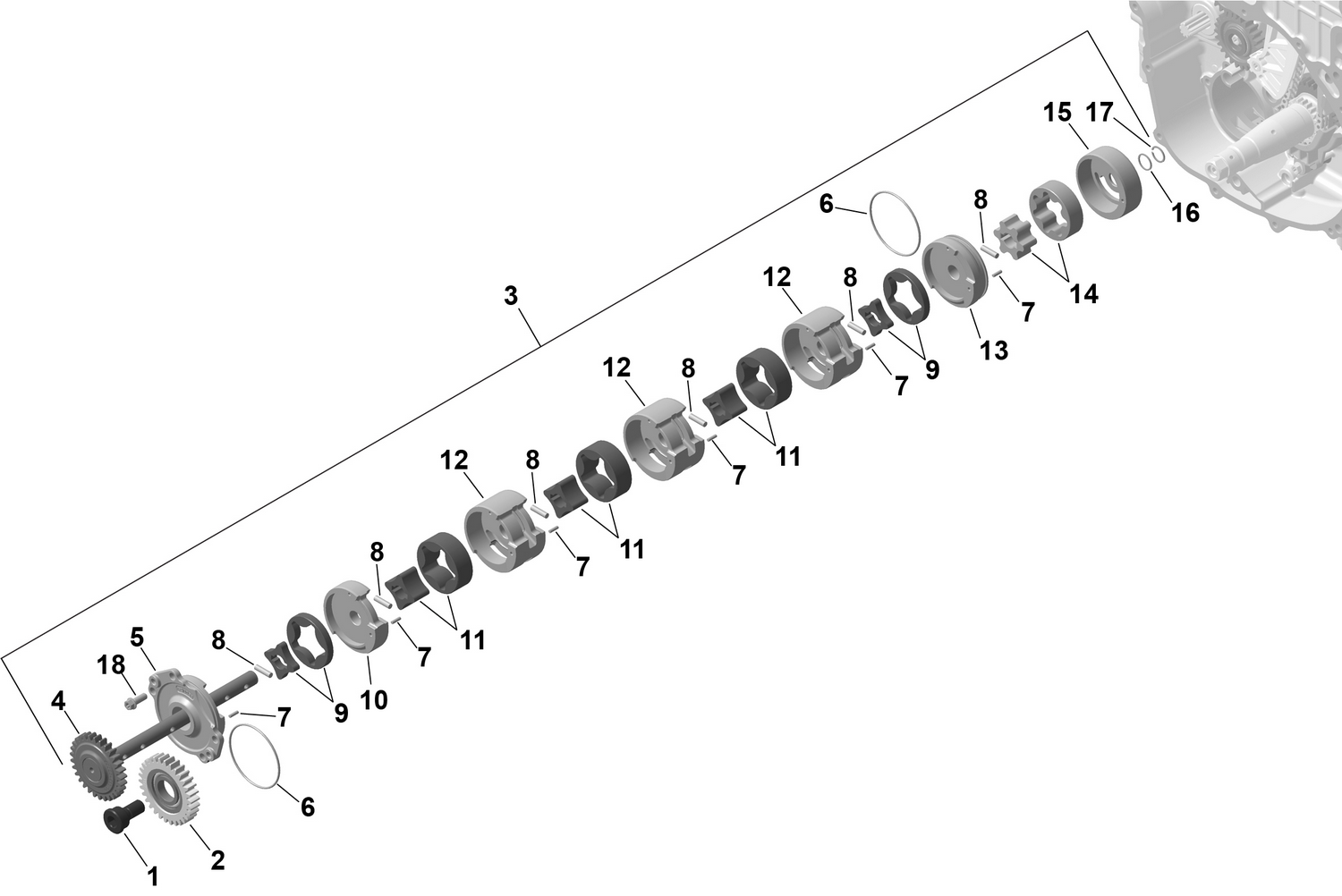

01- Rotax - Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Beating Bolt
420240922
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
Intermediate Pinion 30 Teeth Ass'y
420235273
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Oil Pump Ass'y
420296506
|
$669.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Oil Pump Shaft Ass'y
420220366
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Oil Pump Cover
420210053
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-Ring
420631032
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
Needle
420232992
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
Needle Pin
420632223
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
Oil Pump Rotor Set
420256832
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Oil Pump Cover
420210052
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Pump Rotor Set
420256833
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Oil Pump Cover
420210055
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Oil Pump Cover
420210051
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Inner And Outer Pressure Rotor
420888824
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Oil Pump Cover
420210056
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Thrust Washer
420227063
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
Retaining Ring
420245123
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
