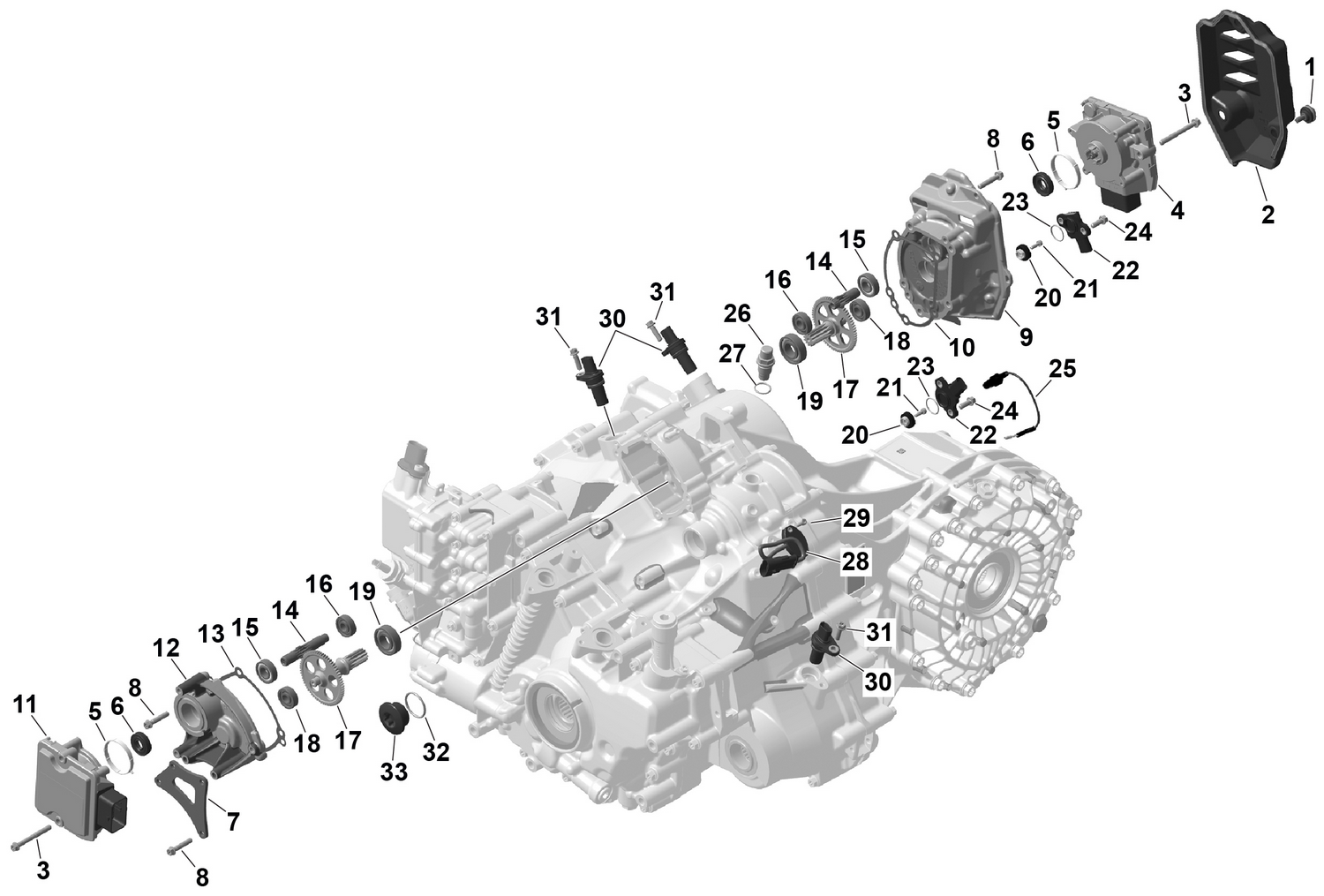

01- Rotax - Gearbox Servo Motors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
Lateral Guard
420201354
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M6 X 55
420440701
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
Servo Motor Ass'y
420685685
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket
420431660
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil Seal
420250452
|
$17.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Support Bracket
420251101
|
$19.99 | ||
|
Unavailable |
|||
|
#8
Torx Flange Screw M6 X 30
420440647
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
Servo Motor Cover
420201601
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Gasket
420230064
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Servo Motor Ass'y
420685686
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Actuator Cover
420201605
|
$38.99 | ||
|
Unavailable |
|||
|
#13
Gasket
420230061
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Driven Shaft Ass'y
420220255
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Balll Bearing
420232400
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Bearing
420232100
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Double Gear Ass'y 11/66 Teeth
420234755
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Ball Bearing 6000
420232101
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ball Bearing 6003
420232626
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Magnet
420256003
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Allen Screw M4X12 8.8 MK
420440297
|
$1.01 | ||
|
Unavailable |
|||
|
#22
Angle Of Rotation Sensor
420265122
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-Ring
420230405
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
Contact Screw M10 Ass'y With Cable
420640192
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Index Screw M16X1.5 Ass'y
420441397
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Oil Pressure Regulator Gasket Ring
420430624
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
Position Sensor
420665977
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Allen Screw M4X12 8.8 MK
420440297
|
$1.01 | ||
|
Unavailable |
|||
|
#30
Speed Sensor
420265726
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Unavailable |
|||
|
#32
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#33
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
