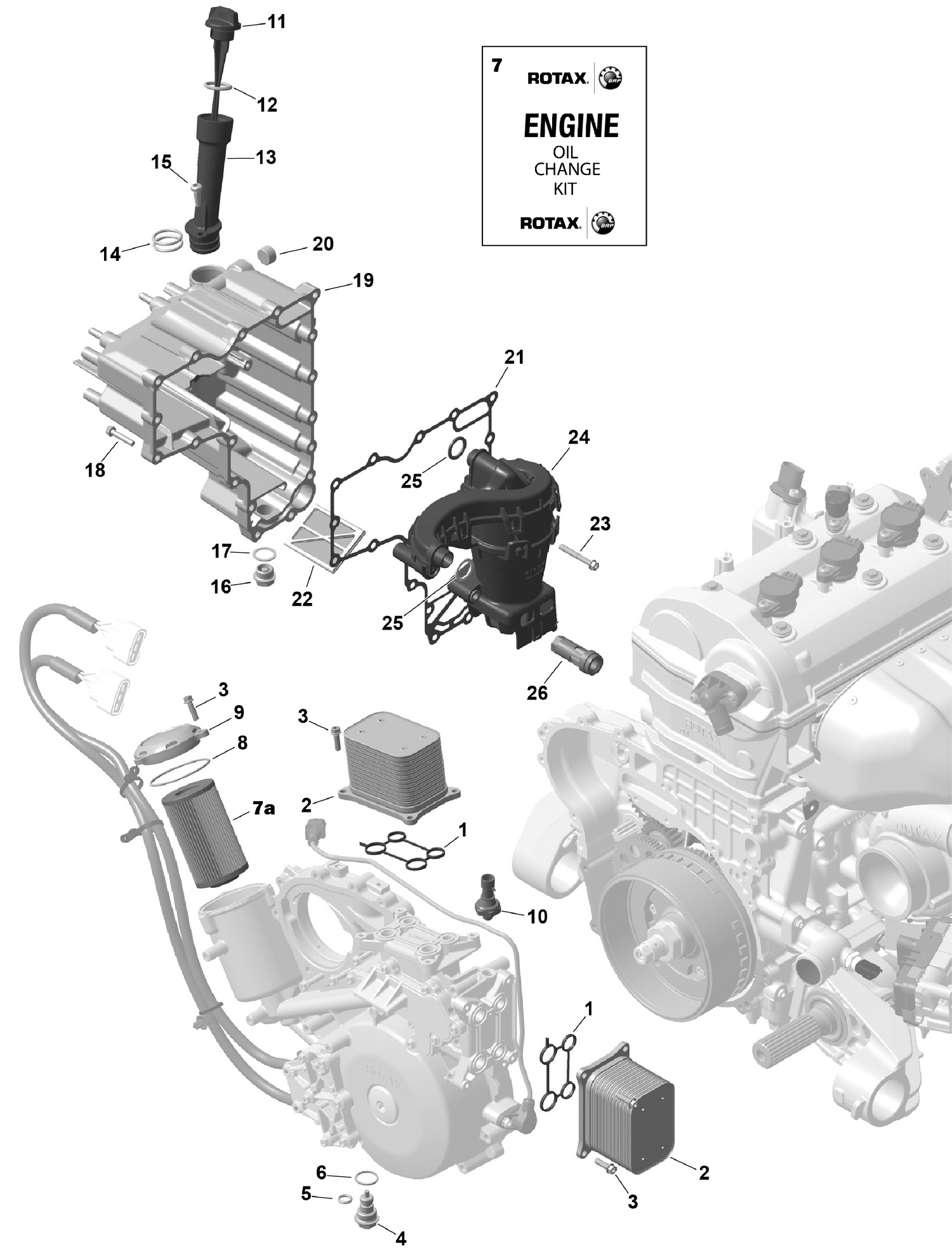

01- Rotax - Engine Lubrication Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Gasket
420431870
Superseded by 420431871
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Oil Water Heat Exchanger
420656687
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
Magnet Screw M20 X 1.5
420441682
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-Ring
420430115
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Gasket Ring A
420630651
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
Can-Am Oil Change Kit 5W40 ROTAX
9779500
|
$86.99 | ||
|
Unavailable |
|||
|
#7a
Oil Filter
420956747
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-Ring
420230922
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
Oil Filter cover
420612135
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Oil Pressure Switch
420256915
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Dipstick
420656033
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-Ring
420631640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Oil Filler Tube
420656905
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-Ring
420430440
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Flange Screw M6 X 20
420441386
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
Drain Plug M18 X 1.5
420840278
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Crush Washer
420552280
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Torx Flange Screw M6 X 30
420440647
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
Oil Sump Cover
420612421
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Plug Screw M18 X 1.5 - Call your local BRP dealership
420240170
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
Gasket
420230013
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil Sieve
420956950
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#23
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
Blow By Seperator Ass'y
420856775
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Gasket
420230551
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Pressure Valve Regulator Ass'y
420456143
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
