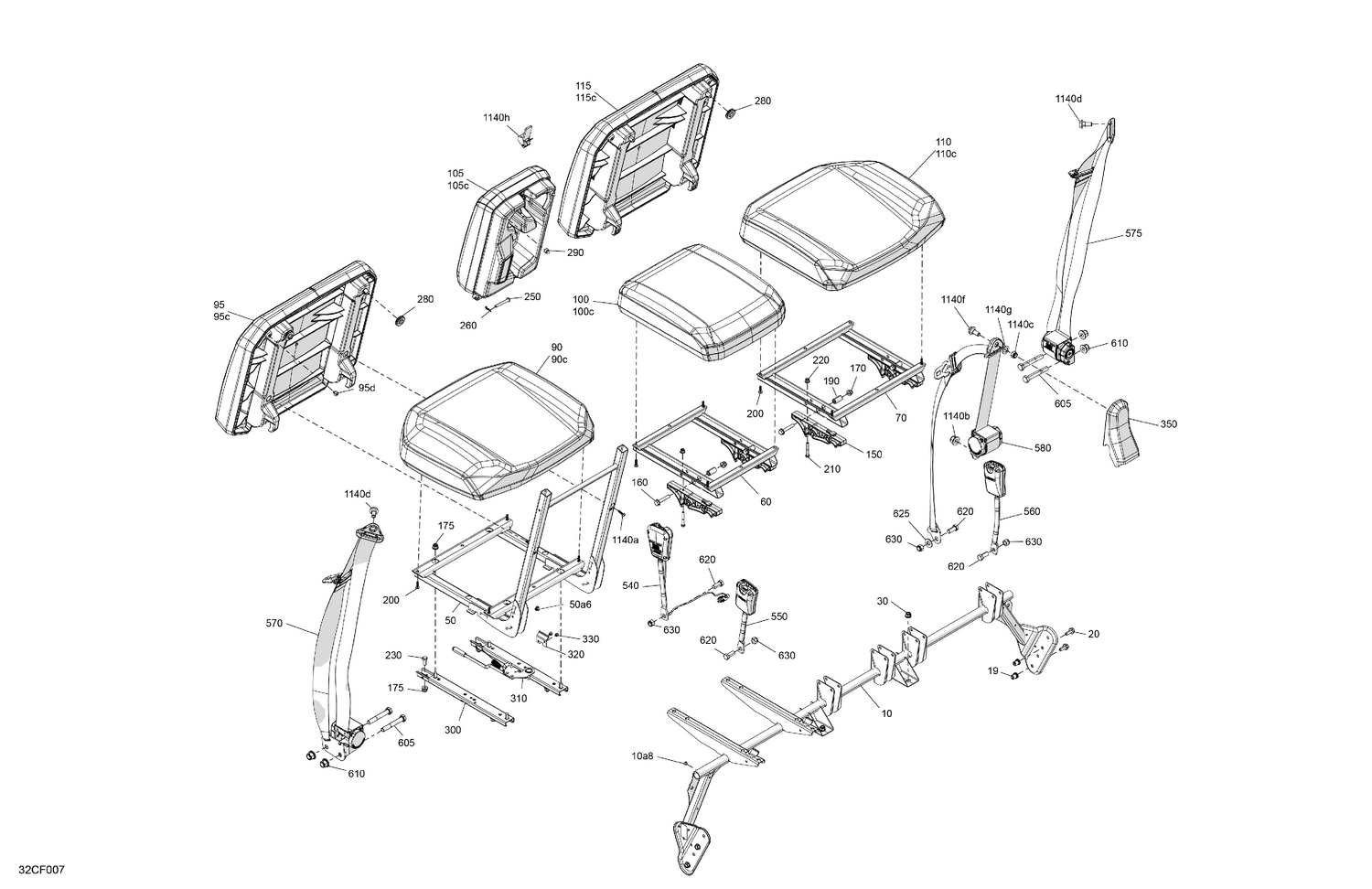

07- Body - Seat - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Seat Support
708004118
|
$104.99 | ||
|
Unavailable |
|||
|
#10a8
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex Screw Washer Head M8 X 20
207582054
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Operator Seat Member
708001723
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#50a6
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#60
Mid Seat Member
708002815
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Passenger Seat Member
708002821
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
LH Seat Base Ass'y
708003234
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#90c
LH Seat Cover
708003235
|
$99.99 | ||
|
Unavailable |
|||
|
#95
Backrest Ass'y
708003248
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#95c
Backrest Cover
708003250
|
$99.99 | ||
|
Unavailable |
|||
|
#95d
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#100
Central Cushion Ass'y
708001928
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#100c
Cover
708001929
|
$99.99 | ||
|
Unavailable |
|||
|
#105
Backrest Ass'y
708003157
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#105c
Cover
708001933
|
$99.99 | ||
|
Unavailable |
|||
|
#110
RH Seat Base Ass'y
708003236
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#110c
RH Seat Cover
708003237
|
$99.99 | ||
|
Unavailable |
|||
|
#115
Backrest Ass'y
708004404
|
$349.99 | ||
|
Unavailable |
|||
|
#115c
Backrest Cover
708003250
|
$99.99 | ||
|
Unavailable |
|||
|
#150
Seat Base Pivot
708002581
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Screw M8 X 45
207684544
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#175
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#190
Bushing
708003749
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#200
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Screw M6 X 45
207064544
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#230
Hex. Screw M8 X 20
207182044
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Pin
250400069
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hairpin Cotter
269800431
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#280
Grommet
517303756
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#290
Rubber Bumper
293830005
|
$8.29 | ||
|
Unavailable |
|||
|
#300
LH Seat Rail
708003314
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
RH Seat Rail
708003315
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Seat Stopper
708003672
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#330
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#350
Belt Guard Trim
708004033
|
$38.99 | ||
|
Unavailable |
|||
|
#540
Driver Buckle
708002331
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#550
Middle Buckle
708003163
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Passenger Buckle
708002329
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#570
LH Safety Belt
708003082
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#575
RH Safety Belt
708003200
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#580
Central Safety Belt
708003688
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#605
Hex. Screw M12 X 80
207028046
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#620
Hex. Cap Screw 7/16'' X 1''
250001316
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#625
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#630
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#1140a
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
Unavailable |
|||
|
#1140b
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Unavailable |
|||
|
#1140c
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
|
#1140d
Safety Belt screw
708002504
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#1140f
Safety Belt Screw
708000890
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#1140g
Position Washer
708000891
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#1140h
Latch
269501487
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
