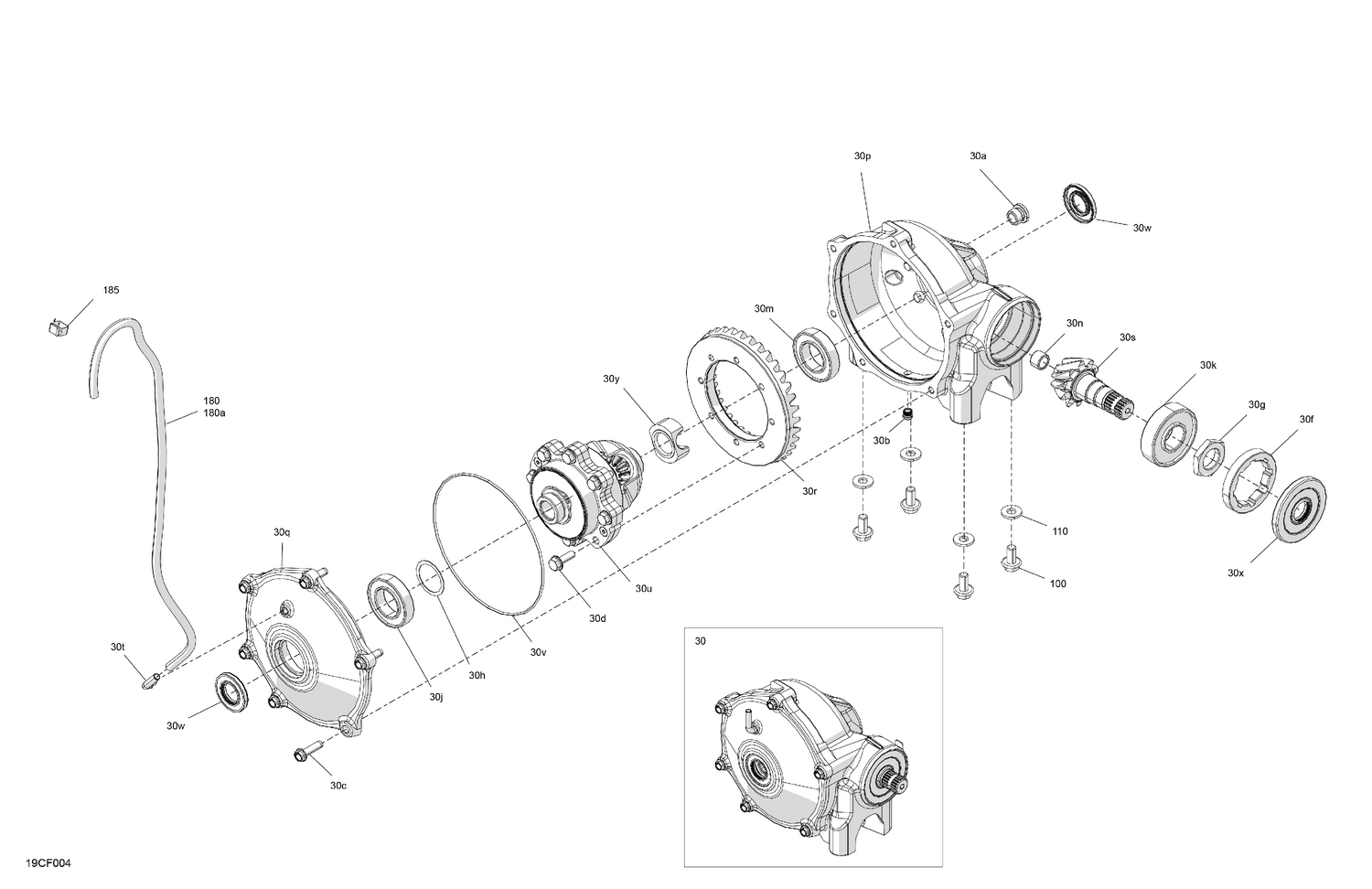

04- Drive - Front - Differential Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Front Differential Ass'y
705403688
|
$1,377.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Fill Level Plug
705501889
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Drain Plug
705501885
|
$14.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30c
Bolt
705501886
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#30d
Hex Flange Screw Serrated M8 X 25
705403382
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#30f
Nut M75 X 1.5
705401819
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30g
Nut M27 X 1.5
705401820
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30h
Shim
705401604
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#30j
Ball Bearing
705402847
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30k
Ball Bearing
705401606
|
$51.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30m
Ball Bearing
705401821
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30n
Ball Bearing
705402848
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30p
Sprocket Cover
705402765
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#30q
Machined Differential Cover
705403704
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#30r
Gear 36 Teeth
705403693
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#30s
Final Drive Pinion 10 Teeth
705403703
|
$209.99 | ||
|
Unavailable |
|||
|
#30t
Vent Valve
705401935
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30u
Differential
705402377
|
$1,052.99 | ||
|
Available to order. Add to View Price |
|||
|
#30v
Oil Seal iDIA 6.737 oDIA 6.943
705501881
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#30w
Oil Seal
705401836
|
$7.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30x
Oil Seal, Triple Lip 25 X 79 X 8
705401827
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30y
Spacer
715008576
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Screw M10 X 25
207502546
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
Conical Spring Washer 10 mm
234201474
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#180a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#185
Clip
710010204
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
