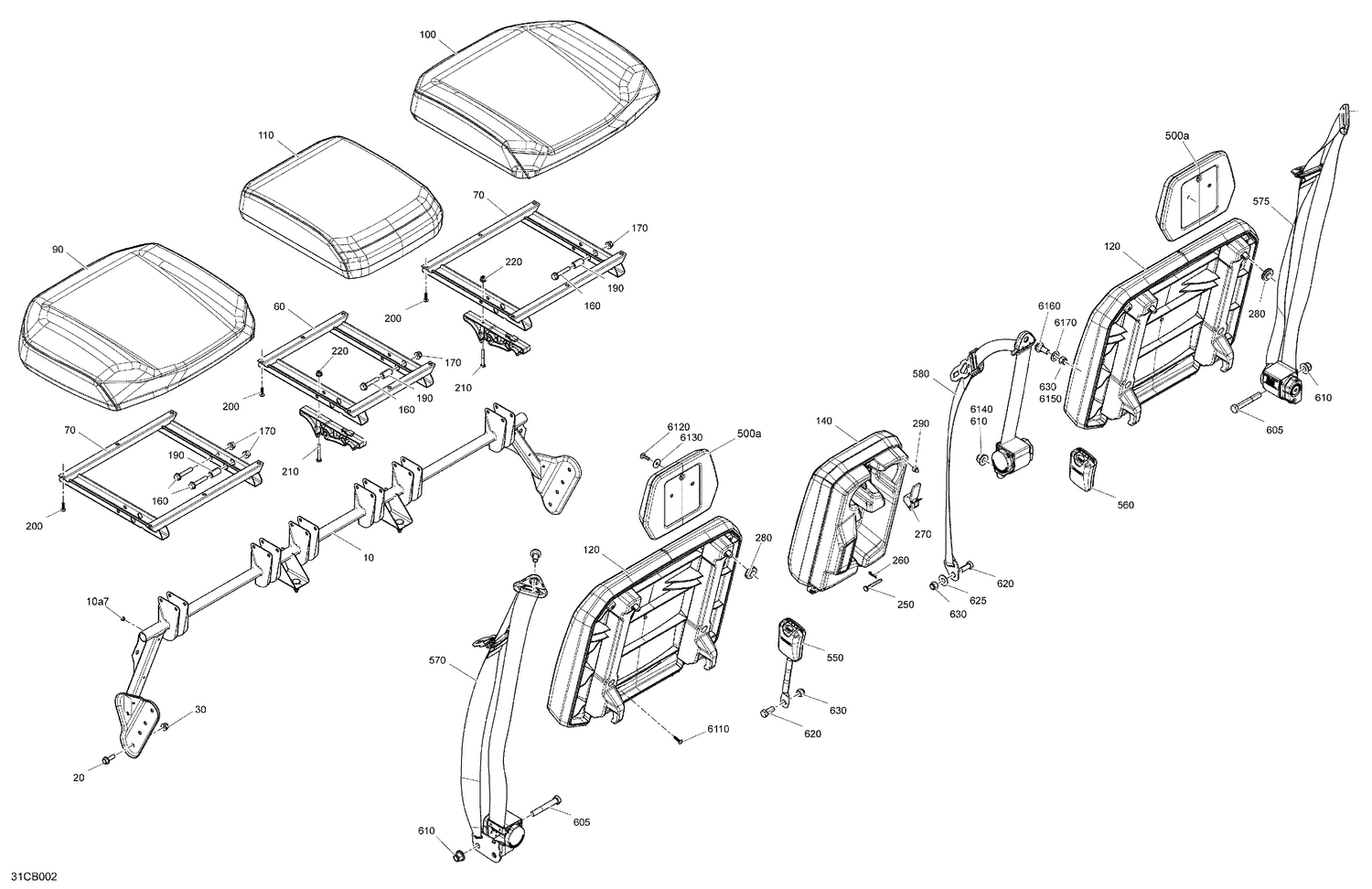

07- Body - Seat - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Seat Member
708002817
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a7
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
Mid Seat Member
708002815
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Passenger Seat Member
708002821
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
LH Cushion Ass'y
708002544
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
RH Cushion Ass'y
708001498
|
$284.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
Central Cushion Ass'y
708001629
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Backrest Ass'y
708001701
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Backrest Ass'y
708003155
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Screw M8 X 45
207684544
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#190
Bushing
708001903
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#200
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Screw M6 X 45
207064544
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Pin
250400069
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hairpin Cotter
269800431
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#270
Latch
269501487
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Grommet
517303756
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#290
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#500a
Headrest
708002853
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#550
Middle Buckle
708003163
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Passenger Buckle
708002329
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#570
LH Safety Belt
708003082
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#575
RH Safety Belt
708003200
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#580
Central Safety Belt
708003164
Superseded by 708003688
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#605
Hex. Screw M12 X 80
207028046
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#620
Hex. Cap Screw 7/16'' X 1''
250000521
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#625
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#630
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#6110
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
Unavailable |
|||
|
#6120
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6130
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#6140
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Unavailable |
|||
|
#6150
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
|
#6160
Safety Belt Screw
708000890
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#6170
Position Washer
708000891
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
