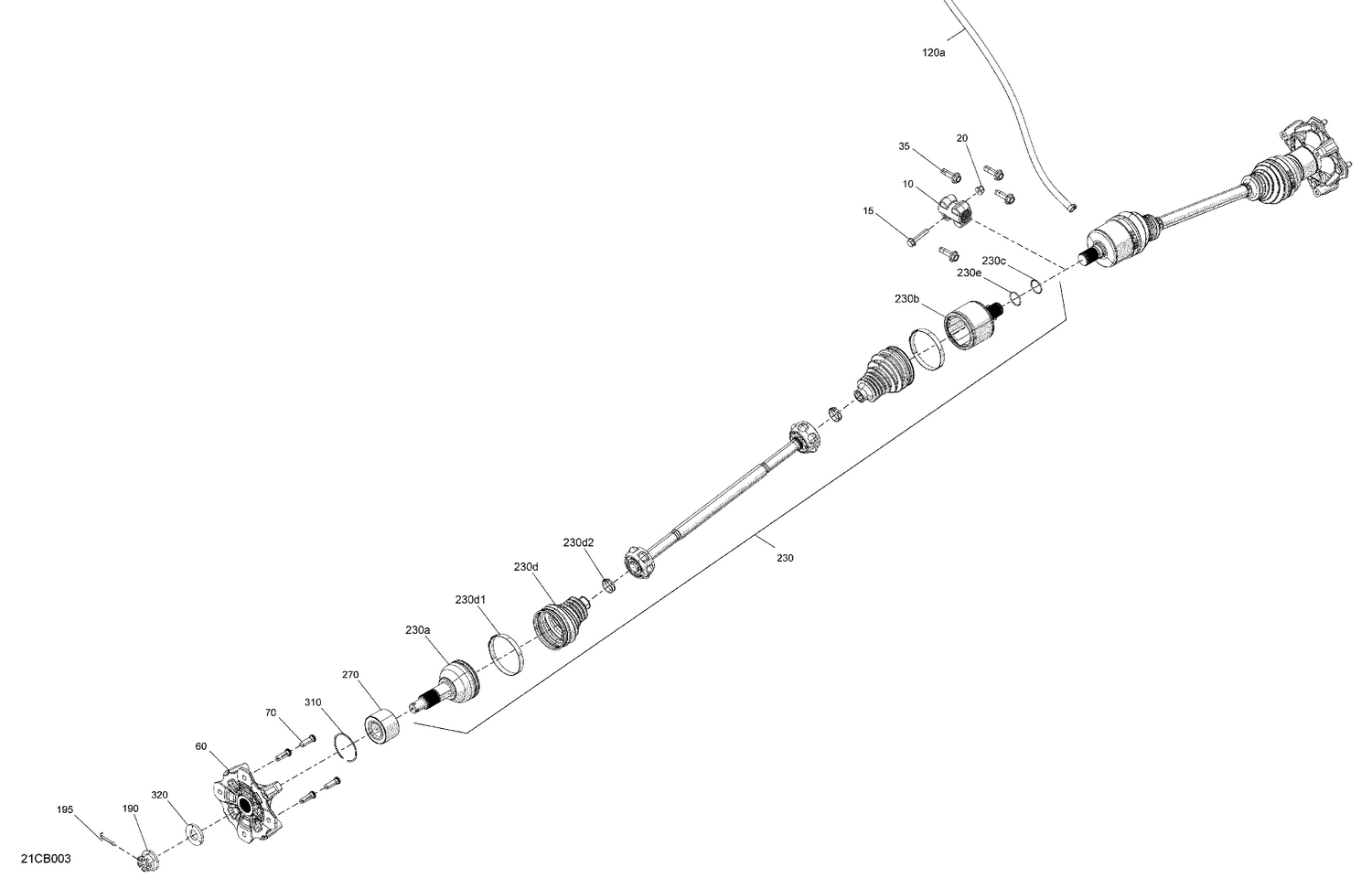

04- Drive - Rear - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Coupling Sleeve
709402586
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hex. Flange Screw M8 X 42
250001050
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Screw-Hex.Flange M10 X 35 S.Grip
250001080
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#60
Wheel Hub
705502338
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#120a
Hose
219704439
Superseded by 219704549
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#190
Castle Nut M20
250100193
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#195
Cotter Pin
250400084
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Rear CV Joint
705503100
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#230a
JOINT_CV EXT - Call your local BRP dealership
715900429
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#230b
Plunging Joint
715900444
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#230c
Circlip
705501781
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#230d
Boot Kit
705501864
|
$42.49 | ||
|
Unavailable |
|||
|
#230d1
Oetiker Clamp, 82.1 mm
715900241
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#230d2
Oetiker Clamp, 27.3 mm
715900242
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#230e
O-Ring
715900579
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#270
Ball Bearing
293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#320
Conical Spring Washer M20
250200170
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
