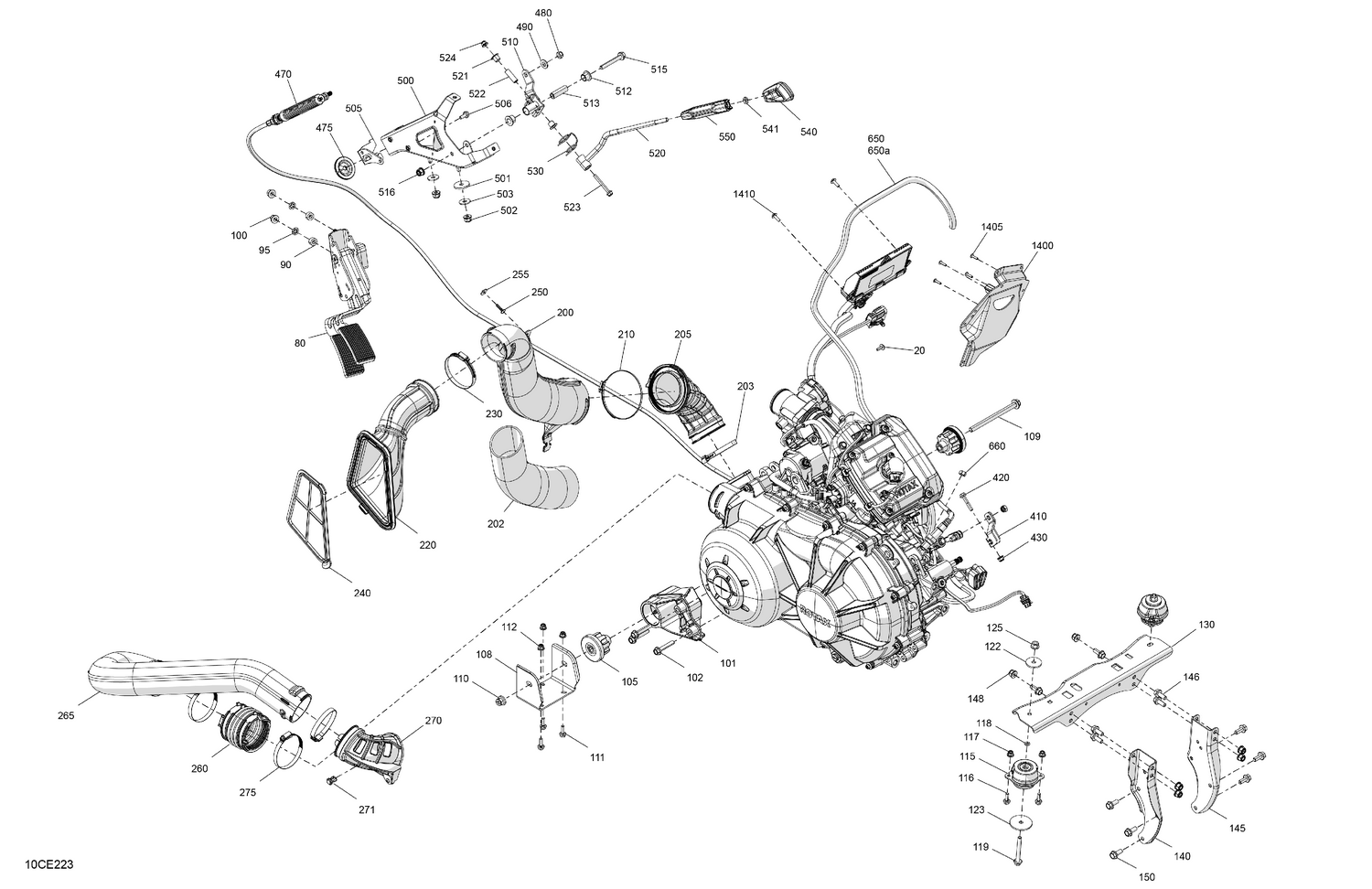

02- Engine - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#20
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#80
Accelerator Pedal
707003503
|
$299.99 | ||
|
Unavailable |
|||
|
#90
Bushing
707000848
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#95
Push Nut
250100031
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#101
Engine Mount
707002636
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#102
Hex. Flange Screw M8 X 45, Scotch Grip
207584544
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#105
Vibration Damper
707002915
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#108
Engine Support
707002869
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#109
Hex. Flange Screw M10 X 135
230603546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#111
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#112
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#115
Rubber Mount
707002590
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#116
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Unavailable |
|||
|
#117
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#118
O-Ring
293300215
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#119
Hex. Flange Screw, M8 X 65
207686544
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#122
Flat Washer M8
250200158
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#123
Flat Washer M8
250200180
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#125
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Unavailable |
|||
|
#130
Rear Link Bracket
707002290
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
LH Rear Engine Support
707003338
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#145
RH Rear Engine Support
707003340
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#146
Hex Flange Screw M8 X 20
207582046
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#148
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex Flange Screw M8 X 20
207582046
|
$1.49 | ||
|
Unavailable |
|||
|
#200
CVT Cooling Duct
706600398
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#202
Acoustic Insulation
706600363
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#203
Norma Clamp
514052924
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#205
Duct Fitting
706600395
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Norma Clamp
514052924
|
$14.49 | ||
|
Unavailable |
|||
|
#220
Flexible Adaptor
706600084
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
CVT Filter
706600419
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#250
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#255
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Duct Fitting
707002573
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#265
CVT Cooling Duct
706600396
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Duct Fitting
706600397
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#271
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#275
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#410
Clutch Lever
707002891
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#420
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#430
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#470
Shift Cable Lever
707002934
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#475
Grommet
293720109
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#480
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Flat Washer 10 mm
234001410
|
$1.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Lever Support
707003601
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
Flat Washer M8
250200158
|
$2.19 | ||
|
Unavailable |
|||
|
#502
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#503
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#505
Cable Support
707002038
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#506
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#510
Lower Shifter Arm
707002268
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#512
Venturi Bushing
293900001
|
$7.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#513
Bushing
707003445
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#515
Hex. Flange Screw M8 x 60
207686044
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#516
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#520
Shifter Arm
707002374
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#521
Flanged Bushing
707000869
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#522
Bushing
707001376
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#523
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#524
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#530
Lever Arm Spring
707000750
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#540
Lever Trim
707003211
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#541
Hex. Jam Nut M8
232180491
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#550
Shifting Arm Cover
707001899
|
$14.68 | ||
|
Available to order. Add to View Price |
|||
|
#650
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#650a
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Unavailable |
|||
|
#660
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1400
Module Support
707901206
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#1405
Torx Truss Pt K40 X 16
250000759
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1410
Hex. Plastic Screw M4.8 X 16
243141630
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
