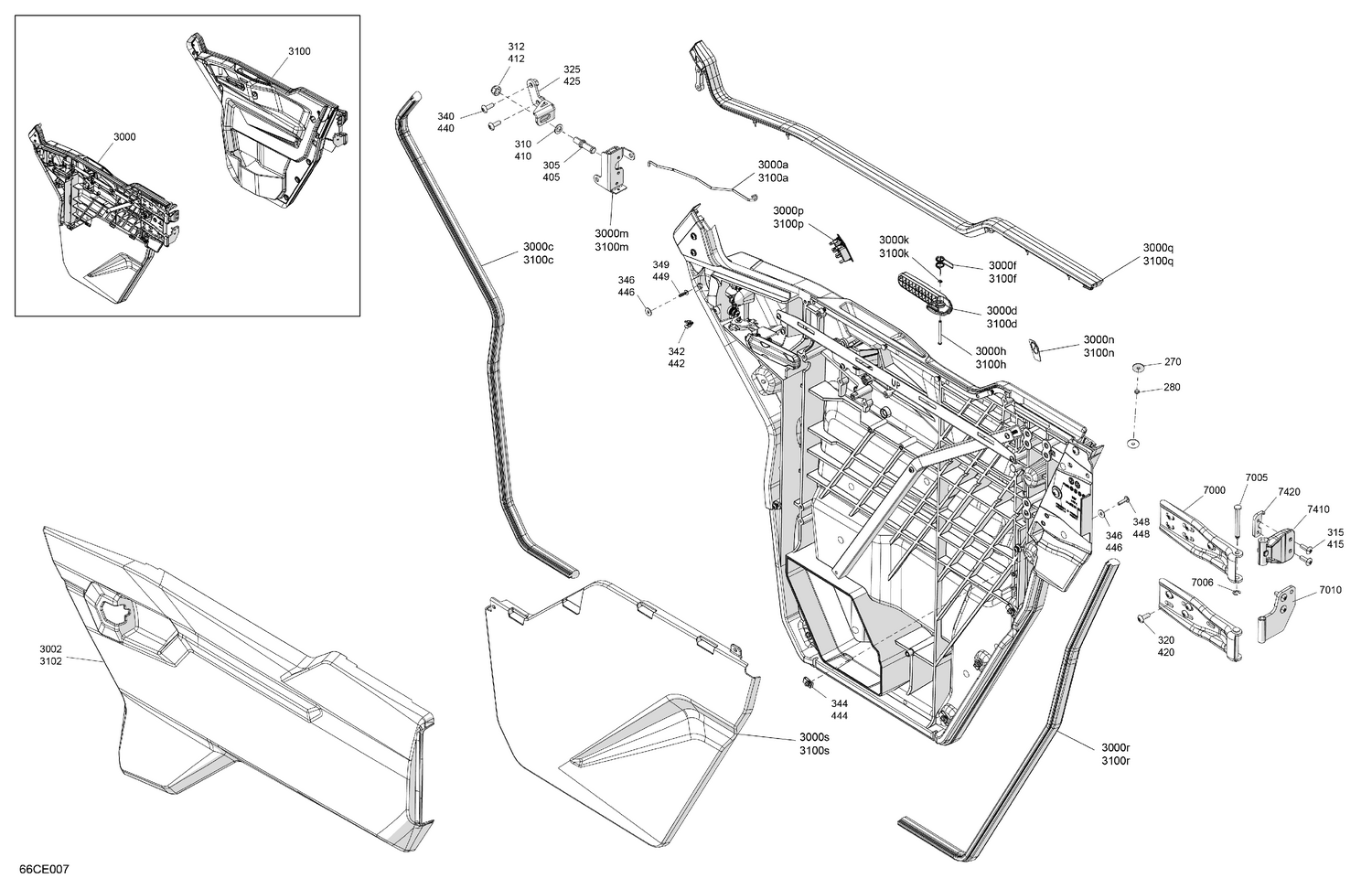

07- Enclosure Cab - Front Doors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#270
Washer M6
250200029
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#280
Bushing
708300737
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#305
Rod Latch
705800850
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Conical Spring Washer M12
250200005
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#312
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#315
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#320
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#325
LH Front Striker Support
705801086
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#342
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#344
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#346
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#348
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#349
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#405
Rod Latch
705800850
|
$29.99 | ||
|
Unavailable |
|||
|
#410
Conical Spring Washer M12
250200005
|
$3.39 | ||
|
Unavailable |
|||
|
#412
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
Unavailable |
|||
|
#415
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#420
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#425
RH Front Striker Support
705801097
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#440
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#442
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#444
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#446
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#448
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#449
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
Unavailable |
|||
|
#3000
LH Front Half Rigid Door
705801296
|
$1,729.99 | ||
|
Available to order. Add to View Price |
|||
|
#3000a
Guide Pin
705801452
|
$44.99 | ||
|
Unavailable |
|||
|
#3000b
Retaining Cable
705801437
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3000c
Gasket
705801382
|
$239.99 | ||
|
Unavailable |
|||
|
#3000d
Door Handle
705017152
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3000f
Handle Spring
705013062
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3000g
Handle Axle
705207440
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3000h
Guide Pin
705801393
|
$44.99 | ||
|
Unavailable |
|||
|
#3000j
External Retaining Ring
705601875
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#3000k
External Retaining Ring
705602261
|
$3.79 | ||
|
Unavailable |
|||
|
#3000m
LH Front Door Latch
705801464
|
$199.97 | ||
|
Available to order. Add to View Price |
|||
|
#3000n
LH Door Pictogram Label
704909996
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#3000p
Plug Carling
710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#3000q
LH Upper Door Trim
705800913
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#3000r
LH Interior Door Panel
705801384
|
$1,069.99 | ||
|
Unavailable |
|||
|
#3000s
LH Lower Door Panel
705800716
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#3002
Hyper Silver, LH Upper Door Panel
705801408
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#3100
RH Front Half Rigid Door
705801297
|
$1,729.99 | ||
|
Available to order. Add to View Price |
|||
|
#3100a
Guide Pin
705801453
|
$44.99 | ||
|
Unavailable |
|||
|
#3100b
Retaining Cable
705801437
|
$9.99 | ||
|
Unavailable |
|||
|
#3100c
Gasket
705801382
|
$239.99 | ||
|
Unavailable |
|||
|
#3100d
Door Handle
705017152
|
$15.49 | ||
|
Unavailable |
|||
|
#3100f
Handle Spring
705013062
|
$14.99 | ||
|
Unavailable |
|||
|
#3100g
Handle Axle
705207440
|
$14.49 | ||
|
Unavailable |
|||
|
#3100h
Guide Pin
705801393
|
$44.99 | ||
|
Unavailable |
|||
|
#3100j
External Retaining Ring
705601875
|
$4.09 | ||
|
Unavailable |
|||
|
#3100k
External Retaining Ring
705602261
|
$3.79 | ||
|
Unavailable |
|||
|
#3100m
RH Front Door Latch
705801465
|
$199.97 | ||
|
Available to order. Add to View Price |
|||
|
#3100n
RH Door Pictogram Label
704909998
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#3100p
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#3100q
RH Upper Door Trim
705800914
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#3100r
RH Interior Door Panel
705801386
|
$1,069.99 | ||
|
Unavailable |
|||
|
#3100s
RH Lower Door Panel
705800717
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#3102
Hyper Silver, RH Upper Door Panel
705801409
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#7000
Door Hinge
705800751
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7005
Hinge Pin
705800781
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#7006
Retaining Ring
293370125
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#7010
Lower Hinge
705801025
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7410
Upper Door Hinge
705800802
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7420
Support
705210255
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
