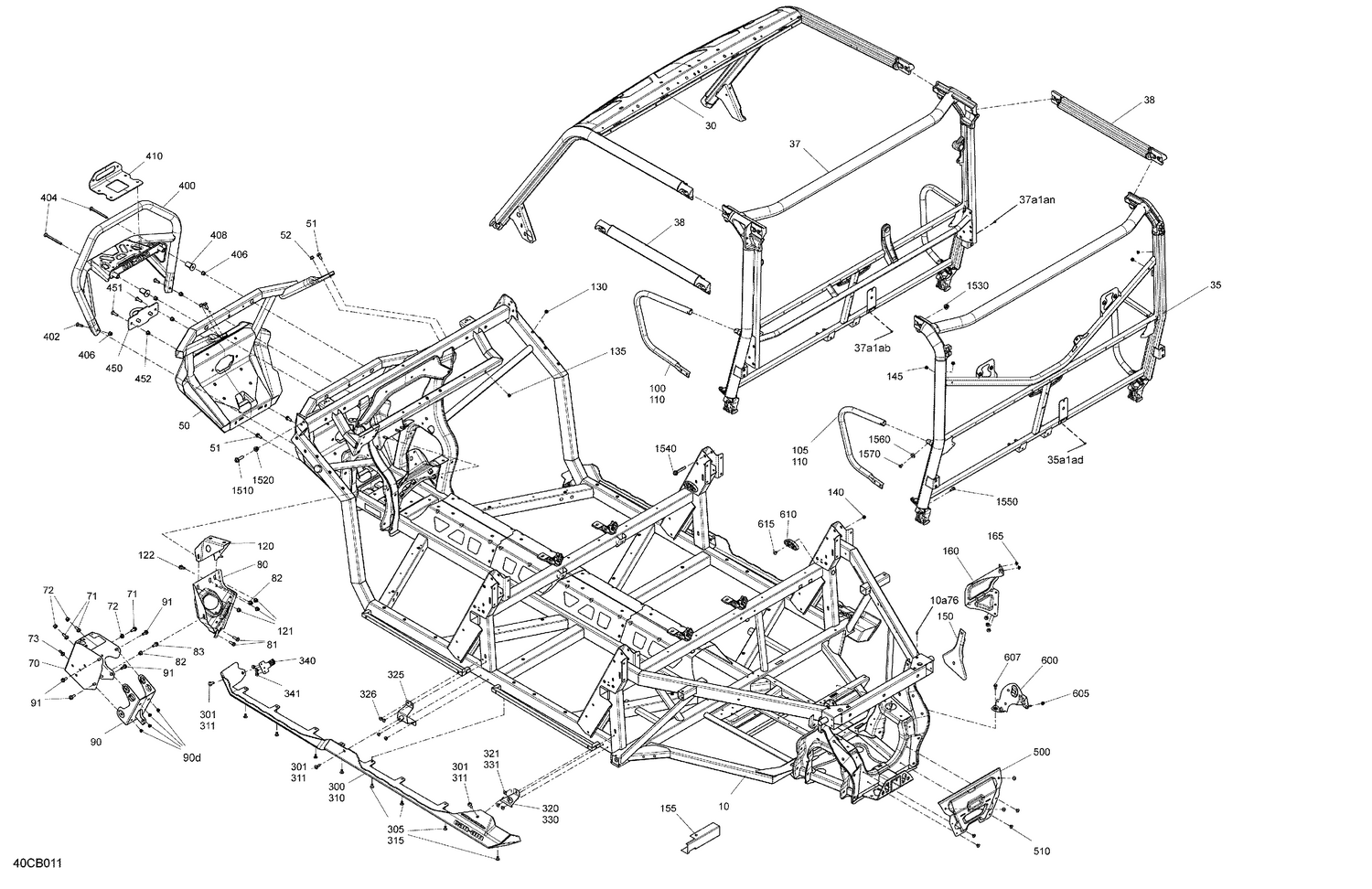

06- Frame - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Deep Black, Chassis Kit
715008375
Superseded by 715009071
|
$2,589.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a76
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Front Cage Service Kit
715008358
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Liquid Titan, Front Cage Service Kit
715008360
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Deep Black, Rear Cage Service Kit
715008362
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Liquid Titan, Rear Cage Service Kit
715008364
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#35a1ad
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#37
Deep Black, Central Cage Service Kit
703501188
Superseded by 715009273
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Liquid Titan, Central Cage Service Kit
705210412
Superseded by 715009274
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#37a1ab
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#37a1an
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#38
Deep Black, Cage Extension
705209848
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Liquid Titan, Cage Extension
705210411
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Deep Black, Front Bumper
705207588
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Module Support
705209388
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#73
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#80
Power Steering Support
705208741
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#82
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#83
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#90
Steering Column Support
705209190
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#90d
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#100
Deep Black, LH Protector Tube
705204594
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#100
Liquid Titan, LH Side Protector
705210149
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#105
LH Side Protect
705204590
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#105
Liquid Titan, LH Rear Guard
705210548
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#110
Deep Black, RH Protector Tube
705204592
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#110
Liquid Titan, RH Side Protector
705210150
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#120
Support
705208742
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#121
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#122
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#130
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#135
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#140
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#145
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#150
Heat Shield
705014849
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#155
Heat Shield
705015496
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#160
Heat Shield
707002709
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#165
Pop Rivet 3/16"
293150103
|
$0.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Deep Black, LH Guard Panel
705208715
|
$276.49 | ||
|
Available to order. Add to View Price |
|||
|
#301
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#305
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#310
Deep Black, RH Guard Panel
705208716
|
$276.49 | ||
|
Available to order. Add to View Price |
|||
|
#311
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#315
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Unavailable |
|||
|
#320
LH Guard Support
705206342
Superseded by 705211575
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#321
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#325
Support Guard
705207220
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#326
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#330
RH Guard Support
705206343
Superseded by 705211576
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#331
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#340
Front Guard Support
705208661
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#341
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#400
Magma Red, Front Bumper
705210151
|
$446.99 | ||
|
Available to order. Add to View Price |
|||
|
#400
Deep Black, Front Bumper
715006143
|
$350.99 | ||
|
Unavailable |
|||
|
#402
Torx Screw M8 X 30
250000886
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#404
Torx Truss M/S M8 x X 100
250001106
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#406
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#408
Spacer
705207754
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Deep Black, Winch Support
705206371
Superseded by 705211620
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
Can-Am Red, Front Tow Hook
705210289
Superseded by 705211623
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#451
Torx Screw M8 X 30
250000886
|
$2.19 | ||
|
Unavailable |
|||
|
#452
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#500
Rear Chassis Reinforcement
705207753
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#600
Voltage Regulator Support
710007522
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#605
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#607
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#610
Spacer
705208203
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#615
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#1510
Hex. Flange Screw M10 X 35
250000855
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#1520
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1530
Flange Elastic Nut M10
233201466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#1540
Hex. Flange Screw M10 X 6
207606046
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#1550
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1560
Offset Washer
705202223
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#1570
Torx Truss M6X14
250000789
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
