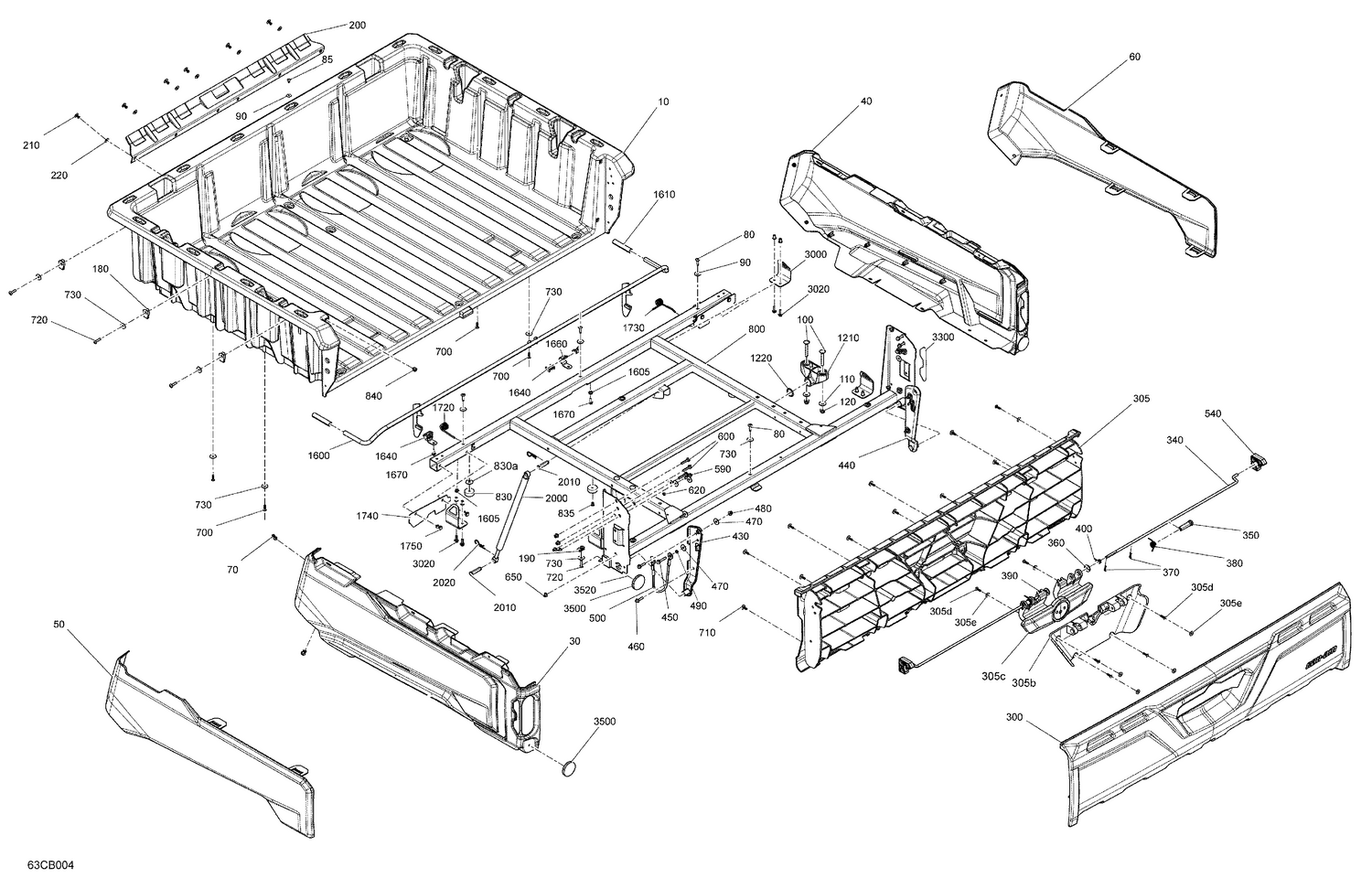

07- Body - Cargo Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Open Carrier Interior Ass'y
715008387
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
LH Panel Exterior
708304225
Superseded by 708304328
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
RH Panel Exterior
708304226
Superseded by 708304329
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Night Black, LH Open Carrier Trim
708303988
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Night Black, RH Open Carrier Trim
708303990
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Torx Screw M6 X 25
250000728
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#85
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#100
Carriage Bolt M8 X 60
207786044
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#110
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#120
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Panel Nut M6 X 1.0
250100224
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#190
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#200
Deflector
708302584
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Unavailable |
|||
|
#220
Washer
517124300
|
$0.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Outside Tailgate
708304362
Superseded by 708301227
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#305
Panel Cargo Box Ass'y
708302914
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#305b
Handle Support
708302913
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#305c
Handle
708302911
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#305d
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#305e
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#340
Handle Rod
708301500
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#350
Bushing Hinge
708301634
Superseded by 708304564
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#360
Washer
708301653
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#370
Hairpin Cotter
269800431
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#380
Spring
705009468
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Spring
705009470
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#400
Spring
705009471
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#430
LH Tailgate Support
708304219
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#440
RH Tailgate Support
708304221
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
Hex. Flange Screw M6 X 35
207663554
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#460
Hex. Flange Screw M6 X 25
207662554
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#470
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Unavailable |
|||
|
#480
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Bushing
708300737
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Cable
708301491
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#540
Latch Stopper
708304062
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#590
Hex. Flange Screw M6 X 25
207662554
|
$1.49 | ||
|
Unavailable |
|||
|
#600
Hex. Flange Screw M6 X 35
207663554
|
$2.19 | ||
|
Unavailable |
|||
|
#620
Bushing
708300737
|
$5.99 | ||
|
Unavailable |
|||
|
#650
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#700
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
Unavailable |
|||
|
#710
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#720
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#730
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Unavailable |
|||
|
#800
Open Carrier Frame
703501165
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#830
Rubber Stopper
708303134
Superseded by 708304601
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#830a
Washer
224060251
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#835
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#840
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#1210
Support Pivot
708303735
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#1220
O-Ring
293300131
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1600
Latch Lever
708303712
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#1605
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1610
Cap Latch Lever
708300358
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#1640
Half Ring
705500033
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#1660
Clamp Retainer
708301479
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#1670
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1720
LH Torsion Spring
708303190
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#1730
RH Torsion Spring
708303191
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#1740
Deflector
708303097
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#1750
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#2000
Gas Shock Absorber
715007129
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2010
Pin Clevis
250400098
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2020
Hair Pin
414575600
|
$1.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3000
Retaining Plate
708301480
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#3020
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3300
Reflector
704905074
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3500
Red, Reflector
705016982
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3520
Elastic Stop Nut M5
232551414
|
$0.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
