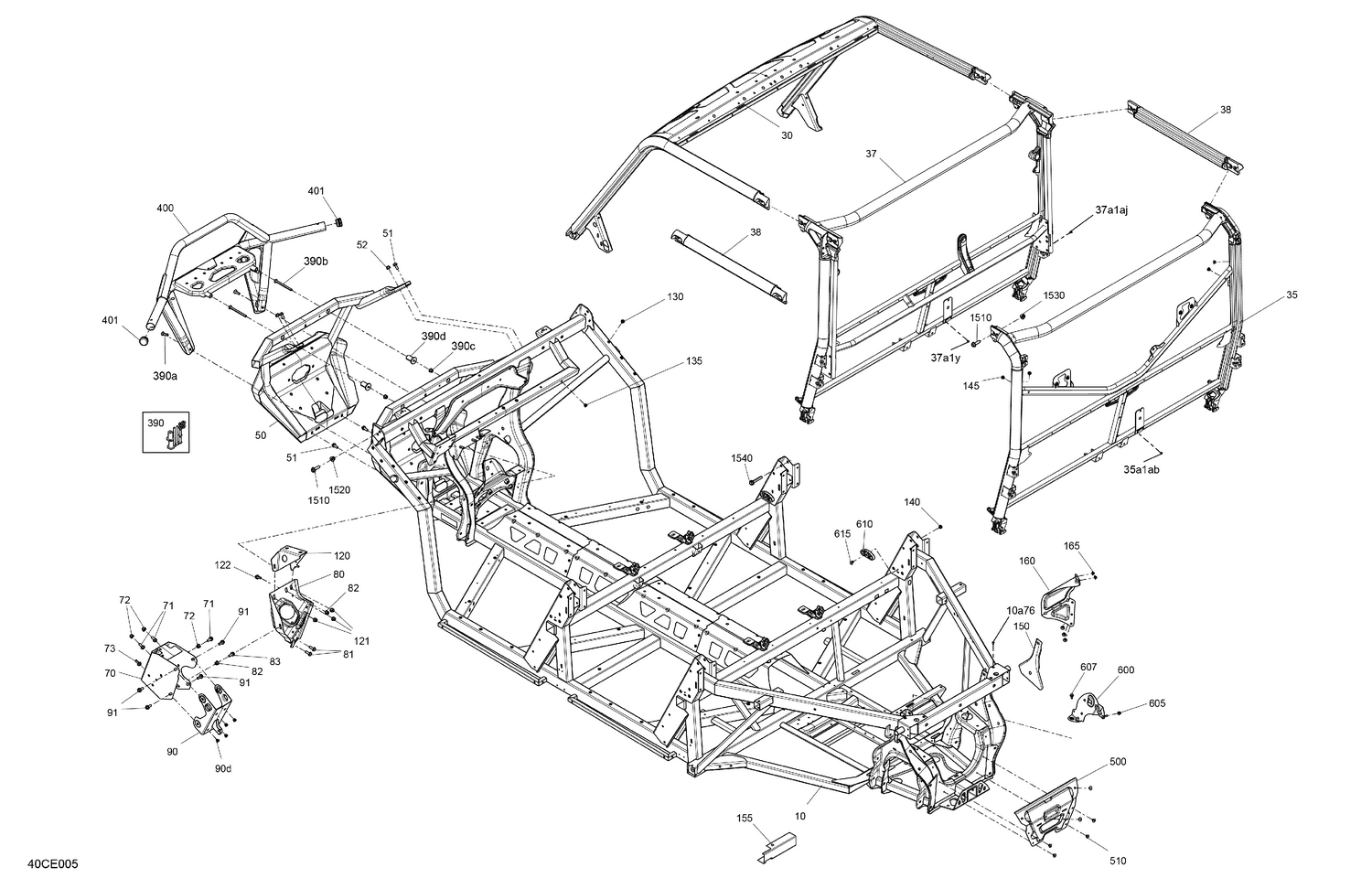

06- Frame - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Deep Black, Chassis Kit
715009071
|
$2,589.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a76
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Front Cage Service Kit
715008358
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Rear Cage Service Kit
715010336
|
$649.99 | ||
|
Unavailable |
|||
|
#35a1ab
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#37
Deep Black, Central Cage Kit
715010136
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#37a1y
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#37a1aj
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#38
Deep Black, Cage Extension
705209848
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Deep Black, Front Bumper
705207588
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Module Support
705212644
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#73
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#80
Power Steering Support
705208741
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#82
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#83
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#90
Steering Column Support
705209190
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#90d
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#120
Module Support
705211549
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#121
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#122
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#130
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#135
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#140
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#145
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#150
Heat Shield
705014849
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#155
Heat Shield
705015496
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#160
Heat Shield
707002709
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#165
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#390
Bumper Ass'y Kit
708200976
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#390a
Torx Screw M8 X 30
250000886
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#390b
Torx Truss M/S M8 x X 100
250001106
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#390c
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#390d
Spacer
705207754
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#400
Liquid Titan, Front Bumper
705212081
|
$291.49 | ||
|
Available to order. Add to View Price |
|||
|
#401
Cap
705202455
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Rear Chassis Reinforcement
705207753
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Black, Pop Rivet 3/16 X ,550
293150292
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#600
Voltage Regulator Support
710009501
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#605
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#607
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#610
Spacer
705208203
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#615
Black, Pop Rivet 3/16 X ,550
293150292
|
$1.09 | ||
|
Unavailable |
|||
|
#1510
Hex. Flange Screw M10 X 35
250000855
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#1520
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1530
Flange Elastic Nut M10
233201466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#1540
Hex. Flange Screw M10 X 6
207606046
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
