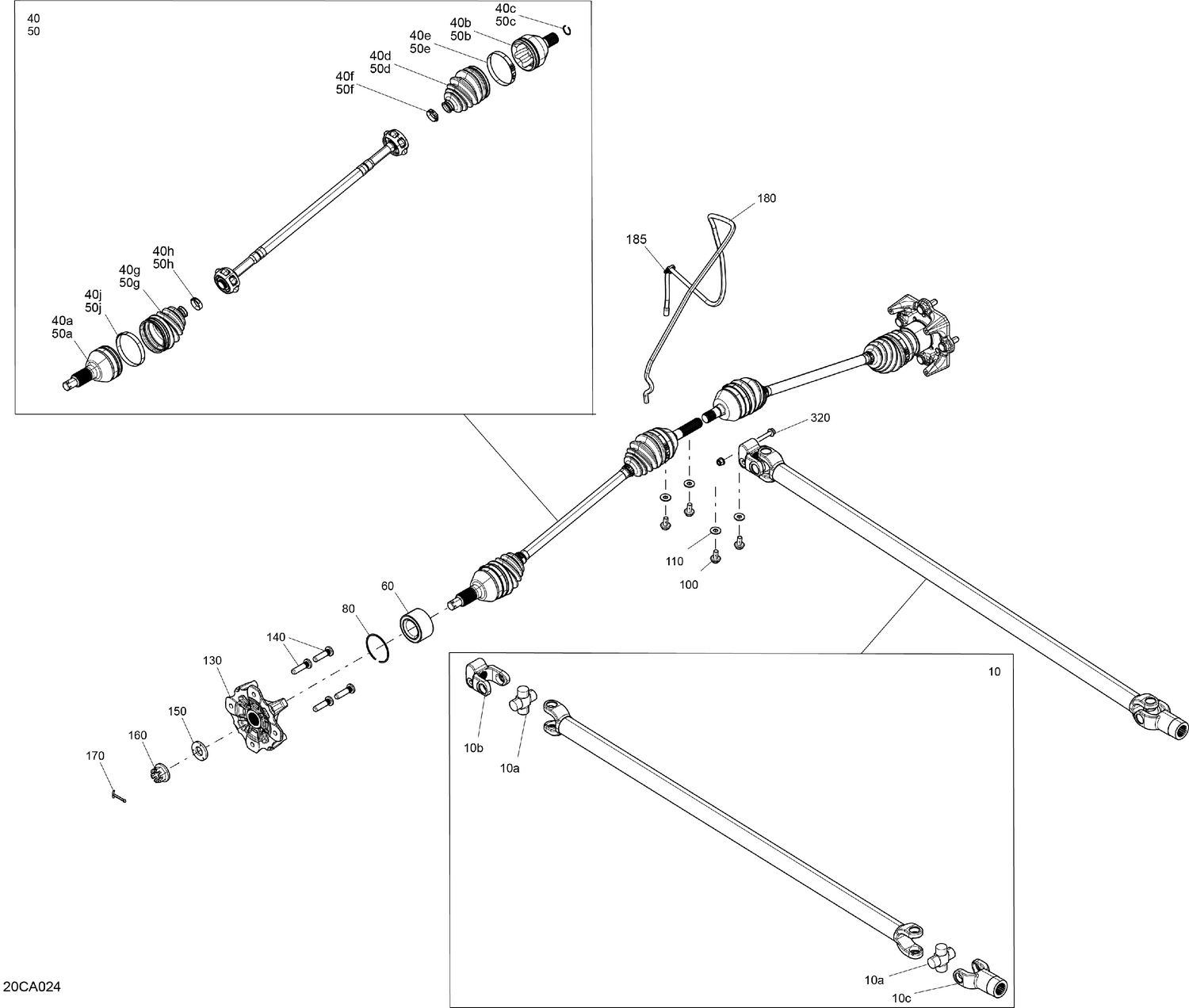

04- Drive - Front Section - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Axle Ass'y
705402125
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#10a
J-Joint Cross Kit
715900402
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Fixed Yoke
715900400
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Yoke
715900401
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
RH Front - Premium CV Axle
705401936
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#40a
JOINT_CV EXT - Call your local BRP dealership
715900440
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#40b
RH Plunging Joint
715900441
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#40c
Circlip Joint
705401349
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#40d
Boot Kit, Wheel Side
705401345
|
$42.49 | ||
|
Unavailable |
|||
|
#40e
Oetiker Clamp
715900282
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#40f
Oetiker Clamp, Small
715900283
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#40g
Boot Kit, Différential Side
705401355
|
$42.49 | ||
|
Unavailable |
|||
|
#40h
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40j
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
LH Front - Premium CV Axle
705401937
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#50a
JOINT_CV EXT - Call your local BRP dealership
715900440
|
$244.99 | ||
|
Unavailable |
|||
|
#50b
lEFT PLUNGING JOINT - Call your local BRP dealership
715900442
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#50c
Circlip Joint
705401349
|
$6.50 | ||
|
Unavailable |
|||
|
#50d
Boot Kit, Wheel Side
705401345
|
$42.49 | ||
|
Unavailable |
|||
|
#50e
Oetiker Clamp
715900282
|
$5.39 | ||
|
Unavailable |
|||
|
#50f
Oetiker Clamp, Small
715900283
|
$5.39 | ||
|
Unavailable |
|||
|
#50g
Boot Kit, Différential Side
705401355
|
$42.49 | ||
|
Unavailable |
|||
|
#50h
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
Unavailable |
|||
|
#50j
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Unavailable |
|||
|
#60
Ball Bearing
293350126
Superseded by 293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Screw M10 X 25
207502546
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
Conical Spring Washer 10 mm
234201474
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Wheel Hub
705502338
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#150
Conical Spring Washer M20
250200170
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Castle Nut M20
250100193
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#170
Cotter Pin
250400084
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#185
Clip
414227300
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#320
Hex. Flange Screw M8 X 42
250001050
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#325
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
