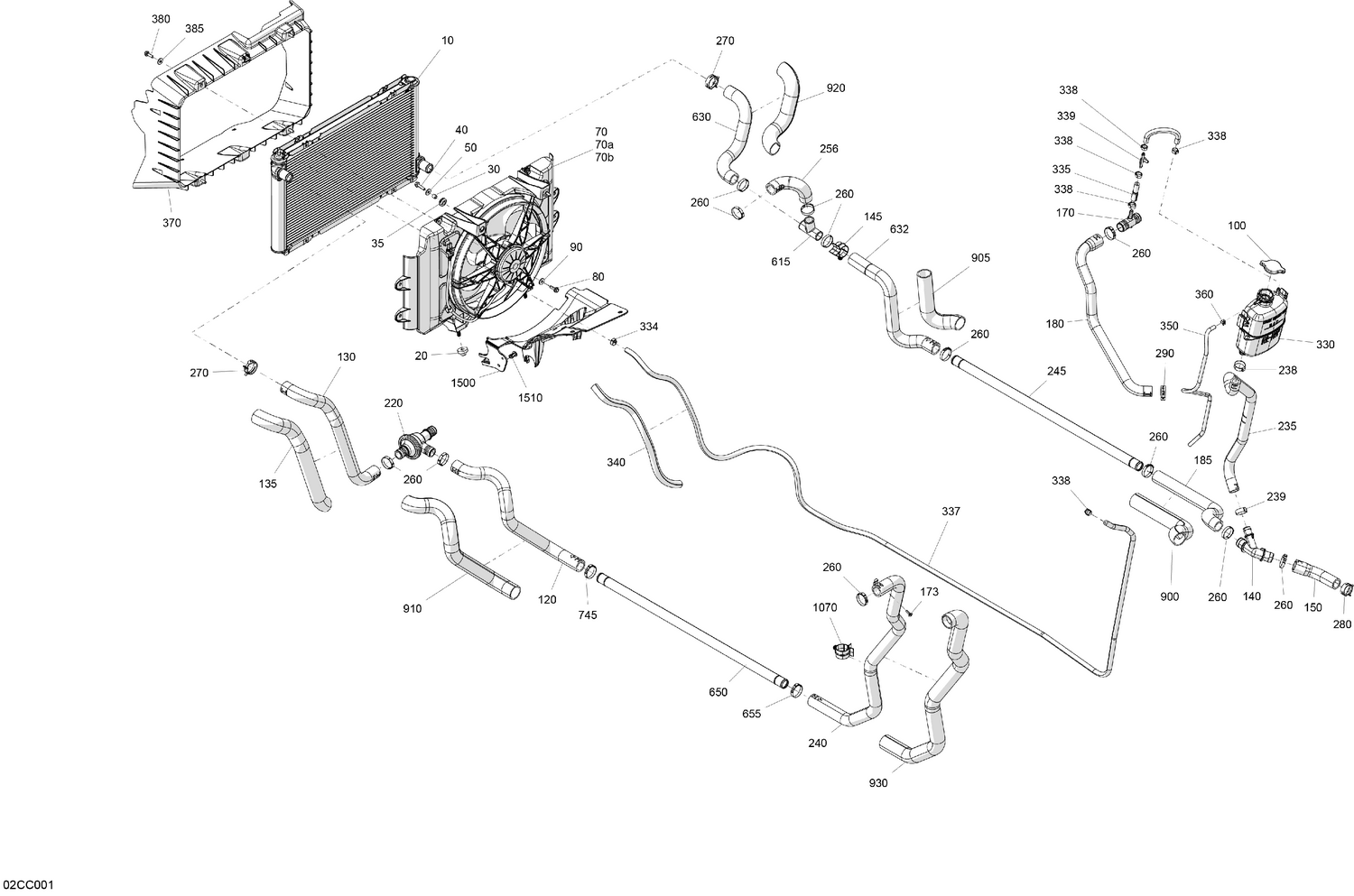

02- Engine - Cooling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Radiator
709200951
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Grommet
709200948
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bushing
293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#70
Fan Ass'y
709200534
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#70a
Radiator Deflector Kit
715008385
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#70b
Front Radiator Deflector Ass'y
715008419
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Unavailable |
|||
|
#100
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hose
709201028
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Formed Radiator Hose IN
709201032
Superseded by 709201443
|
$16.40 | ||
|
Available to order. Add to View Price |
|||
|
#135
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Y-Fitting
509001285
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#145
Retainer
275500590
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hose Engine In
709201046
|
$16.63 | ||
|
Available to order. Add to View Price |
|||
|
#170
T-Fitting
509000510
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#173
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Hose Engine Out
709201045
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#185
Formed Engine Hose IN
709200971
Superseded by 709201441
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
Thermostat Housing
709200986
|
$96.49 | ||
|
Available to order. Add to View Price |
|||
|
#235
Hose Coolant Tank Out
709201103
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#238
Oetiker Gear Clamp
293650165
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#239
Oetiker Gear Clamp
293650165
|
$5.49 | ||
|
Unavailable |
|||
|
#240
Formed T Fitting Hose
709200969
Superseded by 709201446
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#245
Heater Tubing
709200657
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#256
Formed Thermostat Hose OUT
709201033
Superseded by 709201439
|
$16.40 | ||
|
Available to order. Add to View Price |
|||
|
#260
Gear Clamp
509000162
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#270
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#280
Norma Spring Clamp
293650108
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#290
Norma Spring Clamp
293650109
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#330
Coolant Tank
709200998
Superseded by 709201323
|
$80.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#334
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#335
Bleeding Hose
709200606
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#337
Hose 6,35 Mm Id 4000Mm Long
709201098
Superseded by 219704547
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#338
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#339
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#340
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#350
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#360
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#370
Front Radiator Deflector Ass'y
715008419
|
$52.99 | ||
|
Unavailable |
|||
|
#380
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Unavailable |
|||
|
#385
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Unavailable |
|||
|
#615
T-Fitting
509001313
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#630
Formed Radiator Hose OUT
709201030
Superseded by 709201440
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#632
Formed Radiator Hose OUT
709201029
Superseded by 709201442
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#650
Heater Tubing
709200657
|
$19.49 | ||
|
Unavailable |
|||
|
#655
Gear Clamp
509000162
|
$7.49 | ||
|
Unavailable |
|||
|
#745
Gear Clamp
509000162
|
$7.49 | ||
|
Unavailable |
|||
|
#900
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Unavailable |
|||
|
#905
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Unavailable |
|||
|
#910
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Unavailable |
|||
|
#920
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Unavailable |
|||
|
#930
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Unavailable |
|||
|
#1070
Retainer
275500590
|
$9.69 | ||
|
Unavailable |
|||
|
#1500
Front Air Deflector
709201036
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
