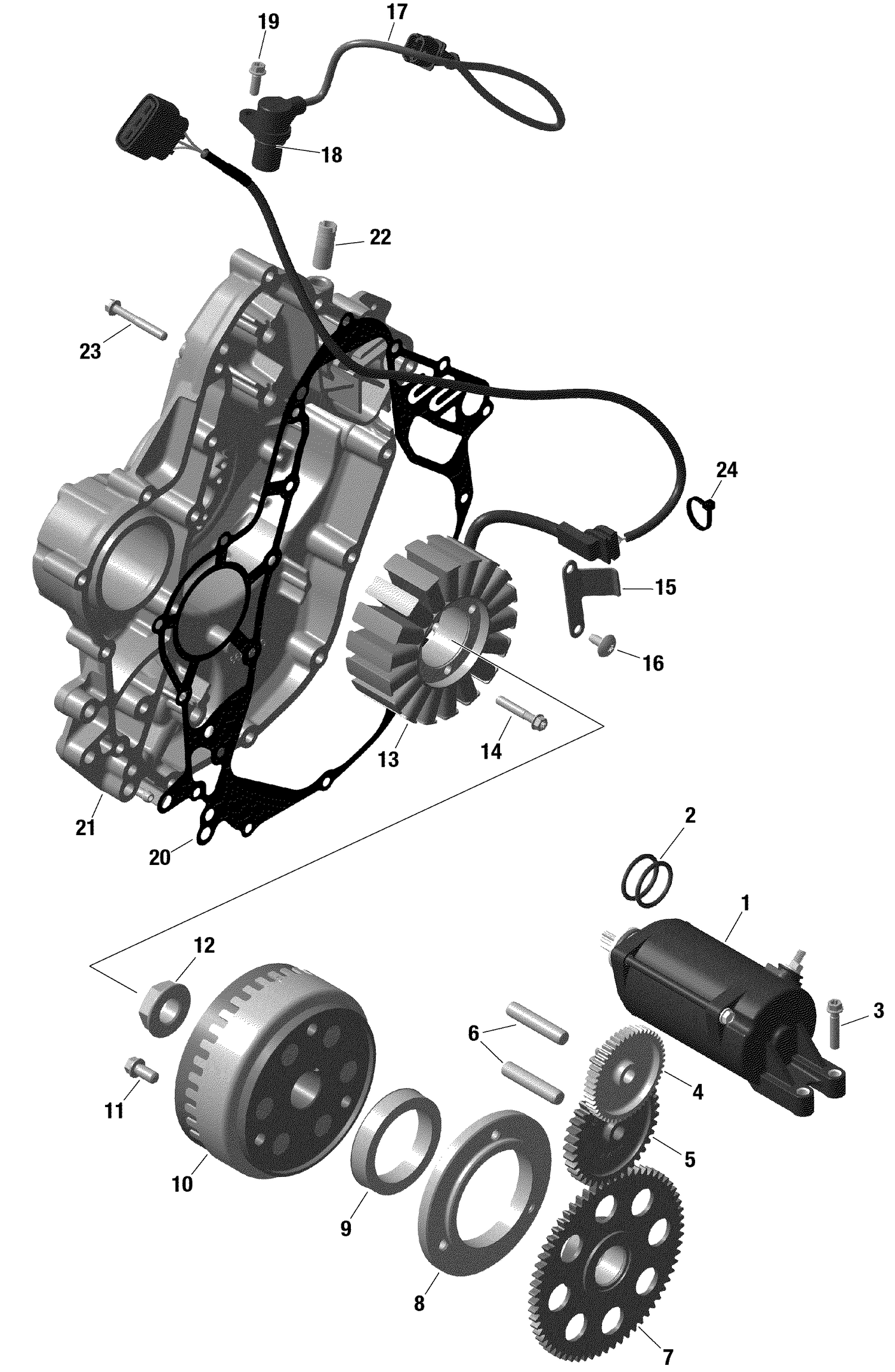

01- Rotax - Magneto And Electric Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Starter Ass'y
420893838
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
420250140
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M6 X 30
420840888
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
Starter Double Gear 11/49 T
420634741
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Intermediate Gear 37 Teeth
420634630
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Location Pin 10 M6x50
420229302
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
Free Wheel Gear 64 Teeth
420434236
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Sparg Clutch Housing
420659263
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Sprag Clutch
420659113
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Flywheel Ass'y
420686897
|
$601.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M8 X 16
420440854
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hex. Flange Nut M20 X 1.5
420842340
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
Stator 14V 650W
420685633
Superseded by 420685924
|
$319.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cable Cover
420251281
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Torx Screw M6X13
420240051
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
Crankshaft Position Sensor Ass'y
420966570
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-Ring
420431580
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Gasket
420651261
Superseded by 420651262
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Ignition Cover Ass'y
420686851
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Hose Nipple
420256332
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
Tie Wrap 142X 3.2mm
420866722
|
$0.18 | ||
|
Available to order. Add to View Price |
|||
