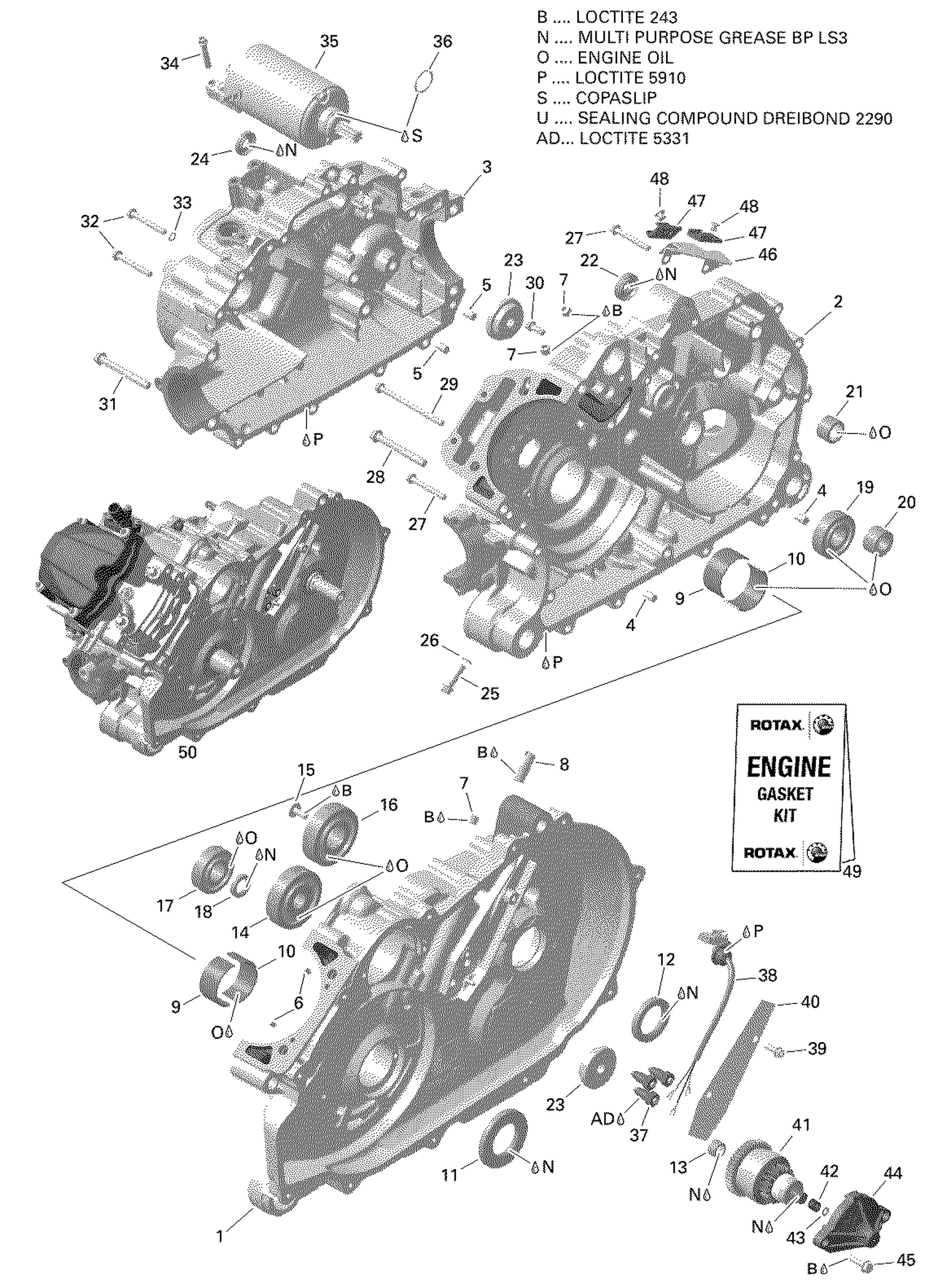

01- Rotax - Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1>23
Housing Ass'y
420296769
|
$1,288.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
Not Available As Spare Part - Crankcase CVT Side
|
|||
|
Unavailable |
|||
|
#2
Not Available As Spare Part - Crankcase Magneto Side
|
|||
|
Unavailable |
|||
|
#3
Not Available As Spare Part - Magneto Cover
|
|||
|
Unavailable |
|||
|
#4
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Unavailable |
|||
|
#6
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Plug Screw M10 X 1
420641323
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hose Nipple
420256332
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Plain Bearing
420233960
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Plain Bearing
420233965
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Seal
420630152
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
Oil Seal
420950089
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Needle Bushing
420232482
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Ball Bearing
420632290
Superseded by 420632295
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Bearing
420932825
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ball Bearing 6204
420932433
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Oil Seal
420250130
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ball Bearing 6204
420932433
|
$23.49 | ||
|
Unavailable |
|||
|
#20
Needle Bushing
420232085
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Needle Bushing
420832240
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil Seal
420250450
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
Spacer
420647312
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Oil Seal
420650315
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Torx Flange Screw M8 X 25
420440372
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
Sealing Ring
420950141
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
Torx Flange Screw M8 X 65
420440402
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
Torx Flange Screw M6 X 85
420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Not Available As Spare Part - Flange Torx Screw M8 X 65
|
|||
|
Unavailable |
|||
|
#32
Not Available As Spare Part - Flange Torx Screw M6 X 45
|
|||
|
Unavailable |
|||
|
#33
Not Available As Spare Part - Sealing ring
|
|||
|
Unavailable |
|||
|
#34
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#35>36
Electric Starter
420684283
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Not Available As Spare Part - O-Ring
|
|||
|
Unavailable |
|||
|
#37
Position Switch
420241856
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Wiring Harness
420265831
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Unavailable |
|||
|
#40
Cover Sheet
420251290
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#41
Starter Drive Ass'y
420294811
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Spring
420938204
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#43
Washer 5.3
420927571
Superseded by 420927574
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Reduction Cover Gear
420610891
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Hex. Screw M6 X 25
420240034
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Retaining Plate
420251491
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#47
Connector Bracket
420260590
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#48
Blind Rivet
420243010
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#49
Gasket Set ( Engine)
420685125
|
$217.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
Long Block 427
420042720
|
$3,779.99 | ||
|
Available to order. Add to View Price |
|||
