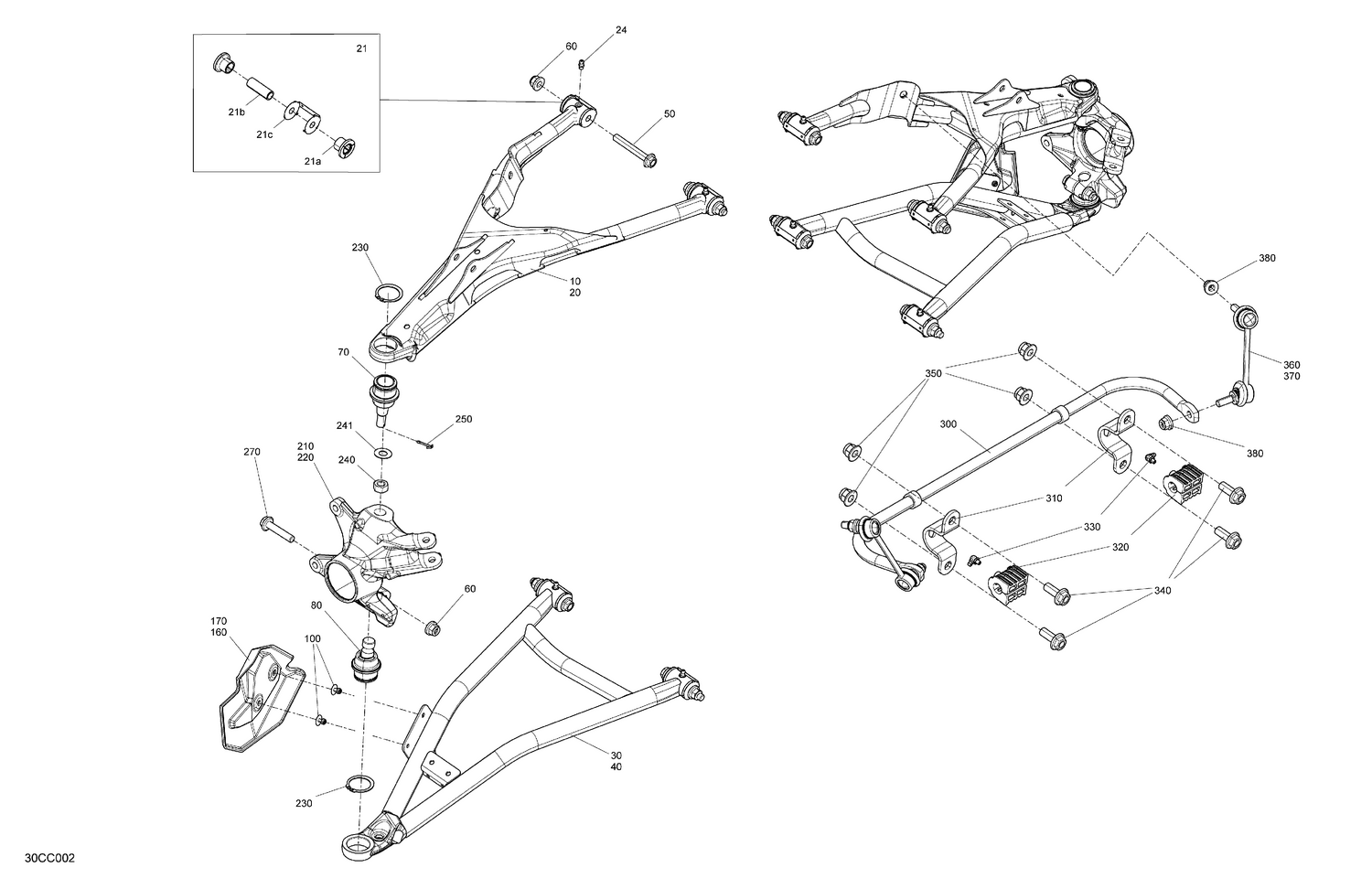

05- Suspension - Front Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Deep Black, LH Upper Suspension Arm Ass'y With Balljoint
706204819
Superseded by 715010609
|
$259.99 | ||
|
Unavailable |
|||
|
#10
Magma Red, LH Upper Suspension Arm Ass'y With Balljoint
706205150
Superseded by 715010631
|
$259.99 | ||
|
Unavailable |
|||
|
#20
Deep Black, RH Upper Suspension Arm Ass'y With Balljoint
706204820
Superseded by 715010610
|
$259.99 | ||
|
Unavailable |
|||
|
#20
Magma Red, RH Upper Suspension Arm Ass'y With Balljoint
706205151
Superseded by 715010632
|
$259.99 | ||
|
Unavailable |
|||
|
#21
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#21a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#21b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#21c
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#24
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Deep Black, LH Lower Suspension Arm Ass'y With Balljoint
706204821
Superseded by 715010601
|
$259.99 | ||
|
Unavailable |
|||
|
#30
Magma Red, LH Lower Suspension Arm Ass'y With Balljoint
706205152
Superseded by 715010624
|
$259.99 | ||
|
Unavailable |
|||
|
#40
Deep Black, RH Lower Suspension Arm Ass'y With Balljoint
706204822
Superseded by 715010602
|
$259.99 | ||
|
Unavailable |
|||
|
#40
Magma Red, RH Lower Suspension Arm Ass'y With Balljoint
706205153
Superseded by 715010625
|
$259.99 | ||
|
Unavailable |
|||
|
#50
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Ball Joint
706203084
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#160
RH CV joint Guard
706202135
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#170
LH CV joint Guard
706202134
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#210
LH Knuckle
706205517
Superseded by 706205046
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#220
RH Knuckle
706205518
Superseded by 706205047
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Hex Nut M12
250100239
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Hex. Flange Screw M10 X 55
207605546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#300
Stabilizer Bar Ass'y
706204869
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#310
Clamp
706203437
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#320
Stabilizer Bar Bushing
706205240
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#330
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#340
Hex. Flange Screw DIN.6921
250000951
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#360
LH Link Stabilizer Bar
706204803
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#370
RH Link Stabilizer Bar
706204804
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#380
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
