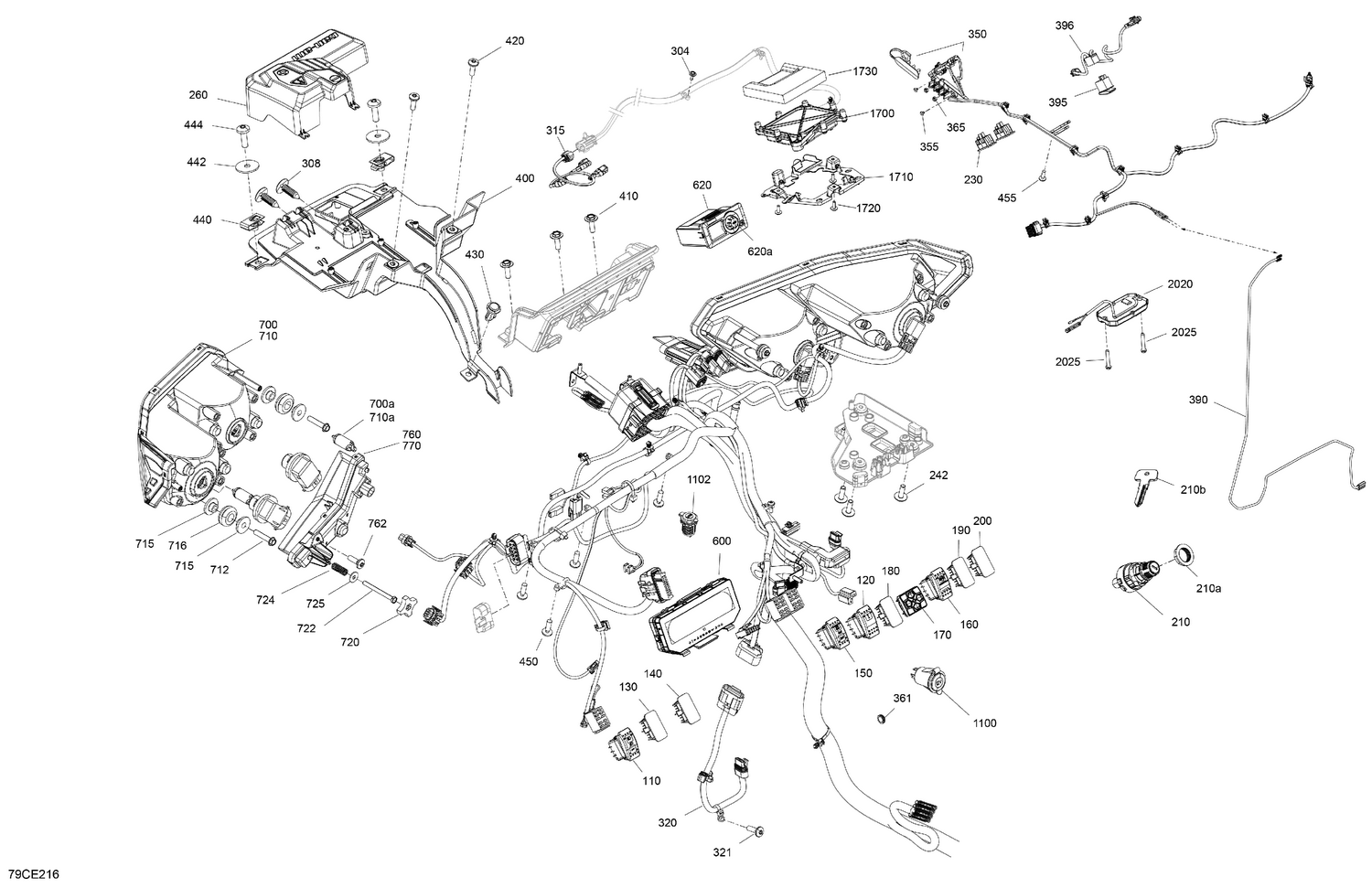

08- Electric - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#110
Light Switch
710004492
|
$47.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Switch Winch
710002052
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#130
Plug Carling
710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#140
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#150
Differential Switch
710006040
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Differential Lock Switch
710005470
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#170
Multifonction Switch
710006650
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#180
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#190
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#200
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#210
Ignition Switch
710007324
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#210a
Specialized Nut
710007923
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#210b
Blank Ignition Key
715900934
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#242
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#260
Junction Block Cover
710006707
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#304
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#308
Black, Dart
293730006
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#315
Front Differential Wiring Harness
710006807
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Throttle Pedal Harness
710006837
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#321
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350
Window/Wiper Harness
710004462
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#355
Pop Rivet 3/16”
293150092
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#361
Boot
710002743
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#365
Brass Elastic Stop Nut M6
232561200
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#390
Wiper Harness
710004466
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#395
Wiper Switch
710004941
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#396
Wiper Harness
710004942
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#400
Wiring Harness Support
710006649
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#420
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#430
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#442
Washer M6
250200029
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#444
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#450
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#455
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#600
MID Multifunction Gauge
710008295
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#620
A/C Control Unit
710009400
|
$669.99 | ||
|
Available to order. Add to View Price |
|||
|
#620a
Replacement Control Knob
715900906
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#700
LH Beam
710008316
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Halogen Bulb H8 12V 35W Blue
715900653
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#710
RH Beam
710008317
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#710a
Halogen Bulb H8 12V 35W Blue
715900653
|
$46.49 | ||
|
Unavailable |
|||
|
#712
Hex. Flange Screw K50 X 2.24 X 25
241152540
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#715
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#716
Overmolded Grommet
293720130
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#720
Handle
572106600
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#722
Hex. Screw K40 X 45
250000718
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#724
Spring
517168600
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#725
Flat Washer 4 mm, Stainless
234042600
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#760
LH Auxiliary LED Headlight
710006374
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#762
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#770
RH Auxiliary LED Headlight
710006375
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#1100
12V Power Outlet
710005374
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1102
USB Outlet
219400510
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#1700
Differential Module
710008842
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#1710
FDM Support
710005532
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#1720
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#1730
Protector Foam
710006580
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#2020
Dome Light
715002455
|
$96.49 | ||
|
Unavailable |
|||
|
#2025
Hex. Flange Screw K40 X 25
241142560
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
