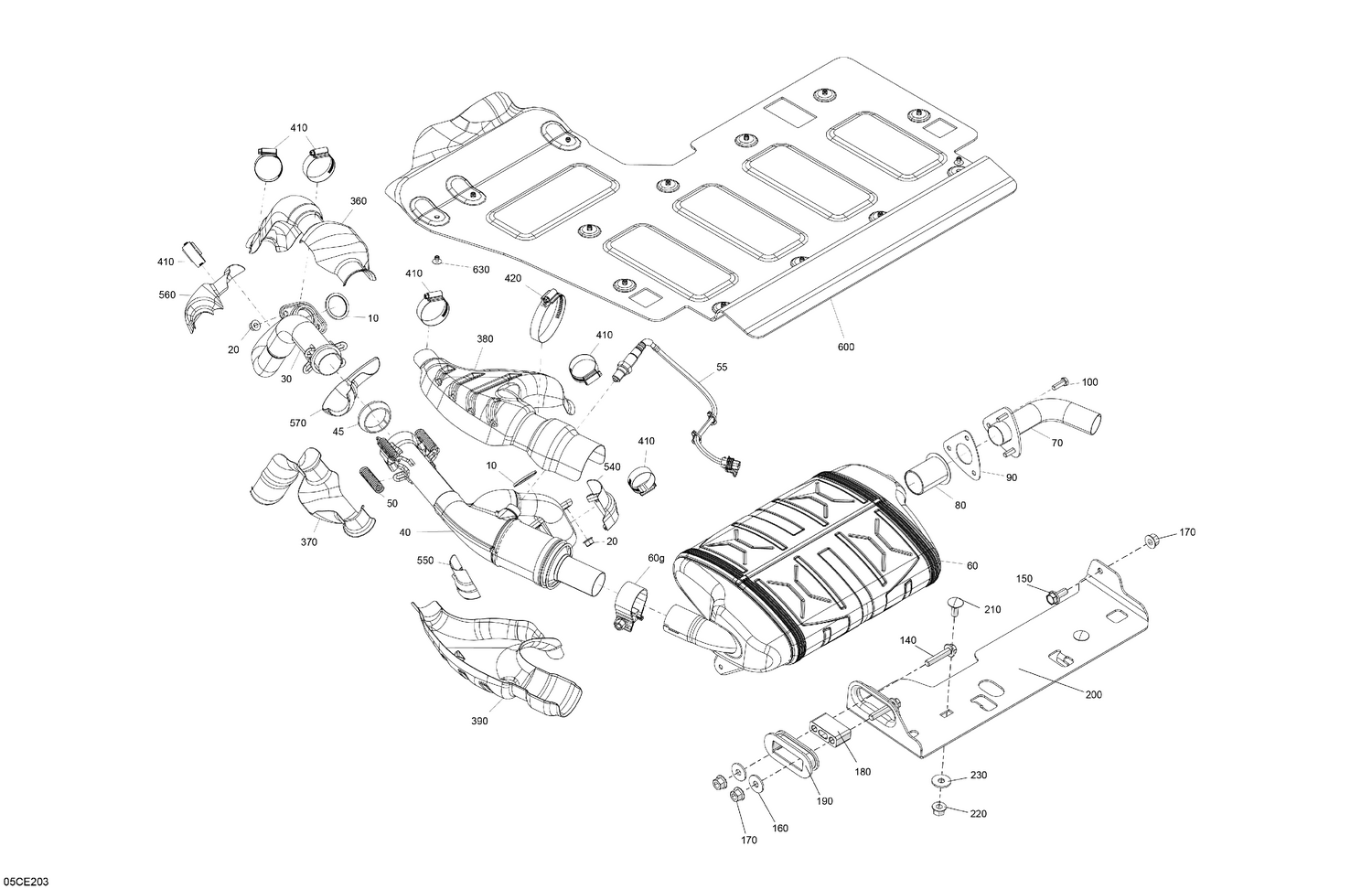

02- Engine - Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Gasket
707600317
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Front Exhaust Pipe
707602039
|
$174.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Rear Exhaust Pipe
707603331
|
$593.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
Exhaust Gasket
707601033
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Spring
707601834
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Oxygen Sensor
707600872
|
$149.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Exhaust Muffler Ass'y
707603495
|
$836.99 | ||
|
Available to order. Add to View Price |
|||
|
#60g
Exhaust Pipe Clamp
293650228
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Exhaust Pipe Out
707603105
|
$94.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Spark Arrester
707601803
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Gasket
707602731
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Screw Cap DIN.933
207182546
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Screw M8 X 40
207684044
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#170
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#180
Muffler Stopper
707603214
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#190
Rubber Bumper
707603330
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#200
Exhaust Support
707603494
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#210
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#230
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
Unavailable |
|||
|
#360
Front Heat Shield
707602666
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#370
Rear Heat Shield
707602667
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#380
Upper Heat Shield
707602668
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Lower Heat Shield
707602669
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#410
Murray Gear Clamp
293650305
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#420
Tridon Gear Clamp
293650250
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#540
Upper Rear Heat Shield
707602670
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#550
Lower Rear Heat Shield
707602671
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Front Upper Heat Shield
707602672
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#570
Lower Front Heat Shield
707602673
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#600
Upper Heat Shield
707603319
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#630
Black, Pop Rivet 3/16 X ,550
293150292
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
