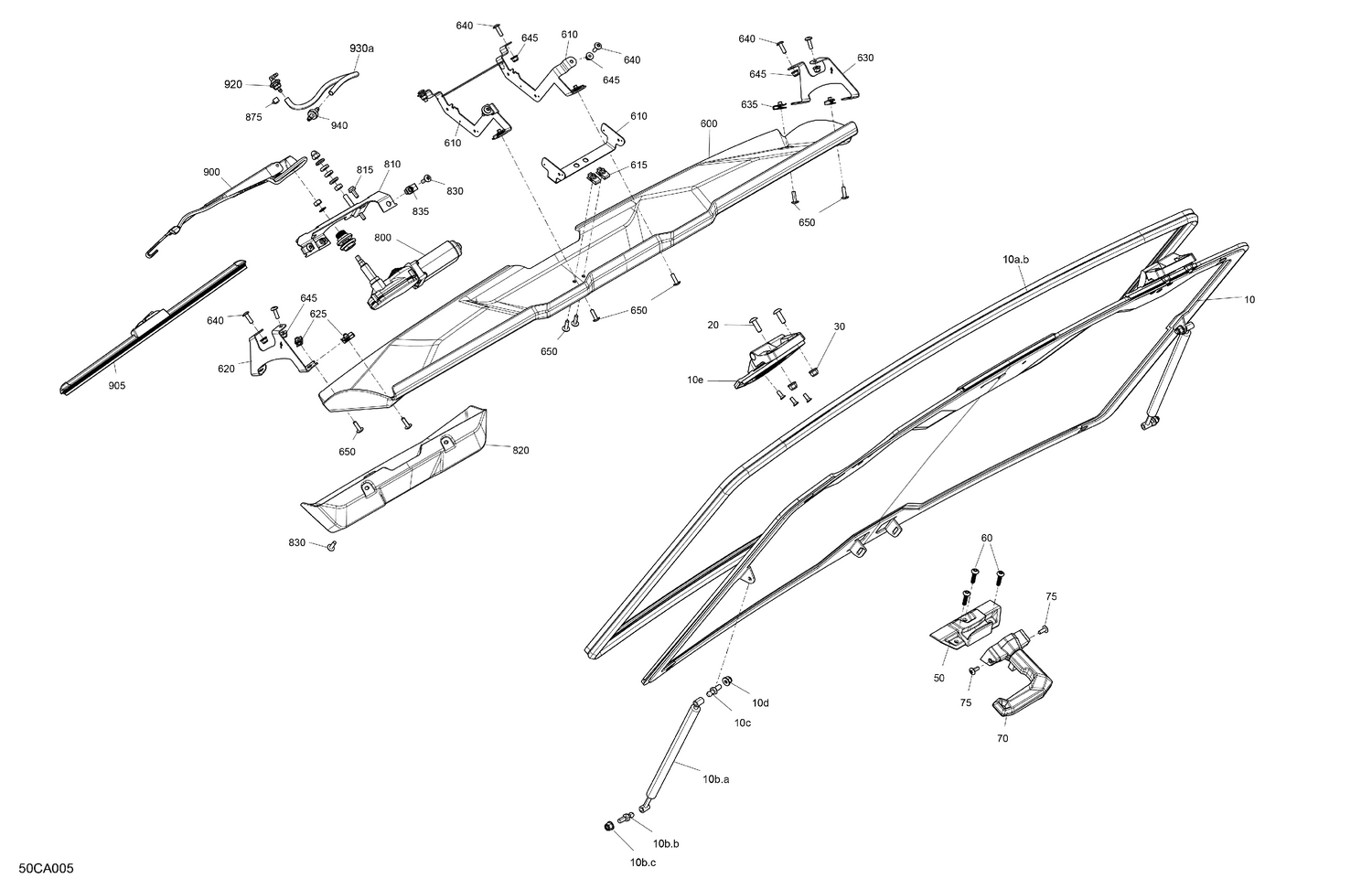

07- Body - Windshield Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Windshield Ass'y
715002942
|
$1,299.99 | ||
|
Unavailable |
|||
|
#10a.b
Neoprene Seal
705800006
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a.b
Was 293250240 Neoprene Seal
219704451
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b.a
Shock
705800030
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b.b
Ball Head Stud
250300039
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#10b.c
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10c
Ball Head Stud
250300039
|
$7.69 | ||
|
Unavailable |
|||
|
#10d
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#10e
Windshield Hinges
705800082
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Windshield Ass'y
715002942
|
$1,299.99 | ||
|
Unavailable |
|||
|
#20
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#50
Handle Anchor
705800008
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Screw Torx M6.81 X 30
250001007
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Mobile Handle Ass'y
705800085
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
Torx Truss M8 X 16
250000881
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#600
Radio Support Kit
715006524
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Support
705800060
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#615
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#620
LH Support
705800108
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#625
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#630
RH Support
705800109
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#635
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#640
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#645
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#650
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#800
Wiper Motor
705010657
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#810
Cover Support Ass'y
705800073
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#815
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#820
Wiper Motor Trim
705800072
Superseded by 705800805
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#830
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#835
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#875
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#900
Wiper Arm
705010656
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#905
Windshield Wiper
705011443
Superseded by 705020218
|
$19.99 | ||
|
Unavailable |
|||
|
#920
90° Elbow Connector
705800103
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#930a
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#940
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
