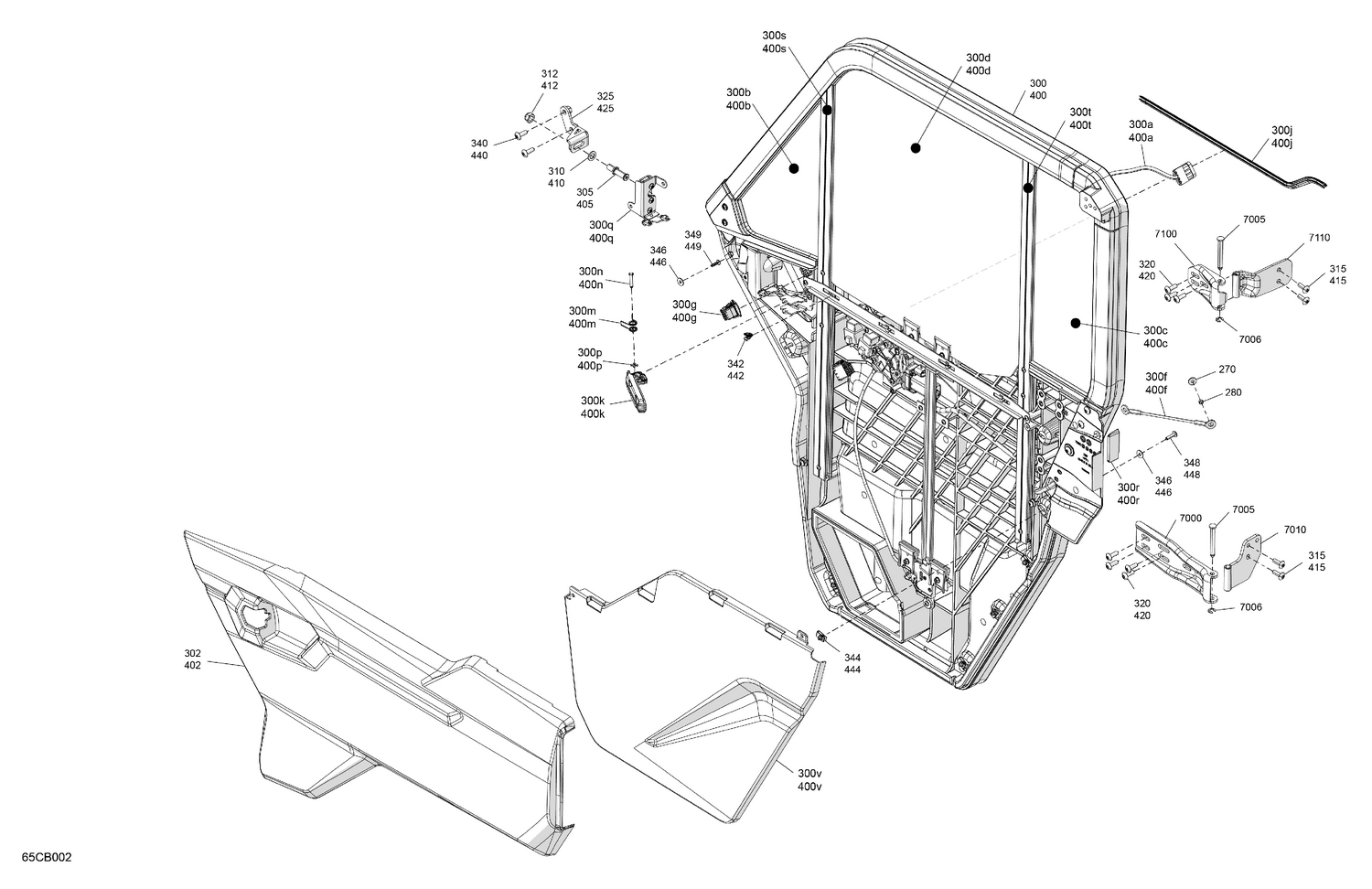

07- Enclosure Cab - Doors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#250
Door Limit Device Kit
703500982
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Washer M6
250200029
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#280
Bushing
708300737
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
LH Front Rigid Door Ass'y
705800982
Superseded by 705801088
|
$2,909.99 | ||
|
Available to order. Add to View Price |
|||
|
#300a
LH Door Wiring Harness
705800881
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#300b
Front Door Window
705800863
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#300c
Rear Door Window
705800864
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#300d
Sliding Cab Window
705800865
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#300f
Retaining Cable
705800896
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#300g
Window Switch
710004979
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#300h
Gasket
705800866
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#300j
Gasket
705800867
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#300k
Door Handle
705017152
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#300m
Handle Spring
705013062
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#300n
Handle Axle
705207440
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#300p
External Retaining Ring
705601875
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#300q
LH Latch
705800872
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#300r
Trim
705800992
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#300s
Front Window Guide Extrusion
705800722
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#300t
Rear Window Guide Extrusion
705800723
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#300u
LH Interior Door Panel
705800731
|
|||
|
Unavailable |
|||
|
#300v
LH Lower Door Panel
705800716
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#302
Asphalt Grey, LH Upper Door Panel
705800784
Superseded by 705801421
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#302
Oxford Blue Metallic, LH Upper Door Panel
705800810
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#302
Break Up Country, LH Upper Door
Panel
705800920
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#303
Gasket
705800963
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#305
Rod_Latch
705800976
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Conical Spring Washer M12
250200005
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#312
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#315
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#320
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#325
LH Front Striker Support
705800898
Superseded by 705801086
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#342
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#344
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#346
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#348
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#349
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#400
RH Front Rigid Door Ass'y
705800983
Superseded by 705801089
|
$2,739.99 | ||
|
Available to order. Add to View Price |
|||
|
#400a
RH Door Wiring Harness
705800882
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#400b
Front Door Window
705800863
|
$369.99 | ||
|
Unavailable |
|||
|
#400c
Rear Door Window
705800864
|
$369.99 | ||
|
Unavailable |
|||
|
#400d
Sliding Cab Window
705800865
|
$199.99 | ||
|
Unavailable |
|||
|
#400f
Retaining Cable
705800896
|
$10.49 | ||
|
Unavailable |
|||
|
#400g
Window Switch
710004979
|
$35.99 | ||
|
Unavailable |
|||
|
#400h
Gasket
705800866
|
$239.99 | ||
|
Unavailable |
|||
|
#400j
Gasket
705800867
|
$109.99 | ||
|
Unavailable |
|||
|
#400k
Door Handle
705017152
|
$15.49 | ||
|
Unavailable |
|||
|
#400m
Handle Spring
705013062
|
$14.99 | ||
|
Unavailable |
|||
|
#400n
Handle Axle
705207440
|
$14.49 | ||
|
Unavailable |
|||
|
#400p
External Retaining Ring
705601875
|
$4.09 | ||
|
Unavailable |
|||
|
#400q
RH Front Door Latch
705800873
Superseded by 705801465
|
$199.97 | ||
|
Available to order. Add to View Price |
|||
|
#400r
Trim
705800993
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#400s
Front Window Guide Extrusion
705800722
|
$224.99 | ||
|
Unavailable |
|||
|
#400t
Rear Window Guide Extrusion
705800723
|
$224.99 | ||
|
Unavailable |
|||
|
#400u
RH Interior Door Panel
705800732
|
|||
|
Unavailable |
|||
|
#400v
RH Lower Door Panel
705800717
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#402
Asphalt Gray, RH Upper Door Panel
705800785
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#402
Oxford Blue Metallic, RH Upper Door Panel
705800811
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#402
Break Up Country, RH Upper Door
Panel
705800921
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#403
Gasket
705800963
|
$34.99 | ||
|
Unavailable |
|||
|
#405
Rod_Latch
705800976
|
$13.99 | ||
|
Unavailable |
|||
|
#410
Conical Spring Washer M12
250200005
|
$3.39 | ||
|
Unavailable |
|||
|
#412
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
Unavailable |
|||
|
#415
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#420
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#425
RH Front Striker Support
705800900
Superseded by 705801097
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#440
Torx Truss M8 X 25
250000874
|
$2.19 | ||
|
Unavailable |
|||
|
#442
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#444
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#446
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#448
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#449
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
Unavailable |
|||
|
#7000
Door Hinge
705800751
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7005
Hinge Pin
705800781
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#7006
Retaining Ring
293370125
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#7010
Lower Hinge
705801025
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7100
Upper Door Hinge
705800752
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7110
Upper Door Hinge
705800755
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
