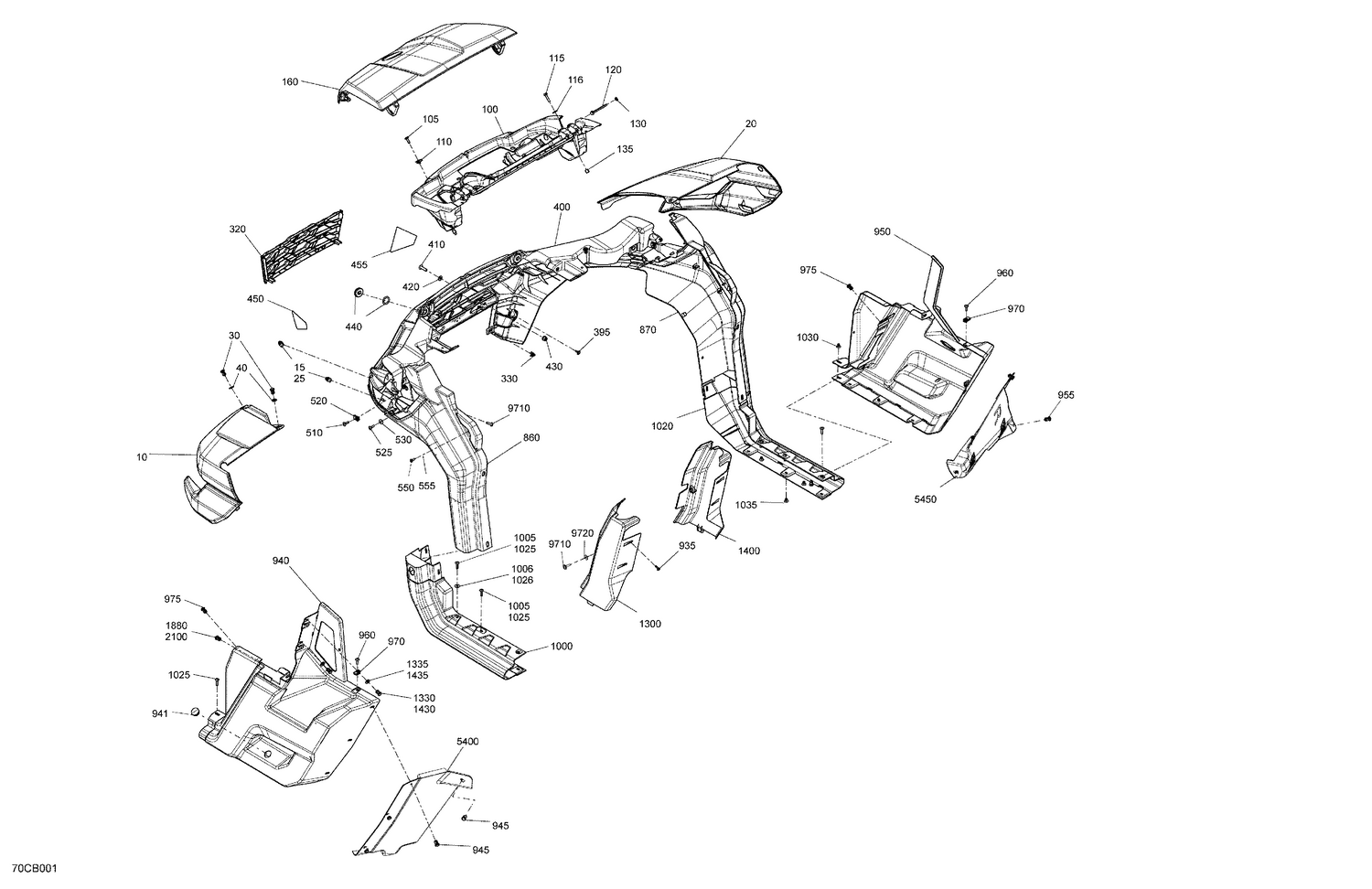

07- Body - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Oxford Blue Metallic, LH Front Fender
705015679
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Oxford Blue Metallic, RH Front Fender
705015680
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#30
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Washer
503192494
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#100
Multi Purpose Support
705013766
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#105
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#115
Hex. Flange Screw M6 X 30
210263050
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#116
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hex. Flange Screw M6 X 75
207667554
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#130
Push Nut
732610072
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#135
Bushing
293900125
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#160
Oxford Blue Metallic, Front Hood
705015669
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Grille
705013590
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#395
Screw M4 X 16
250000725
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#400
Deep Black, Front Fascia
705013591
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#410
Torx Screw M8 X 30
250000886
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#420
Washer
503192494
|
$3.29 | ||
|
Unavailable |
|||
|
#430
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Grommet
705010718
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#450
LH Front Reflector
704905072
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#455
RH Front Reflector
704905073
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#510
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#520
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#525
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#530
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#550
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#555
Flat Washer M5
234051670
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#860
LH Front Lateral Panel
705008152
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#870
RH Front Lateral Panel
705008153
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#935
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#940
Deep Black, LH Rear Body Panel
705013658
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#941
Black, Nylon Cap
414916600
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#945
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#950
Deep Black, RH Rear Body Panel
705013659
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#955
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#960
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#970
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#975
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#1000
Deep Black, LH Central Panel
705008699
Superseded by 705019037
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#1005
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1006
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1020
Deep Black, RH Central Panel
705008700
Superseded by 705019038
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#1025
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#1026
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1030
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#1035
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Unavailable |
|||
|
#1300
LH Rear Cage Cover Kit
715003564
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#1330
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#1335
Washer
503192494
|
$3.29 | ||
|
Unavailable |
|||
|
#1400
RH Rear Cage Cover Kit
715003565
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#1430
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#1435
Washer
503192494
|
$3.29 | ||
|
Unavailable |
|||
|
#1880
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#2100
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#5400
LH Rear Deflector
705016336
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#5450
RH Rear Deflector
705016337
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#9710
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#9720
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
