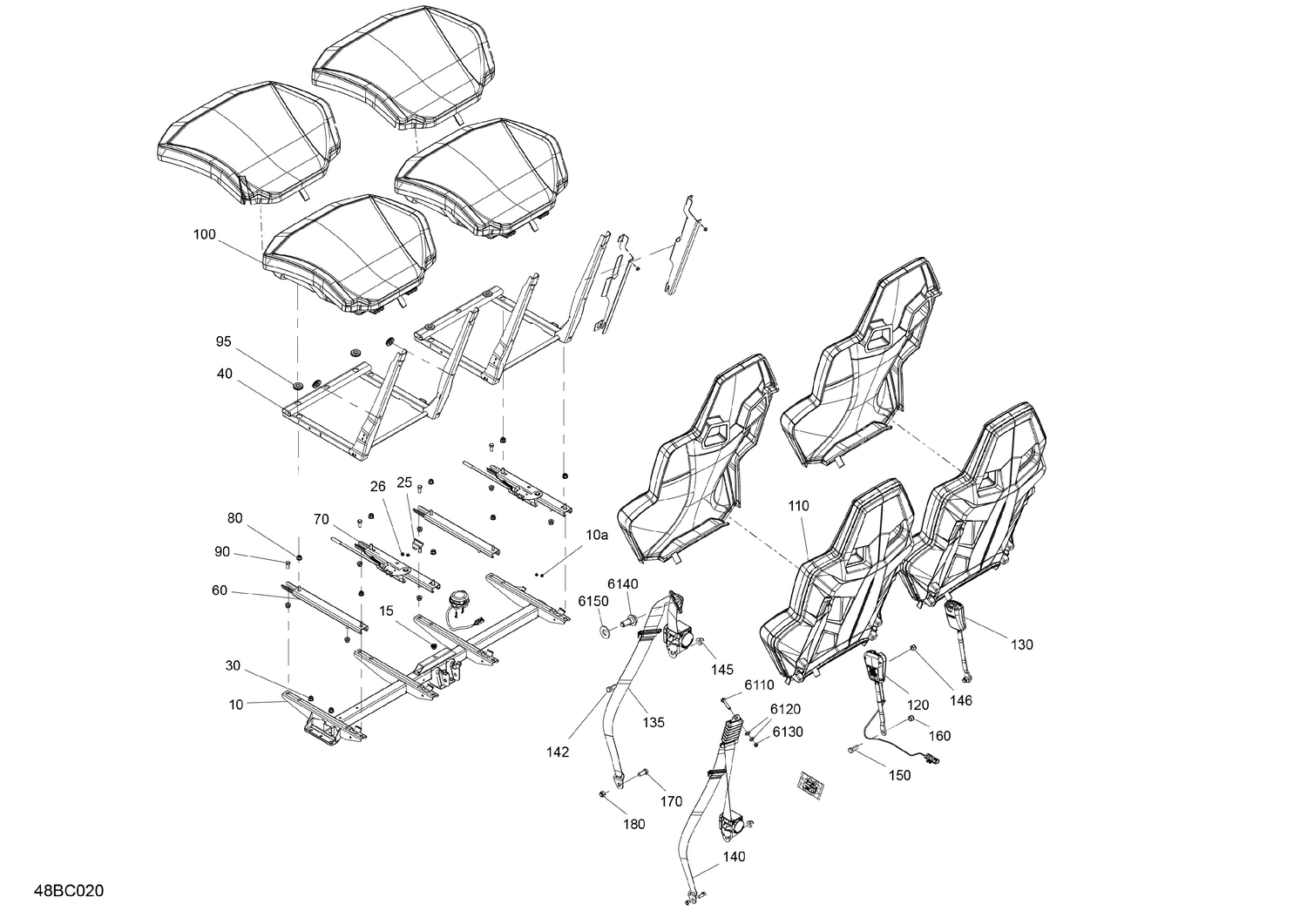

07- Body - Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Seat Member
708003472
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Seat Stopper
708003672
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#30
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Seat Frame
708002423
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
LH Seat Rail
708003314
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
RH Slide
708003316
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#90
Hex. Screw M8 X 20
207182044
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#95
Grommet
517303756
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#100
Cushion Ass'y
708003278
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
LH Seat Base Kit
715005817
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
RH Seat Base Kit
715005819
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Driver Buckle
708002331
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Passenger Buckle
708002329
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#135
Safety Belt
708002835
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Safety Belt
708003378
|
$238.49 | ||
|
Available to order. Add to View Price |
|||
|
#142
Hex. Cap Screw 7/16'' X 1''
250000521
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#145
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#146
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Cap Screw 7/16'' X 1''
250000521
|
$1.99 | ||
|
Unavailable |
|||
|
#160
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
|
#170
Hex. Cap Screw 7/16'' X 1''
250000521
|
$1.99 | ||
|
Unavailable |
|||
|
#180
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
|
#6110
Safet Belt Screw
708002443
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6120
Position Washer
708000891
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#6130
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
|
#6140
Safety Belt screw
708002504
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6150
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
