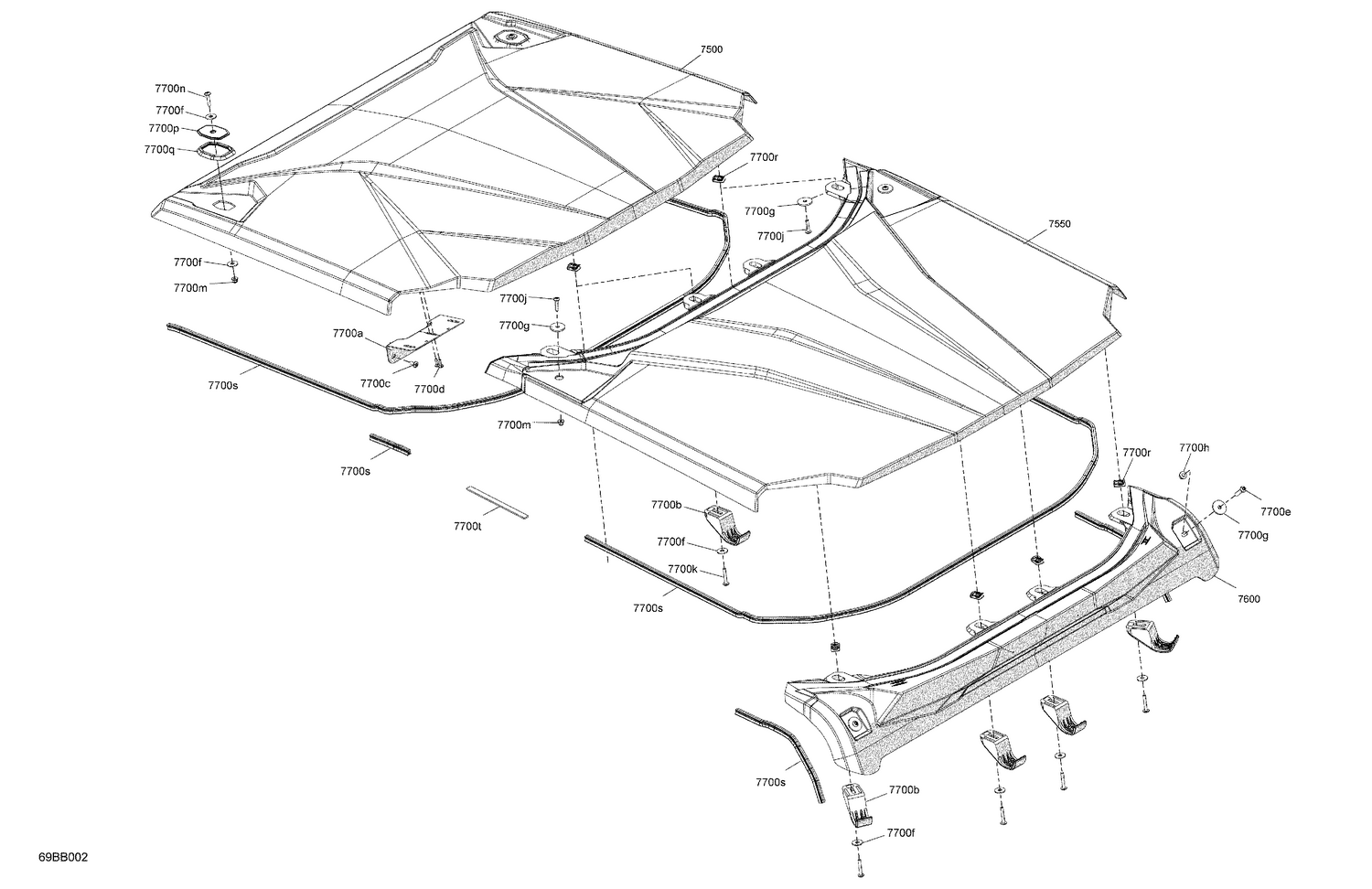

07- Body - Roof Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#7500
Deep Black, Front Rigid Roof
705800679
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#7550
Deep Black, Rear Rigid Roof
705800680
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#7600
Deep Black, Rear Roof Visor
705800681
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7700a
Roof Anchor
705800804
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#7700b
Roof Anchor
705800795
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#7700c
Torx Truss M8 X 16
250000881
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7700d
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#7700e
Hex. Button Head Screw M8 X 1.25 X 35
250000764
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#7700f
Stainless Steel Flat Washer
234082670
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7700g
Flat Washer M8
250200158
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7700h
Hex. Flange Nut M8
233181414
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#7700j
Torx Truss Screw M6 X 30
250000843
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7700k
Torx Truss M/S M6 X 40
705800890
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7700m
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#7700n
Stainless, Torx Screw M6 X 30
250000842
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7700p
Spacer
708303993
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#7700q
Gasket
708304060
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#7700r
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7700s
Outer Seal
219704384
Superseded by 705800054
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7700t
Gasket, Neoprene 2000Mm Long
219704372
Superseded by 219704476
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
