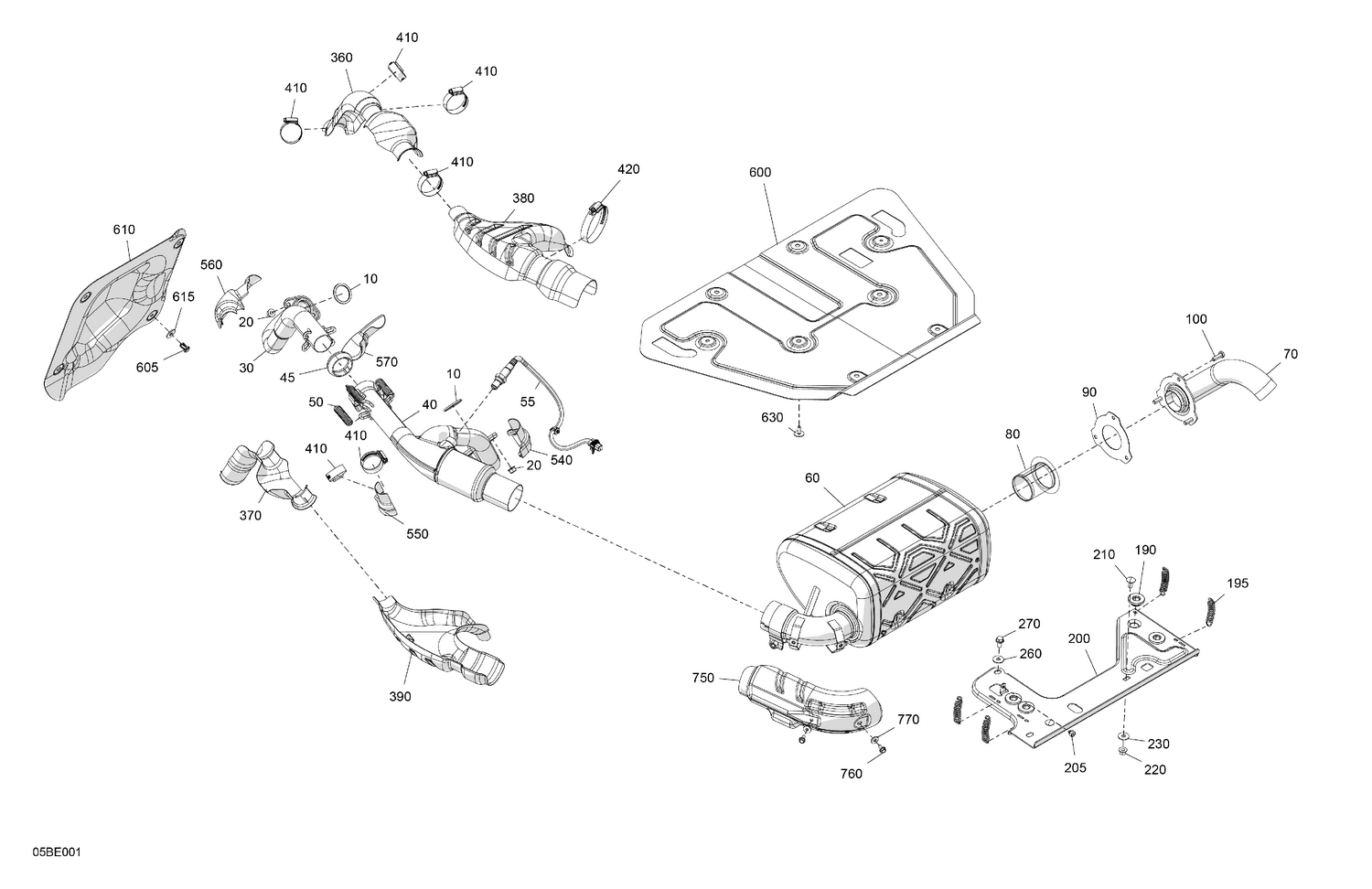

02- Engine - Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Gasket
707600317
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Front Exhaust Pipe
707602039
|
$174.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Rear Exhaust Pipe
707603483
|
$582.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
Exhaust Gasket
707601033
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Spring
707601834
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Oxygen Sensor
707600872
|
$149.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Muffler
707602903
|
$836.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Exhaust Pipe Out
707602905
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Spark Arrester
707602133
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Exhaust Gasket
707603026
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Screw Cap DIN.933
207182546
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#190
Vibration Damper
707602802
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#195
Spring
707601834
|
$6.49 | ||
|
Unavailable |
|||
|
#200
Muffler Support
707603432
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#205
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#210
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#230
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
Unavailable |
|||
|
#270
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#360
Front Heat Shield
707602666
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#370
Rear Heat Shield
707602667
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#380
Upper Heat Shield
707602668
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Lower Heat Shield
707602669
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#410
Murray Gear Clamp
293650305
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#420
Tridon Gear Clamp
293650250
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#540
Upper Rear Heat Shield
707602670
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#550
Lower Rear Heat Shield
707602671
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Front Upper Heat Shield
707602672
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#570
Lower Front Heat Shield
707602673
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#600
Heat Shield
707603354
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#605
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#610
Heat Shield
707602043
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#615
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
Unavailable |
|||
|
#630
Hex Sems Screw M6X20
250001165
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#750
Heat Shield
707602800
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#760
Hex. Flange Screw M6 X 12
207661244
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#770
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
