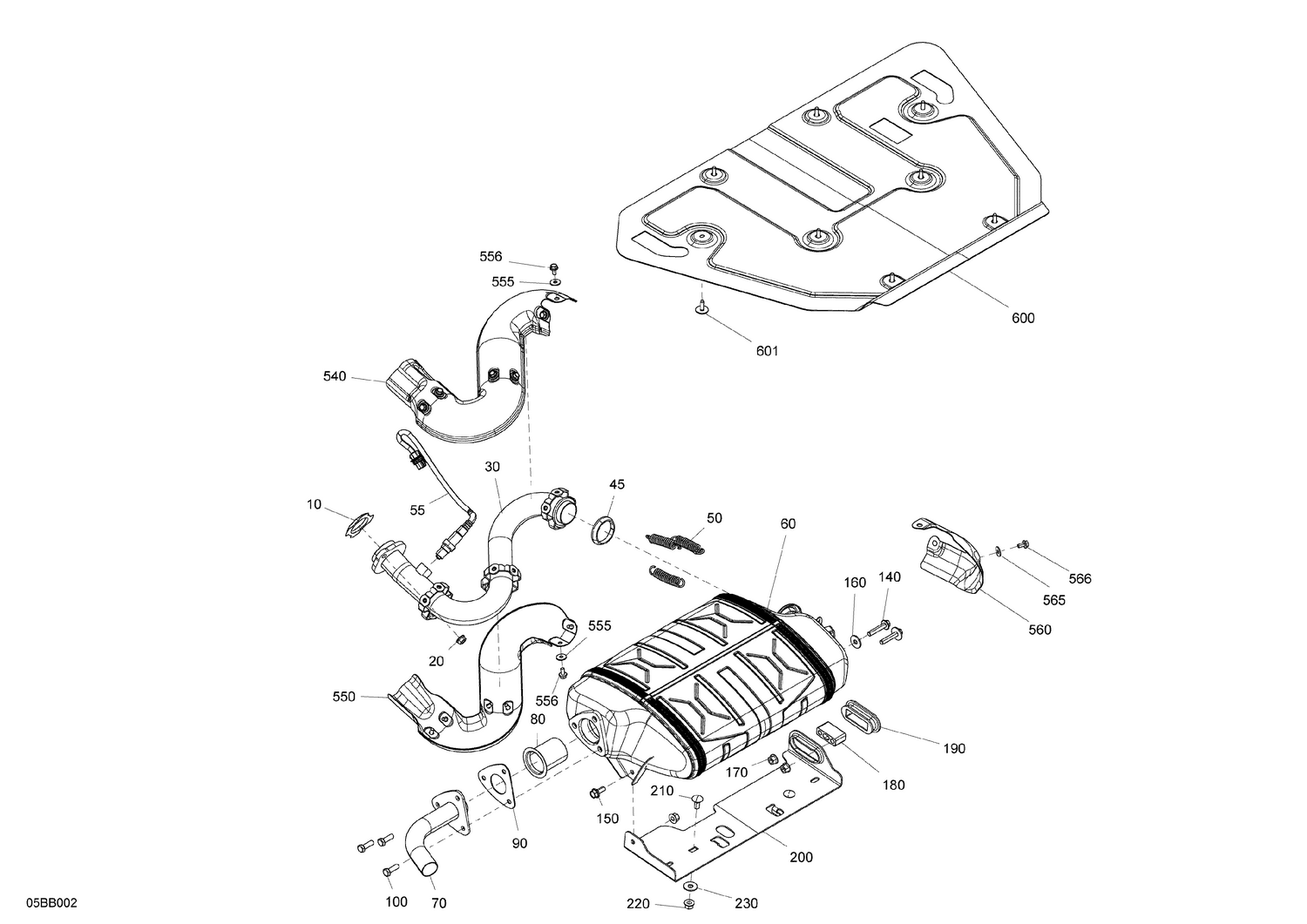

02- Engine - Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Exhaust Gasket
707602697
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Nut M8
233181414
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
Exhaust Pipe Ass'y
707603117
Superseded by 707603670
|
$338.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Exhaust Gasket
707602700
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
|
#50
Spring
707601834
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Oxygen Sensor
707600872
|
$149.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Exhaust Muffle Ass'y
707603073
|
$794.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Tail Pipe
707603212
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Spark Arrester
707601803
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Gasket
707602731
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Screw Cap DIN.933
207182546
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Screw M8 X 40
207684044
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#170
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#180
Muffler Stopper
707603214
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#190
Rubber Bumper
707603330
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#200
Exhaust Support
707603201
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#210
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#230
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
Unavailable |
|||
|
#540
Front Upper Heat Shield
707603060
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#550
Front Lower Heat Shield
707603061
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#555
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#556
Hex. Flange Screw M6 X 12
207661244
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#560
Rear Heat Shield
707603324
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#565
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Unavailable |
|||
|
#566
Hex. Flange Screw M6 X 12
207661244
|
$2.19 | ||
|
Unavailable |
|||
|
#600
Heat Shield
707603354
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#601
Hex Sems Screw M6X20
250001165
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
