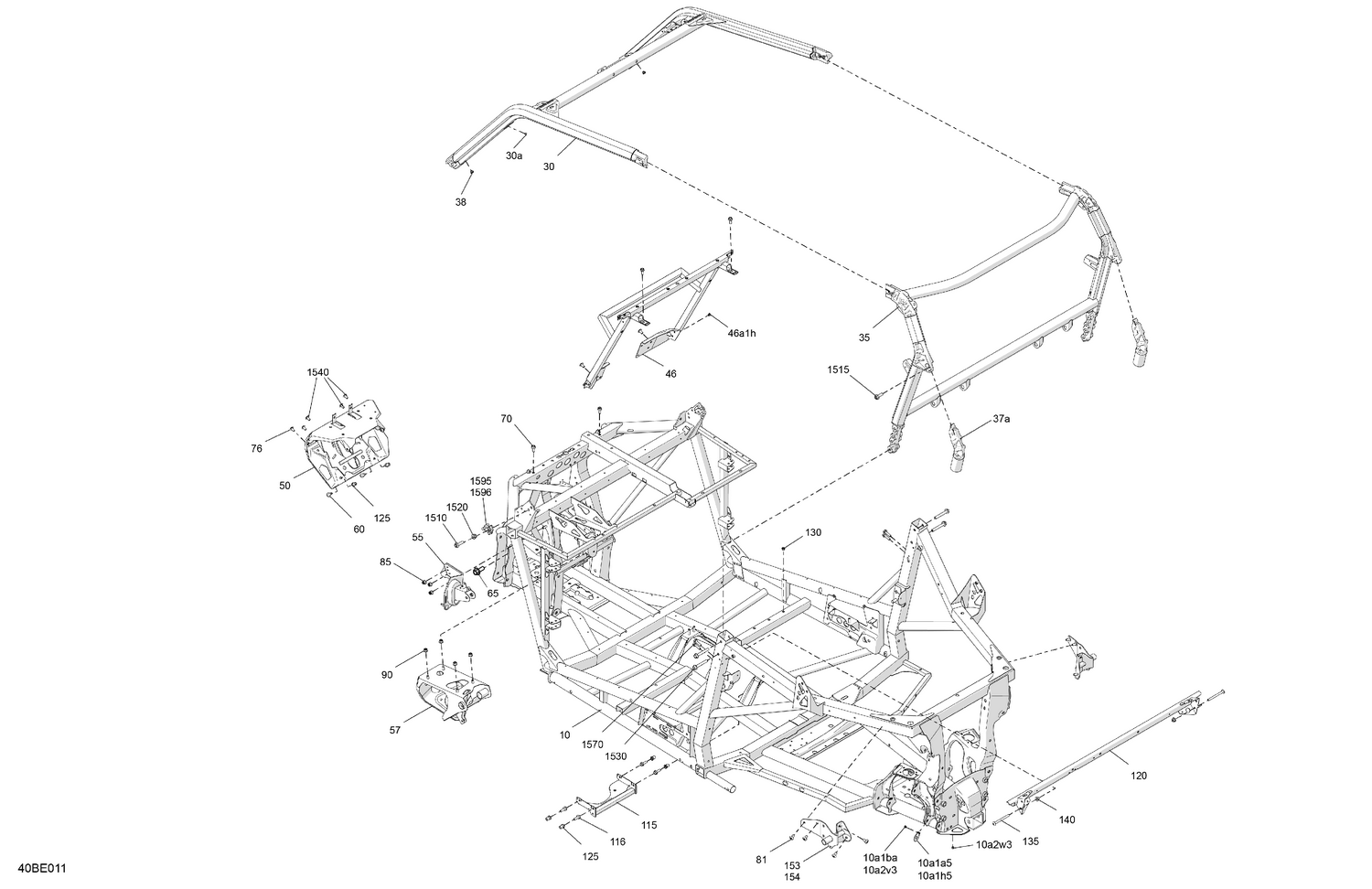

06- Frame - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Black, Frame Kit
715009396
|
$3,629.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a1a5
Shim
705209479
|
$3.29 | ||
|
Unavailable |
|||
|
#10a1h5
Shim
705209479
|
$3.29 | ||
|
Unavailable |
|||
|
#10a1ba
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10a2v3
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#10a2w3
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#30
Deep Black, Front Cage Kit
715009384
|
$619.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#35
Deep Black, Rear Cage Kit
715009370
|
$619.99 | ||
|
Available to order. Add to View Price |
|||
|
#37a
Deep Black, Rear Cage Extension
705211464
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
Front Body Support
705208893
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#46a1h
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#50
Deep Black, Front Bumper
705209043
|
$457.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Brake Support
705206217
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
DPS Support
705206294
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#70
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#76
Torx Truss Screw M8 X 16
250000746
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#81
Torx Truss M/S M8 X 20
250000953
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#85
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#115
Bearing Support
705211563
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#116
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#120
Central Tube
705209434
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#125
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#130
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#135
Torx Truss M8 X 90
250000806
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#153
LH Rear Open Carrier Anchorage
705210342
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#154
RH Rear Open Carrier Anchorage
705210343
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Hex. Flange Screw M10 X 35
250000855
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#1515
Hex. Flange Screw M10 X 30 Scotch G.
207503056
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#1520
Flange Elastic Nut M10
233201466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#1530
Hex. Flange Screw M10 X 70
207607056
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#1540
Torx Truss Screw M8 X 16
250000746
|
$3.49 | ||
|
Unavailable |
|||
|
#1570
Hex. Flange Screw M8 X 30, Scotch Grip
207583044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1595
LH Front Anchorage
705209913
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#1596
RH Front Anchorage
705209914
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
