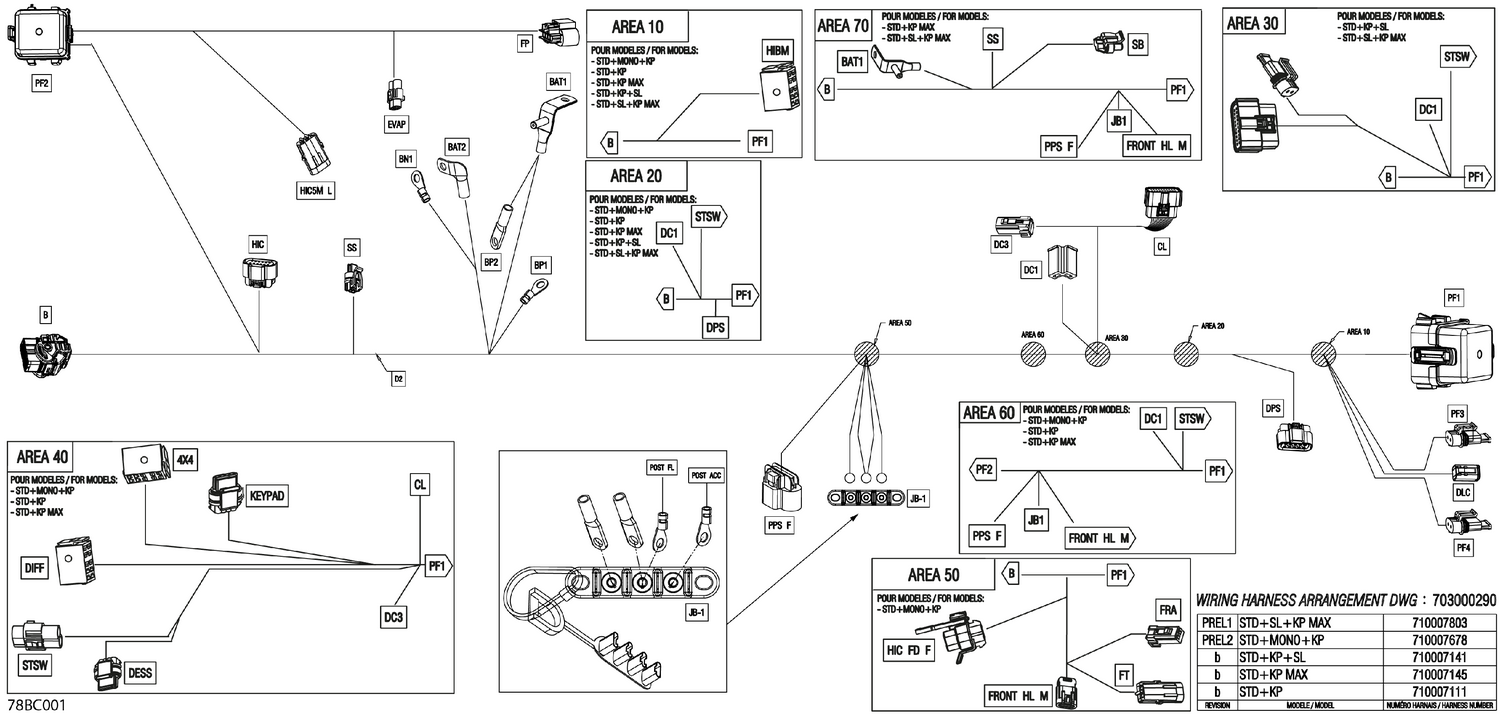

08- Electric - Main Harness - 710007678 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#300
Main Wiring Harness
710007678
|
$879.99 | ||
|
Available to order. Add to View Price |
|||
|
#4X4
Label
710006075
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#4X4
Housing
710002000
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#4X4
Female Terminal
710005491
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#4X4
Terminal
710003047
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#B
Cover, 48 positions
710001591
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#B
Female Terminal Housing, 48 Circuits
710001588
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
Plug
710001592
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#B
Plug
710001593
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#B
Female Terminal
710001589
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#B
Terminal
710001728
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#B
Female Terminal
710001727
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#BP1
Shrink Tubing, 6 mm
515177246
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#BP1
Open Barrel
278000992
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Housing 20 Circuits
278002858
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Sealing Cap
278002860
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Terminal
515178018
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Terminal 22 AWG
515178349
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#D2
Diode
409012700
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC1
Housing
710005373
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#DC1
Female Terminal
710005952
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3 CAP
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Housing
710001161
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Lock
710001162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Wire Seal
710001163
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Female Terminal
710001164
|
$9.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DIFF
Label
710006076
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF
Housing Connector
710002003
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF
Female Terminal
710005491
|
$2.09 | ||
|
Unavailable |
|||
|
#DIFF
Terminal
710003047
|
$3.49 | ||
|
Unavailable |
|||
|
#DLC
Female Housing 6 Circuits
710002706
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Lock
710002705
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Terminal
710005438
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Terminal
710005439
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Housing
710004989
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710005098
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710001222
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Plug
710002075
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Wire Seal
278002186
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Seal
710003153
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Terminal
278002187
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Terminal
710001765
Superseded by 710001873
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#EVAP
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#EVAP
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#FL-1
Fuse Link 21-30AMP
715002536
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#FL-2
Fuse Link 41-50AMP
715002538
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Male Housing, 4 Circuits
278002185
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#FP
Lock
710006214
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Wire Seal
278002186
|
$5.59 | ||
|
Unavailable |
|||
|
#FP
Seal
710003153
|
$0.99 | ||
|
Unavailable |
|||
|
#FP
Female Terminal
278002187
|
$6.49 | ||
|
Unavailable |
|||
|
#FP
Terminal
710001765
Superseded by 710001873
|
$2.19 | ||
|
Unavailable |
|||
|
#FRA
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#FRA
Female Terminal
710003896
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Clip Bracket Connector (edge)
409210100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Housing
515177201
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Lock
710006398
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Seal Wire
710001332
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Seal
710001233
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Terminal
710001223
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#FRONT HL M
Terminal
710001224
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Clip
710000992
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HIBM
Label
710006074
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#HIBM
Housing Connector
710002001
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#HIBM
Terminal
710003047
|
$3.49 | ||
|
Unavailable |
|||
|
#HIBM
Female Terminal
710005491
|
$2.09 | ||
|
Unavailable |
|||
|
#HIC
Female Housing, 12 Circuits
710001930
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#HIC
Lock
710006333
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Cap
710001225
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Seal Wire
710001332
|
$3.39 | ||
|
Unavailable |
|||
|
#HIC
Seal
710001233
|
$3.29 | ||
|
Unavailable |
|||
|
#HIC
Terminal
710001229
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Terminal
710001228
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC FD F
Connector Guard
710007680
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#HIC FD F
Housing
710001132
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#HIC FD F
Lock
710001133
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC FD F
Seal
278001482
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC FD F
Female Terminal
710001134
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#HIC5M L
Female Terminal Housing, 3 Circuits
278000281
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HIC5M L
Wire Seal
278001065
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#HIC5M L
Male Terminal
278000222
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#JB-1
Junction Block Cover
710006610
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#JB-1
Brass Elastic Stop Nut M6
232561200
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#KEYPAD
Housing
710001161
|
$11.49 | ||
|
Unavailable |
|||
|
#KEYPAD
Lock
710001162
|
$3.29 | ||
|
Unavailable |
|||
|
#KEYPAD
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#KEYPAD
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#PF1
Fuse Cover
278003553
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Fuse Base Ass'y
278003448
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Housing Support
710005671
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Seal
293300198
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000218
|
$4.49 | ||
|
Unavailable |
|||
|
#PF1
Wire Seal
710000048
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278001065
|
$7.89 | ||
|
Unavailable |
|||
|
#PF1
Female Terminal
515177177
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
710000918
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
278002578
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#PF1 STD LABEL
Fuse Box Decal
710007046
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F10
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F11
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F12
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F14
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F16
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-R3
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-R8
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-R9
Relay, 50 AMP
515176775
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-SP1
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#PF2
Fuse Cover
278003553
|
$3.79 | ||
|
Unavailable |
|||
|
#PF2
Fuse Box Decal
710006792
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Fuse Base Ass'y
278003448
|
$32.99 | ||
|
Unavailable |
|||
|
#PF2
Wire Seal
278000216
|
$3.29 | ||
|
Unavailable |
|||
|
#PF2
Seal
293300198
|
$2.39 | ||
|
Unavailable |
|||
|
#PF2
Wire Seal
278000218
|
$4.49 | ||
|
Unavailable |
|||
|
#PF2
Wire Seal
278001065
|
$7.89 | ||
|
Unavailable |
|||
|
#PF2
Female Terminal
710000918
|
$7.89 | ||
|
Unavailable |
|||
|
#PF2
Female Terminal
278002578
|
$1.09 | ||
|
Unavailable |
|||
|
#PF2 SP1
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2 SP2
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2 SP3
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F18
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F4
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F5
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F6
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F7
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F8
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF2-F9
Fuse, 25 Amps
710002590
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF2-R1
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Unavailable |
|||
|
#PF2-R2
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#PF3
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF3
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#PF3-F2
Fuse
710001613
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF4
Fuse Holder
278001325
|
$8.99 | ||
|
Unavailable |
|||
|
#PF4
Female Terminal
710000113
|
$7.19 | ||
|
Unavailable |
|||
|
#PF4
Female Terminal
710000357
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF4-F21
Fuse
710001613
|
$8.99 | ||
|
Unavailable |
|||
|
#POST ACC
Shrink Tubing, 6 mm
515177246
|
$1.09 | ||
|
Unavailable |
|||
|
#POST ACC
Open Barrel
278000992
|
$2.29 | ||
|
Unavailable |
|||
|
#POST FL
Shrink Tubing, 6 mm
515177246
|
$1.09 | ||
|
Unavailable |
|||
|
#POST FL
Open Barrel
278000992
|
$2.29 | ||
|
Unavailable |
|||
|
#PPS F
Housing
710001232
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#PPS F
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#PPS F
Seal
710001233
|
$3.29 | ||
|
Unavailable |
|||
|
#PPS F
Terminal
710001229
|
$3.29 | ||
|
Unavailable |
|||
|
#SB
Housing
710002177
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#SB
Lock
710002043
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#SB
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#SB
Female Terminal
710001134
|
$7.89 | ||
|
Unavailable |
|||
|
#SS
Female Housing, 2 Circuits
515177192
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#SS
Lock
710001152
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#SS
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#SS
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#STSW
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#STSW
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
