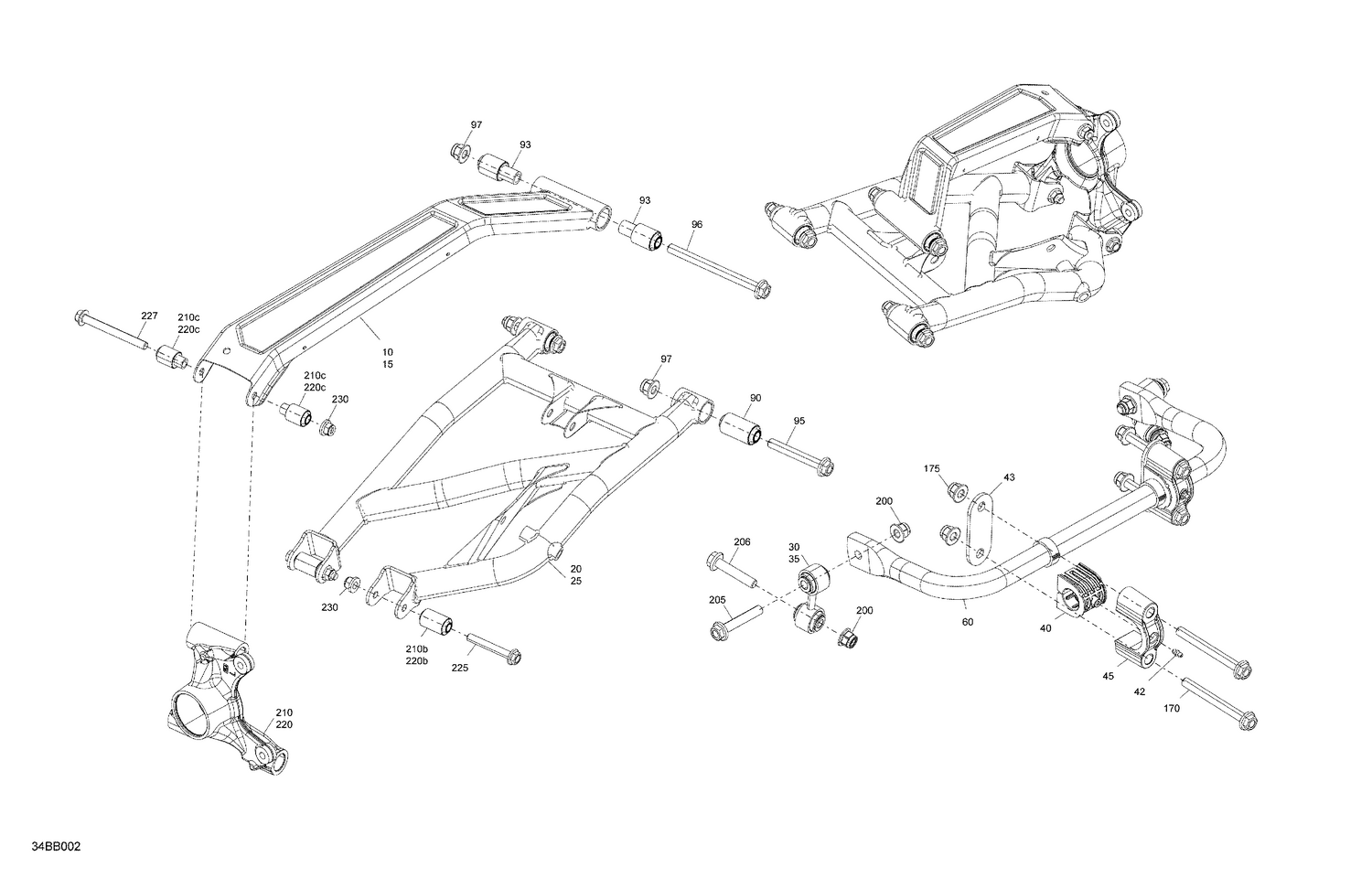

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Orange Crush, LH Upper Suspension Arm Ass'y With Bushing
706004391
Superseded by 715010686
|
$249.99 | ||
|
Unavailable |
|||
|
#15
Orange Crush, RH Upper Suspension Arm Ass'y With Bushing
706004392
Superseded by 715010697
|
$249.99 | ||
|
Unavailable |
|||
|
#20
LH Lower Suspension Arm Ass'y With Bushing
706003727
Superseded by 715010704
|
$249.99 | ||
|
Unavailable |
|||
|
#25
RH Lower Suspension Arm Ass'y With Bushing
706003728
Superseded by 715010711
|
$249.99 | ||
|
Unavailable |
|||
|
#30
Sway Bar Double Link
706003004
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Sway Bar Double Link
706003003
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706004266
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#42
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Plate Support
706002977
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
Clamp
706002970
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
Sway Bar Ass'y
706003475
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Suspension Arm Bushing
706004828
|
$3.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#93
Suspension Arm Bushing
706004829
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#95
Hex. Flange Screw M12X1.75X85
250001168
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#96
Screw Hex Flange DIN.6921 M12X1.75X
250001167
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#97
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#170
Screw Flange M12 X 115
250000860
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#175
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#200
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#205
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#206
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
LH Rear Knuckle Anchorage Ass'y
715008057
Superseded by 715010560
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#210b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#210c
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#220
RH Rear Knuckle Anchorage Ass'y
715008058
Superseded by 715010561
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#220b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#220c
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#225
Hex. Screw M10 X 70, Scotch Grip
207507046
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#227
Hex. Screw M10 X 100, Scotch Grip
230500046
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#230
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
