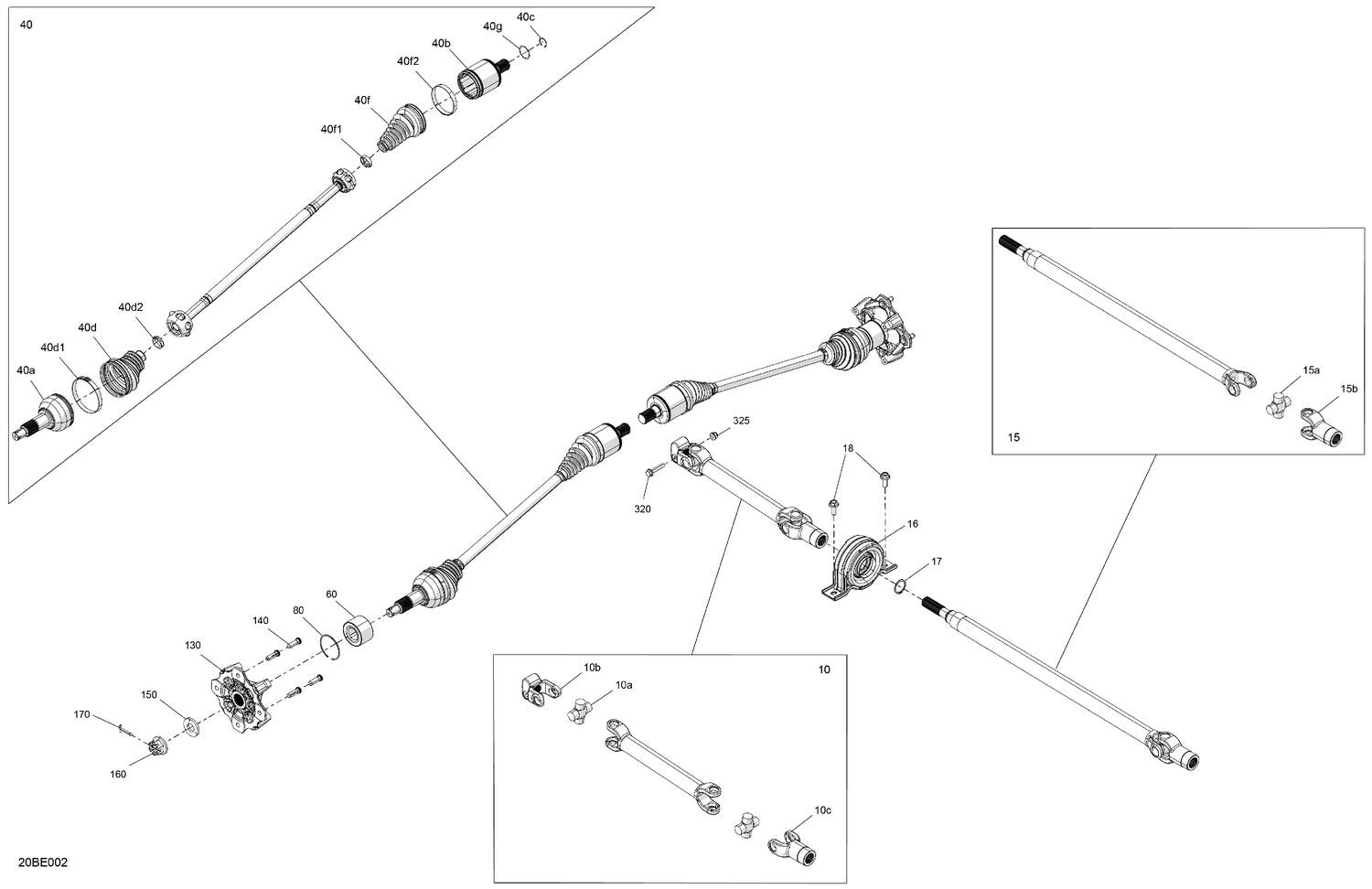

04- Drive - Front - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Drive Axle Ass'y
705403289
|
$254.49 | ||
|
Available to order. Add to View Price |
|||
|
#10a
U-Joint Cross Kit
715900829
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Fixed Yoke
715900400
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Yoke
715900401
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Drive Axle Ass'y
705403290
|
$254.49 | ||
|
Available to order. Add to View Price |
|||
|
#15a
U-Joint Cross Kit
715900829
|
$78.49 | ||
|
Unavailable |
|||
|
#15b
Yoke
715900401
|
$35.99 | ||
|
Unavailable |
|||
|
#16
Ball Bearing Ass'y
705403522
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Snap Ring
293370098
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#40
Performance CV Axle
705402282
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#40a
JOINT_CV EXT - Call your local BRP dealership
715900619
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40b
LH Plunging Joint
715900568
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#40c
Circlip
715900569
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#40d
Boot Kit, Wheel Side
705401354
|
$42.49 | ||
|
Unavailable |
|||
|
#40d1
Oetiker Clamp, Large
715900260
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40d2
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40f
Boot Kit, Différential Side
705401355
|
$42.49 | ||
|
Unavailable |
|||
|
#40f1
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
Unavailable |
|||
|
#40f2
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#40g
O-ring
715900580
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#60
Ball Bearing
293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#130
Wheel Hub
705502338
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#150
Conical Spring Washer M20
250200170
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Castle Nut M20
250100193
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#170
Cotter Pin
250400084
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#320
Hex. Flange Screw M8 X 42
250001050
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#325
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
