2019 Honda CRF150R
Chaparral Motorsports
|
May 23, 2018|
Last Updated: November 9, 2020

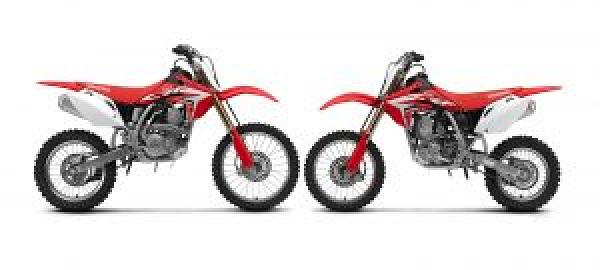

(Press Release) Raced by Amsoil Honda hotshot Hunter Yoder on the amateur national circuit, Honda's smallest motocross machine is powered by a Unicam® four-stroke engine that offers a spread of ample, useable power and torque across the rev range. Suspension duties are handled by Showa®, with a 37mm inverted fork and Pro-Link® rear link system. In addition to the standard version, Honda offers the CRF150RB, which features larger wheels, a taller seat, a longer swingarm, and more rear-suspension travel.
Engine/Drivetrain
| High-performance Unicam cylinder-head design |
| Compact, lightweight engine assembly weighs only 43.6 pounds |
| Twin-sump lubrication system separates the oil supply for the crankshaft, piston and valve train from the clutch and transmission. This ensures a supply of cool oil to the clutch, eliminates potential clutch and transmission material contamination of the engine oil, reduces the amount of circulating oil, and permits the use of a smaller oil pump |
| Cylinder head, piston, camshaft, and carburetor provide power, torque, and rideability throughout the powerband |
| Lightweight, compact, internal auto decompression and handlebar-mounted hot-start system provide easy starting, hot or cold |
| 32mm Keihin FCR carburetor with an accelerator-pump circuit provides accurate fuel metering, resulting in crisp throttle response and good rideability throughout the powerband |
| Suspension settings provide good action through even the toughest of track conditions |
| Exhaust system uses a lightweight stainless-steel header and re-packable aluminum muffler |
| Durable close-ratio five-speed transmission |
Chassis/Suspension
| Front and rear suspension settings unique to the CRF150R deliver ideal bump-absorption characteristics |
| Lightweight, high-tensile steel frame with large-diameter frame tubing and cross-member provides excellent turning performance and straight-line tracking |
| 37mm leading-axle inverted Showa cartridge fork features friction-reducing design to improve compression and rebound control |
| Pro-Link rear suspension |
| Strong, lightweight wheels are durable and minimize unsprung weight |
| Lightweight front and rear disc brakes with high-performance pads offer powerful, precise braking |
| Stout 15mm front and 17mm rear axles incorporate a surface-treatment for added strength and durability |
| Large-capacity airbox and reusable two-stage foam air filter |
| Lightweight plastic body components (radiator shroud, side covers, rear fender, seat base, fuel tank, front fender, and front number plate) offer a slim, aggressive style |
| High-quality Dunlop tires |
| HRC works-type rear-brake system integrates the rear master cylinder and fluid reservoir, eliminating the separate rear master-cylinder reservoir and hose |
| Model | CRF150R | CRF150RB |
|---|---|---|
| ENGINE | ||
| Type | 147.7cc water-cooled single-cylinder four-stroke | |
| Valve Train | Unicam®, four-valve; 26mm intake, steel; 22.5mm exhaust, steel | |
| Bore x Stroke | 66.0mm x 43.7mm | |
| Compression Ratio | 11.7:1 | |
| Induction | Keihin 32mm flat-slide carburetor w/ Throttle Position Sensor (TPS | |
| Ignition | CD w/ electronic advance | |
| Starter | Kick | |
| Driveline | #420 chain; 15T/50T | #420 chain; 15T/56T |
| Transmission | Close-ratio 5-speed manual | |
| Clutch | Multiplate wet | |
| SUSPENSION | ||
| Front | 37mm fully adjustable leading-axle inverted conventional Showa cartridge fork; 10.8 in. travel | |
| Rear | Pro-Link fully adjustable Showa single shock; 10.7 in. travel | Pro-Link fully adjustable Showa single shock; 11.1 in. travel |
| BRAKES | ||
| Front | Single 220mm disc | |
| Rear | Single 190mm disc | |
| TIRES | ||
| Front | 70/100-17 | 70/100-19 |
| Rear | 90/100-14 | 90/100-16 |
| MEASUREMENTS | ||
| Rake (castor angle) | 27°02' | 27°48' |
| Trail | 78mm (3.1 in.) | 96mm (3.8 in.) |
| Length | 72.1 in. | 74.8 in. |
| Width | 30.3 in. | |
| Height | 44.6 in. | 46.1 in. |
| Seat Height | 32.8 in. | 34.1 in. |
| Ground Clearance | 11.9 in. | 13.2 in. |
| Wheelbase | 49.6 in. | 50.6 in. |
| Fuel Capacity | 1.1 gal. | |
| Curb Weight* | 185 lbs. | 187 lbs. |
| OTHER | ||
| Colors | Red | |
