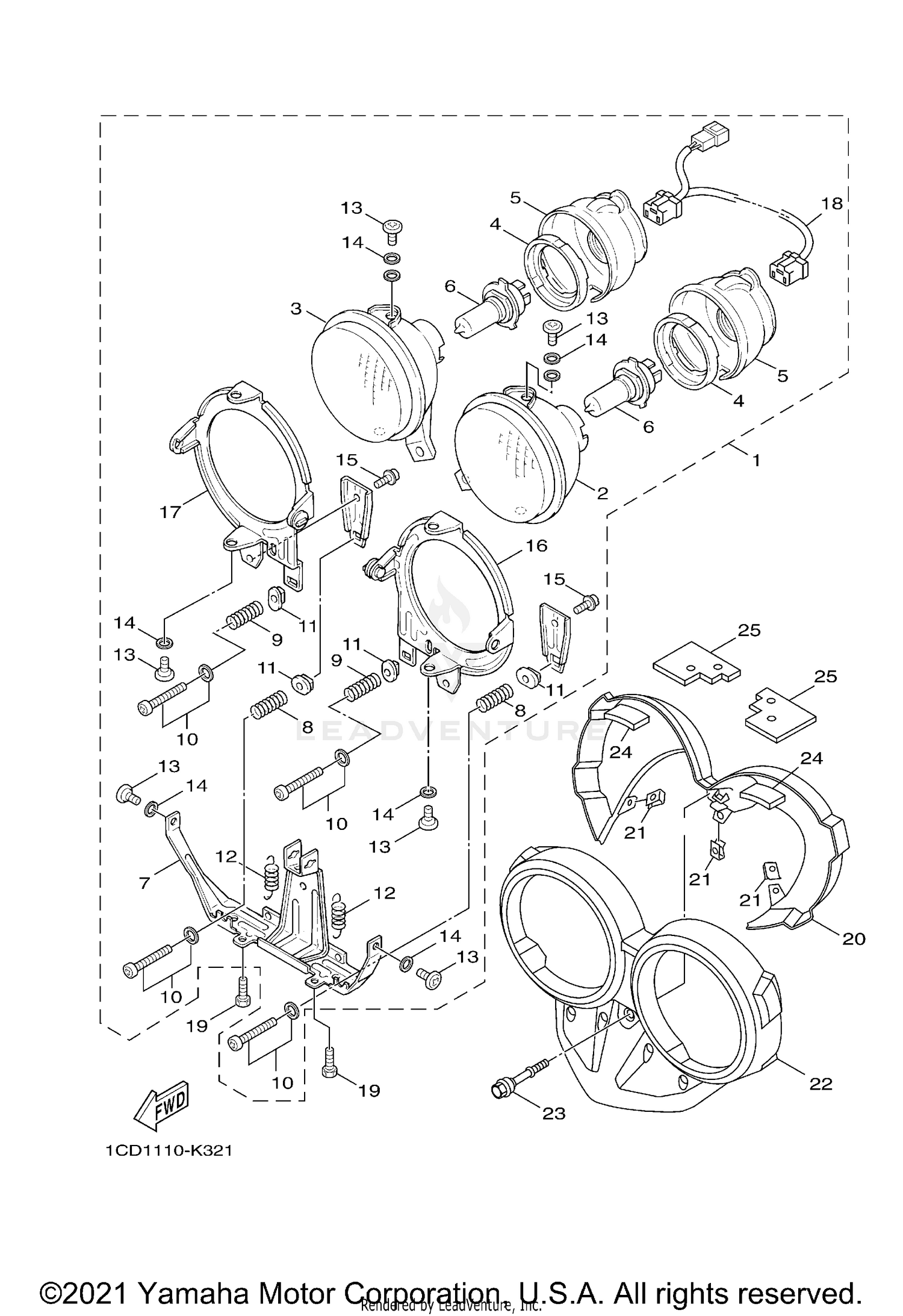

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT COMP.
1CD-H430A-00-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT UNIT ASSY
5PJ-H4310-10-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HEADLIGHT UNIT ASSY
5PJ-H4310-20-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
5PJ-H4397-10-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
5PJ-H4378-10-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, HEADLIGHT
5PJ-H4314-00-00
Superseded by 1ML-84314-00-XX
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, SETTING
5PJ-H431R-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
5PJ-H4332-00-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SCREW
5PJ-H4332-00-00
|
$1.10 | ||
|
Unavailable |
|||
|
#10
SCREW, RIM ADJUSTING
5PJ-H4331-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
5PJ-H4317-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
5PJ-H4335-00-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, RIM FITTING
5PJ-H4325-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
5PJ-H4344-00-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
5PJ-H4526-00-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, HEADLIGHT 1
5PJ-H4318-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, HEADLIGHT 2
5PJ-H4319-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CORD ASSY
1CD-H4312-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-06821-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, HEADLIGHT
1CD-H4144-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPRING
90183-05816-00
Superseded by 90183-05827-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD, HEADLIGHT
1CD-H4169-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
5PJ-H3546-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, HEADLIGHT 1
4VP-H4366-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER 3
4VP-H4368-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
