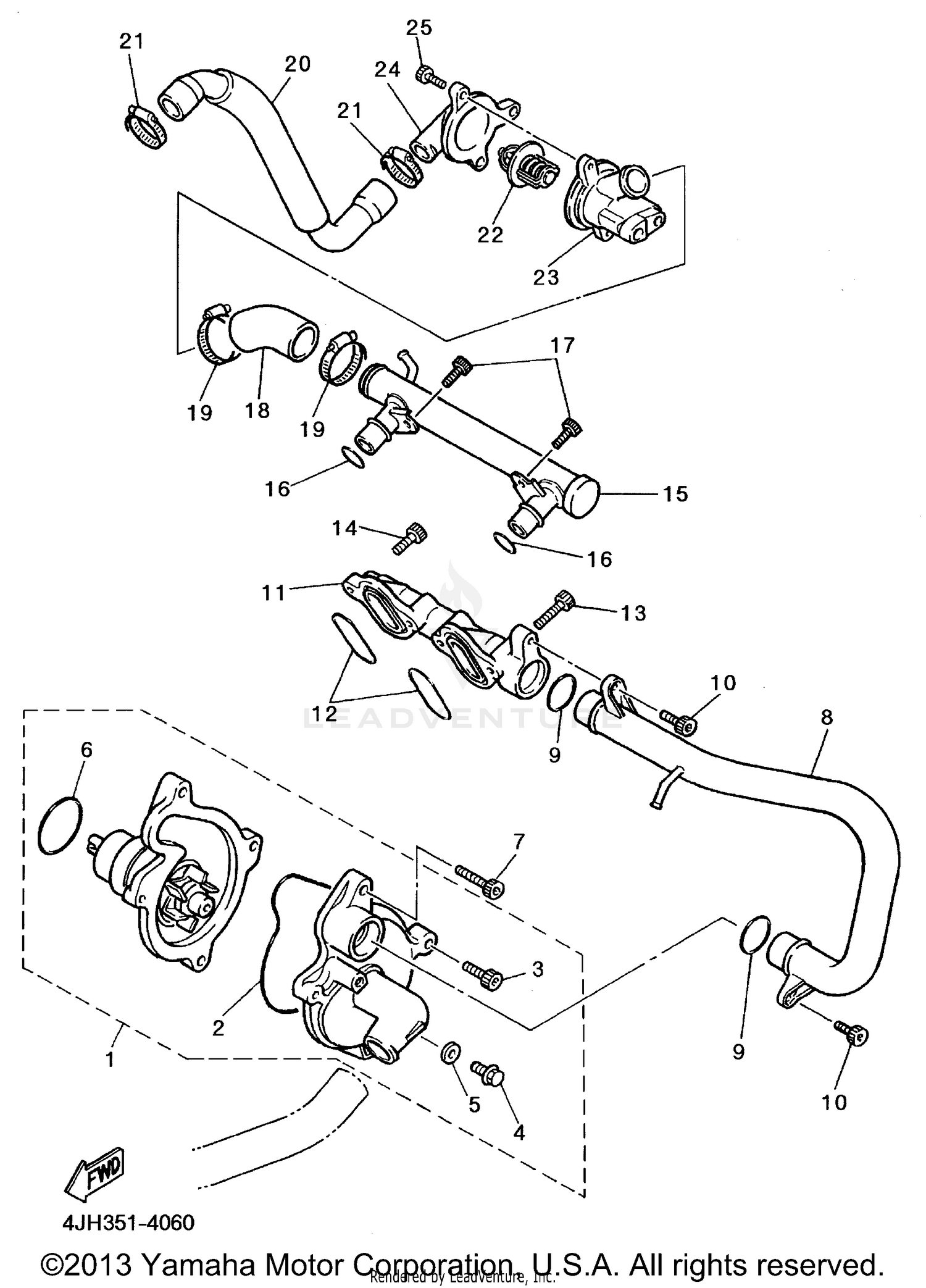

1996 Yamaha YZF 600R WATER PUMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
3TJ-Y1242-00-00
|
$405.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
1WG-12439-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT
91317-06025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06012-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-33133-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-06035-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIPE 1
4JH-12481-00-00
|
$70.91 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-21190-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT
1WG-12446-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-17746-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
91317-06040-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91317-06025-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
PIPE 2
4JH-12482-00-00
|
$120.35 | ||
|
Unavailable |
|||
|
#16
O-RING
93210-15566-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
91317-06010-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE 1
3TJ-12576-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE 2
4JH-12577-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#21
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$15.99 | ||
|
Unavailable |
|||
|
#22
THERMOSTAT ASSY
4JH-12410-00-00
Superseded by 4JH-12410-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#23
HOUSING, THERMOSTAT
3TJ-12417-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, THERMOSTAT
3TJ-12413-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#25
BOLT
91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
