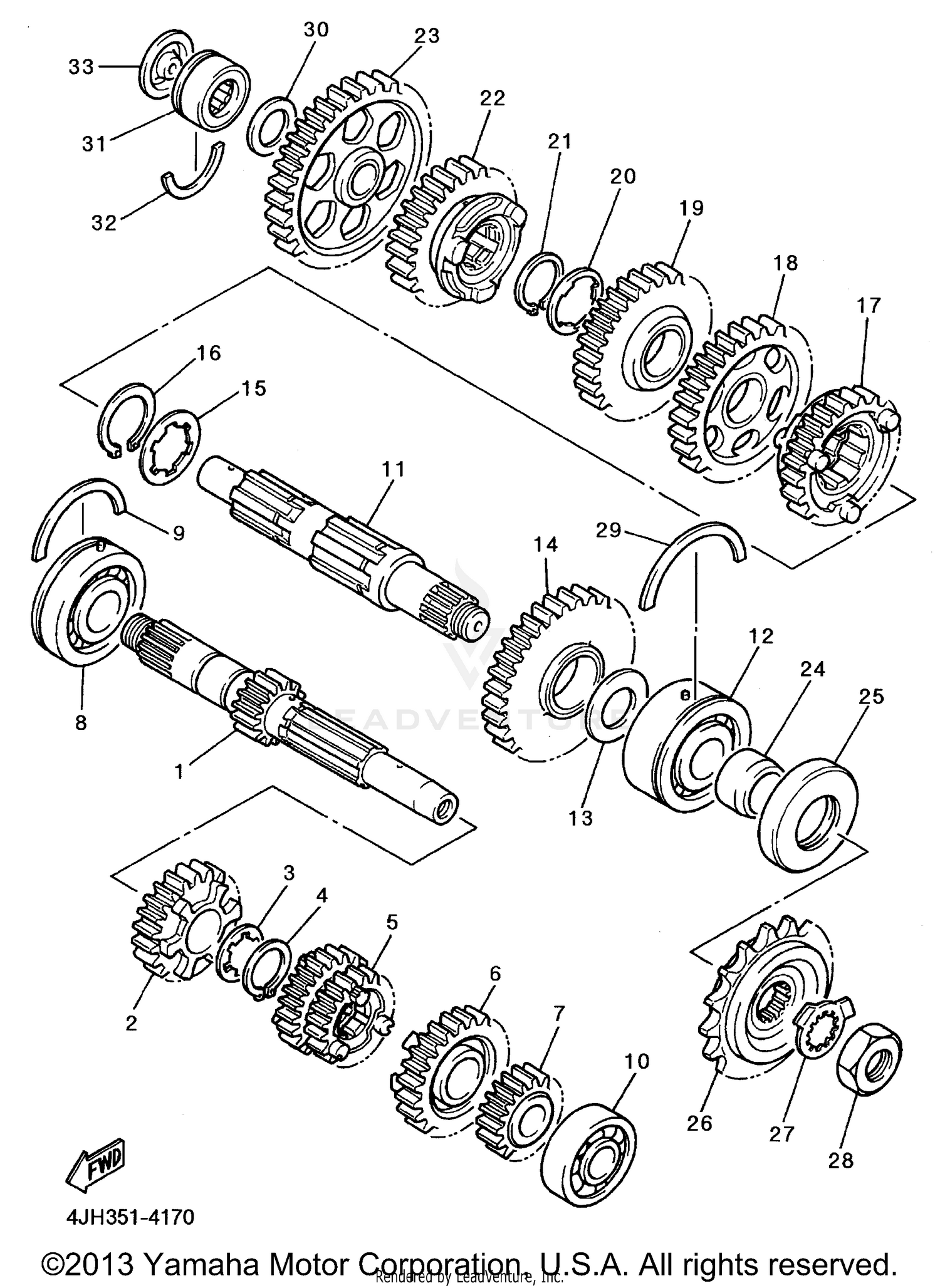

1996 Yamaha YZF 600R TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (13T)
4JH-17411-00-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 5TH PINION (21T)
4JH-17151-00-00
Superseded by 4TV-17151-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#3
WASHER
90209-22191-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD/4TH PINION (22T/21T)
4JH-17131-00-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH PINION (27T)
4JH-17161-00-00
Superseded by 4TV-17161-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 2ND PINION (19T)
4JH-17121-00-00
Superseded by 4TV-17121-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-37208-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93440-54152-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20464-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
AXLE, DRIVE
4JH-17421-00-00
|
$215.99 | ||
|
Unavailable |
|||
|
#12
BEARING
93305-20509-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-25291-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GEAR, 2ND WHEEL (37T)
4JH-17221-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
90209-27336-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93440-30077-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GEAR, 6TH WHEEL (29T)
4JH-17261-00-00
Superseded by 4TV-17261-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 3RD WHEEL (34T)
4JH-17231-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 4TH WHEEL (28T)
4JH-17241-00-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
90209-22191-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
GEAR, 5TH WHEEL (25T)
4JH-17251-00-00
Superseded by 4TV-17251-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 1ST WHEEL (37T)
4JH-17211-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-2504A-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-35368-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, DRIVE (15T)
3HE-17460-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, LOCK
90179-18020-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CIRCLIP
93440-52014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE (T=1.0)
90201-20276-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BEARING, CYL.#11
93311-42045-00
|
$29.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP 2
278-17425-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NOZZLE
4G0-17433-01-00
|
$6.99 | ||
|
Unavailable |
|||
