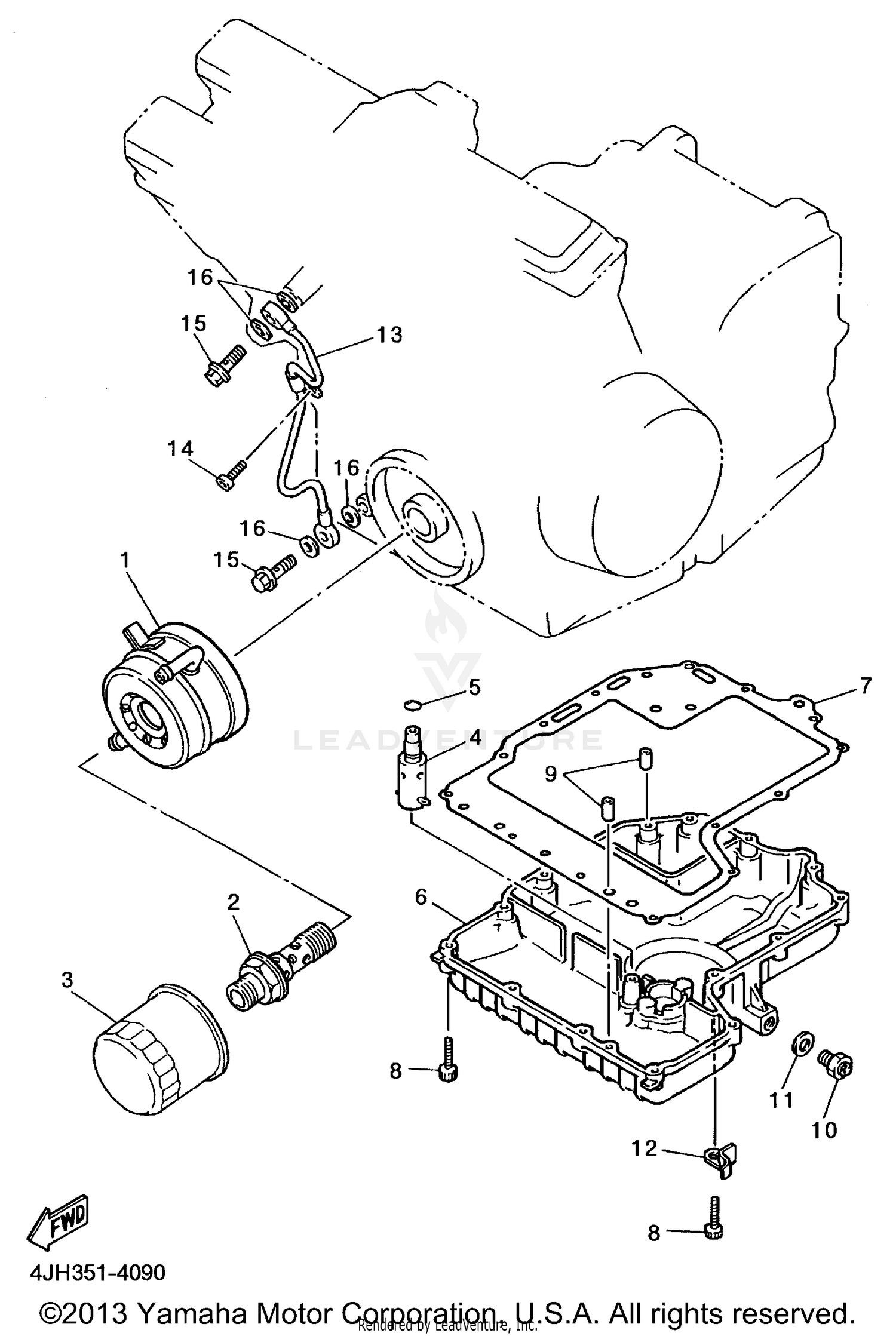

1996 Yamaha YZF 600R OIL COOLER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL COOLER ASY
4JH-13470-01-00
Superseded by 4JH-13470-02-00
|
$336.99 | ||
|
Unavailable |
|||
|
#2
BOLT, UNION
90401-20158-00
|
$15.49 | ||
|
Unavailable |
|||
|
#3
ELEMENT ASSY, OIL CL
3FV-13440-00-00
Superseded by 3FV-13440-30-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RELIEF VALVE ASSY
11H-13490-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-10096-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, STRAINER
4JH-13417-00-00
Superseded by 4YR-13417-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, STRAINER COVER
3HE-13414-10-00
Superseded by 4TV-13414-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91317-06025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET
214-11198-01-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP
90465-10306-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, DELIVERY 1
3HE-13161-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91317-06012-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, UNION
90401-10106-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-10171-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
