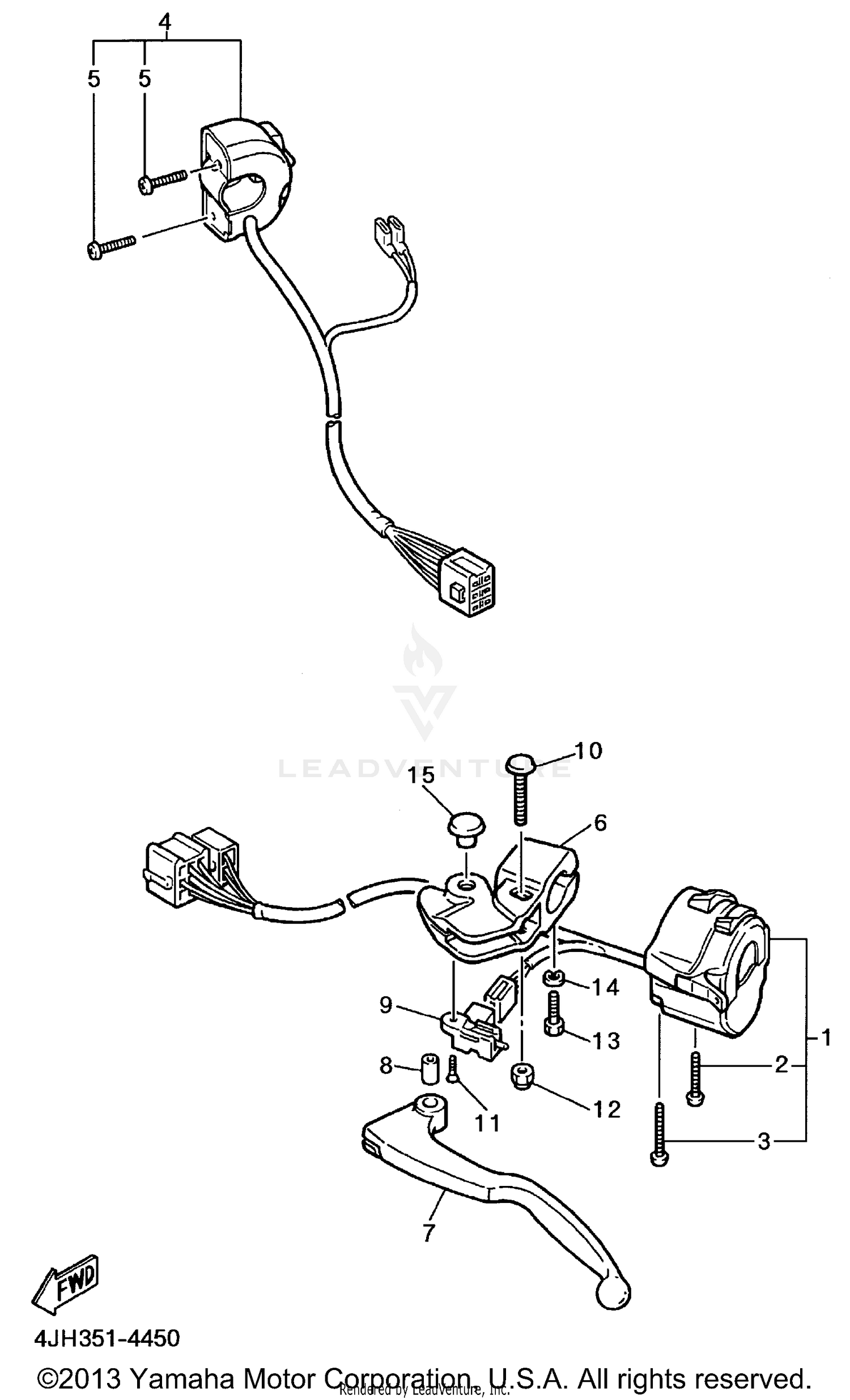

1996 Yamaha YZF 600R HANDLE SWITCH LEVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, HANDLE 3
4DU-83973-00-00
Superseded by 4AH-83973-00-00
|
$310.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98507-05030-00
Superseded by 98517-05030-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98506-05040-00
Superseded by 98507-05040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH, HANDLE 2
4FM-83975-00-00
Superseded by 4UN-83975-01-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-05018-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
HOLDER, LEVER 1
29L-82911-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER 1
3LN-83912-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, LEVER 1
31A-83913-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH
31A-82917-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, LEVER
31A-83945-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, FLAT HEAD
98707-03008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U
95617-06100-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92907-06100-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLUG
90338-09012-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
