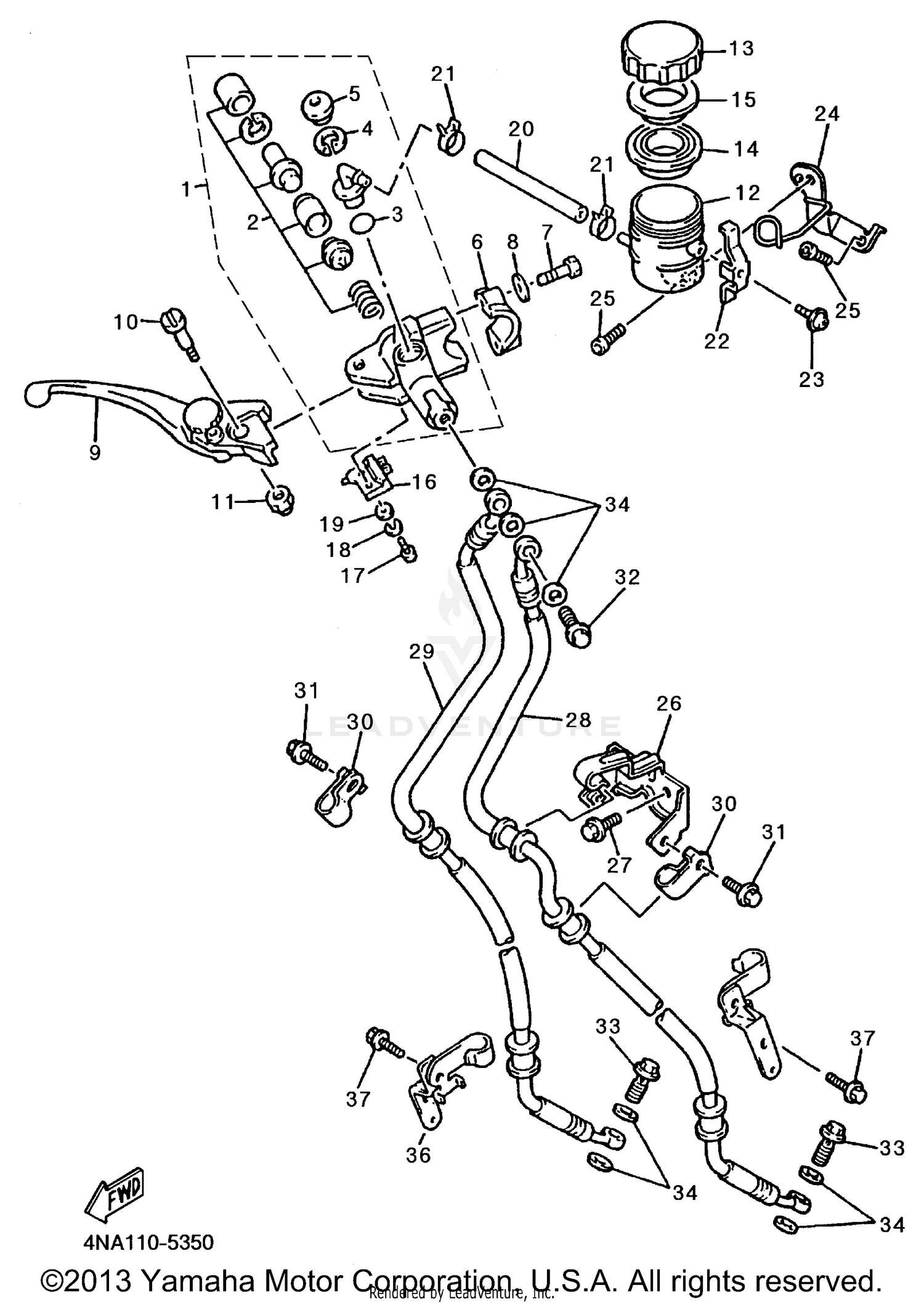

1996 Yamaha YZF 600R FRONT MASTER CYLINDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSEMBLY
3GM-W2587-50-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
3GM-W0041-50-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
3FV-2589A-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97017-06025-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
LEVER 2
3TJ-83922-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, LEVER
3FV-2589F-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95617-06100-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
TANK, RESERVOIR
3FV-25894-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVOIR
3GM-25852-50-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, DIAPHRAGM
3FV-25854-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, DIAPHRAGM
2J2-25855-50-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
FRONT STOP SWITCH ASSY
3FV-83980-00-00
Superseded by 4HM-83980-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW,PANHEAD
98517-04012-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-04100-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
3GM-2585F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, PIPE 1
3PA-24356-00-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOLDER
3FV-2589G-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
3GM-2589H-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY
4JH-26292-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#25
BOLT
91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, HORN
4JH-2134K-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95817-06012-00
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HOSE, BRAKE 1
4JH-25872-00-00
|
$74.47 | ||
|
Unavailable |
|||
|
#29
HOSE, BRAKE 2
4JH-25873-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#30
CLAMP
90461-10132-00
Superseded by 90461-08031-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95817-06012-00
|
$1.20 | ||
|
Unavailable |
|||
|
#32
BOLT, UNION
90401-10160-00
Superseded by 90401-10038-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, UNION
90401-10159-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, BRAKE HOSE 1
4NA-25875-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#36
HOLDER, BRAKE HOSE 2
4NA-25876-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE
95817-06012-00
|
$1.20 | ||
|
Unavailable |
|||
